What it is

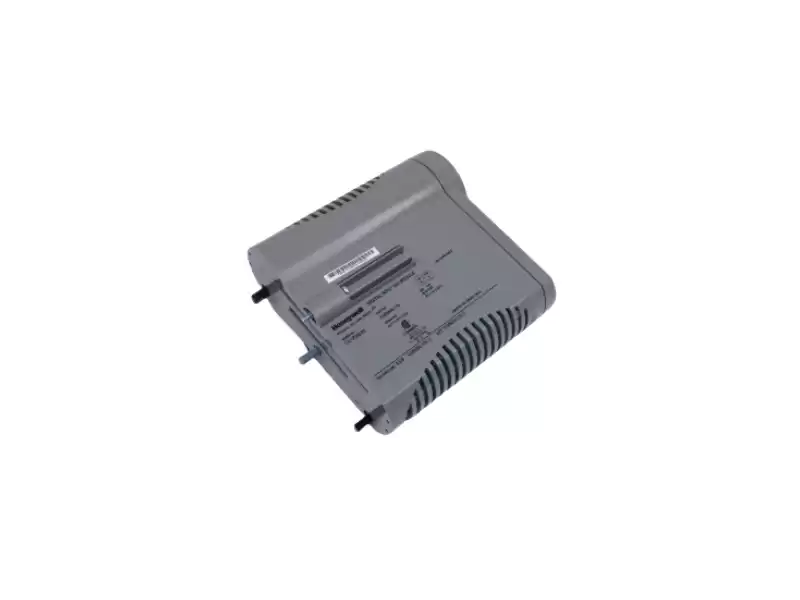

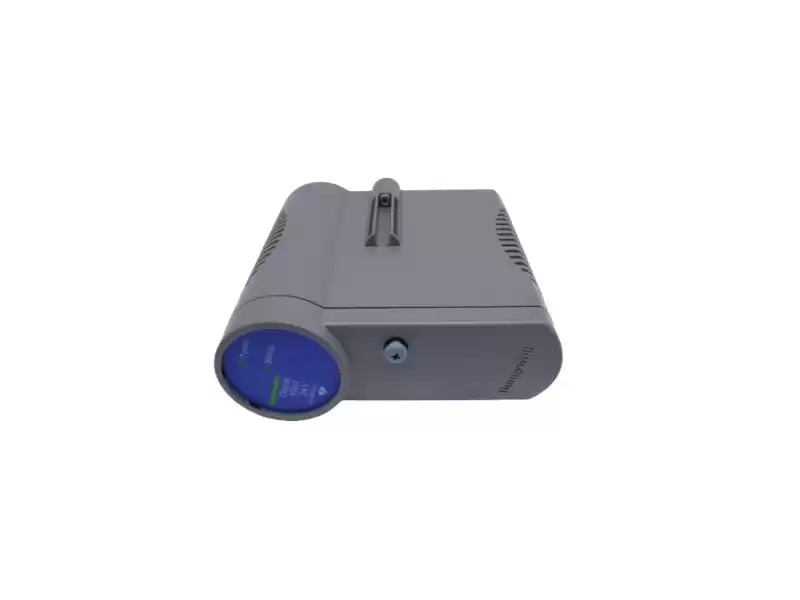

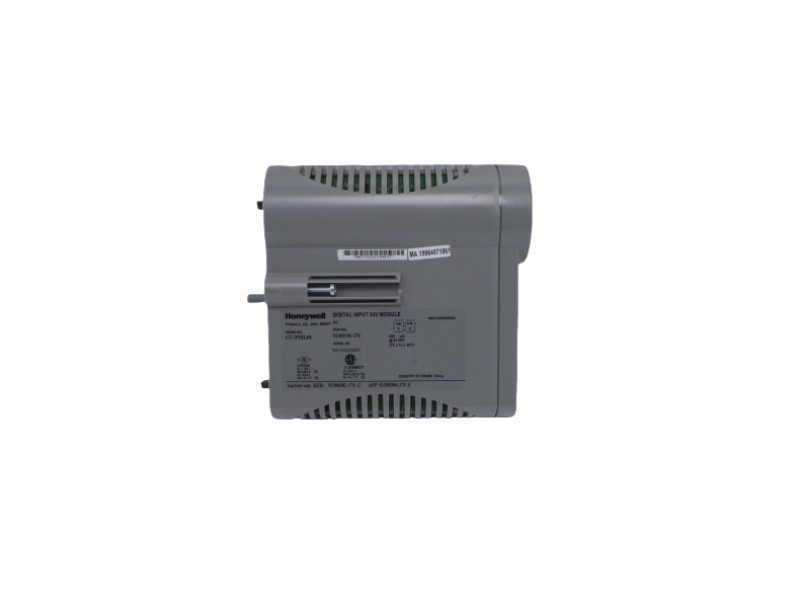

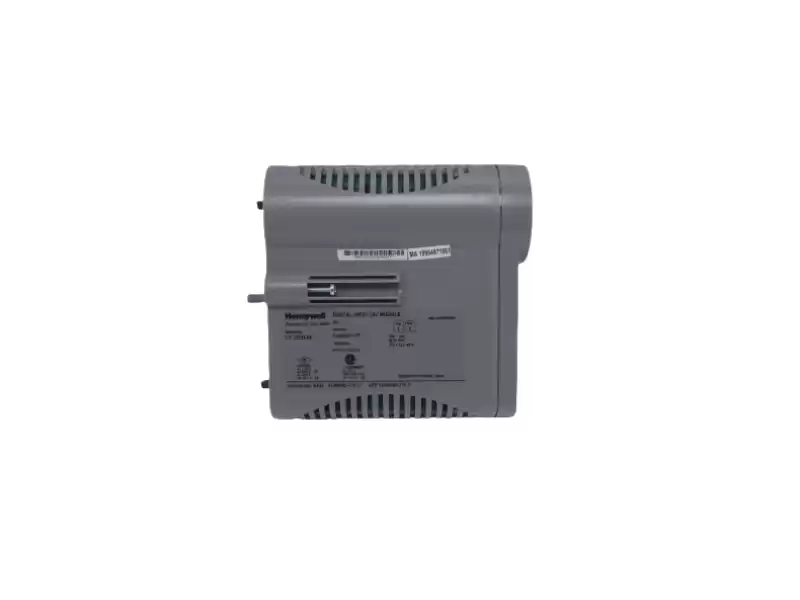

Model CC-PDIL01, order number 51405040-176, is a 24VDC digital input module in the Honeywell Series C I/O architecture. This module provides
32 channels of digital input for acquiring discrete signals from field switches/sensors. It features open-wire detection, on-board excitation power, optional
redundancy, and excellent electrical isolation.
Key Specifications
|
Mechanical / Environmental
|
Value
|
|
Module Model/Order Number:
|
CC-PDIL01 / 51405040-176
|
|
Input Type:
|
24VDC Digital Input (Low Voltage)
|
|
Number of Channels:
|
32-Channel Input
|
|
Input Voltage Range:
|
18～30VDC (Typical)
|
|
Input Impedance:
|
~4.2kΩ
|
|
On/Off Threshold:
|
On ≥13V DC or ≥3mA; Off ≤5V DC or ≤1.2mA
|
|
Isolation Specification:
|
1500VAC RMS or ±1500VDC
|
Same brand spot inventory
|
Relay Output Module
|
K-ORC161
|
|
Digital Output Module
|
TK-ODD321
|
|
Analog Output Module
|
TK-OAV061
|
|
High-Level Analog Output Module
|
TK-HAO081
|
|
FTE Bridge Module
|
TK-FTEB01 51309512-175
|
|
Communication Interface Module
|
TK-FFIF01 51403420-275
|
|
Digital Input Module
|
TK-PPD011 51309241-175
|
|
Digital Relay Output Module
|
TK-PRR021 51309288-475
|
|
Digital Input/Output Module
|
TK-PRS021
|
Product Advantages
High Channel Density: 32-channel input design, suitable for discrete input scenarios with a large number of signal points.
Standard 24VDC Input: Complies with the low-voltage discrete signal standards of most field control systems, facilitating integration.
Strong Isolation and Interference Immunity: 1500VAC/±1500V isolation helps improve system stability.
Compatible with Honeywell Series C Architecture: Suitable for ExperionPKS C300 systems, facilitating upgrades or expansions of older systems.
Open-Wire Detection Support: Ensures the integrity of input lines, enhancing system diagnostic capabilities to some extent.
All PLC Autocontroller products are brand new and 100% original. Please contact us for pricing.
