1.Product Snapshot

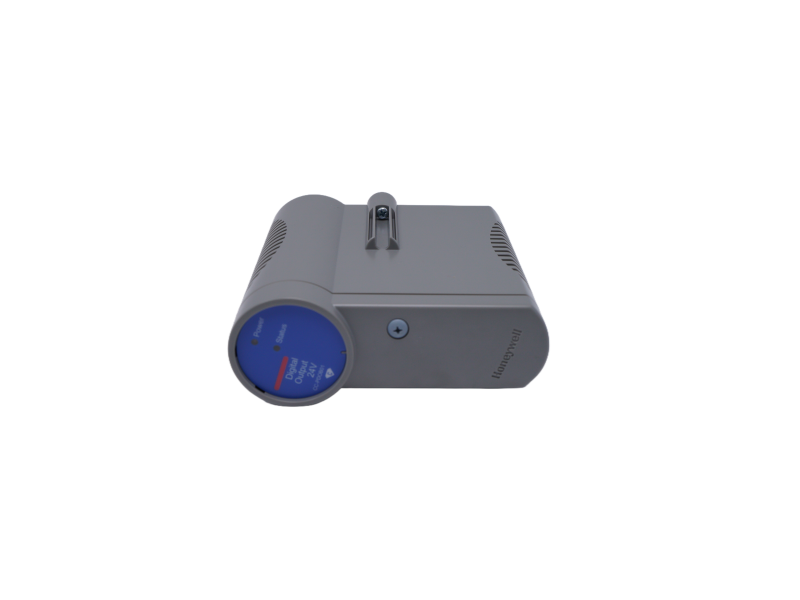

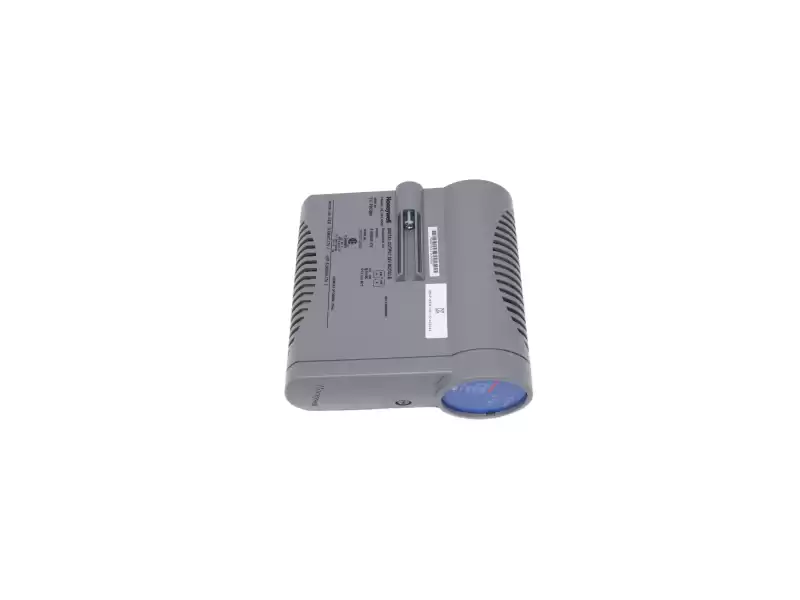

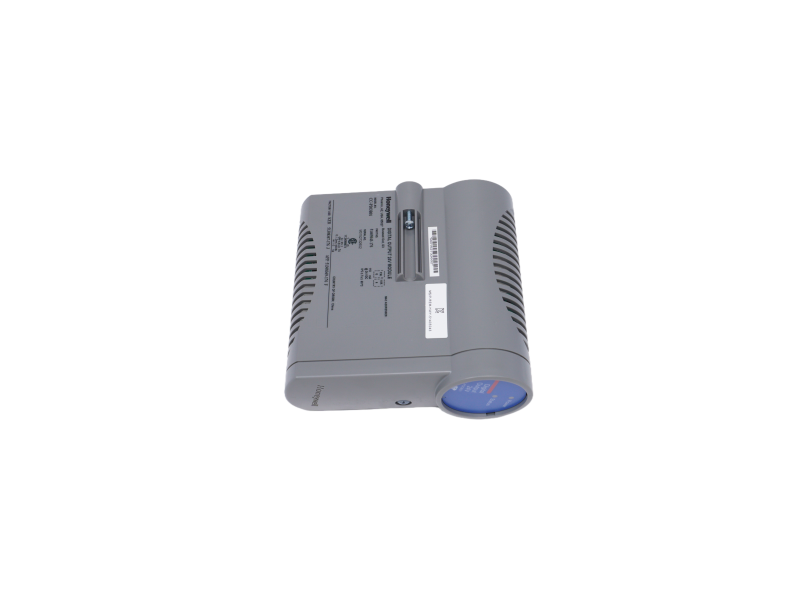

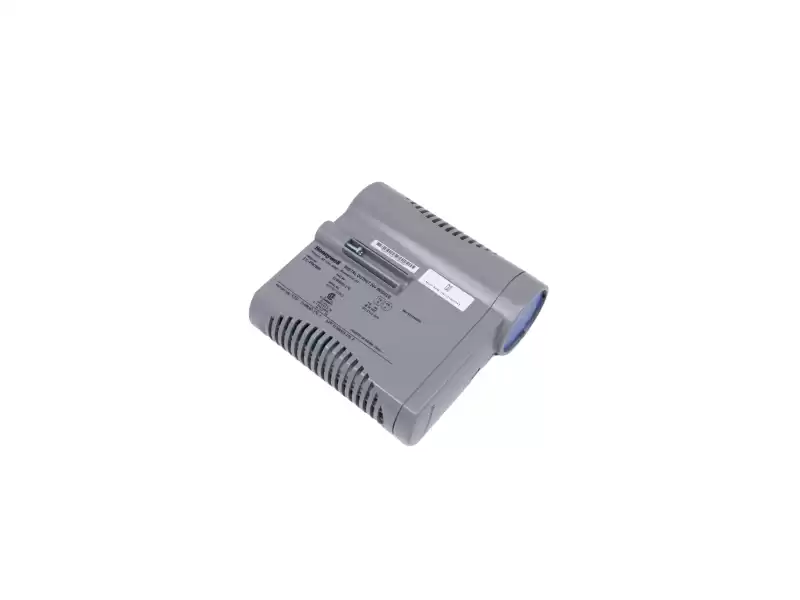

CC-PDOB01 is Honeywell’s C300-series 32-channel, 24 Vdc digital output (sink) module. It mounts on the standard Series-C IOTA board and communicates via the C300 controller over the ControlNet backplane. Every channel is individually isolated, short-circuit protected and rated for 0.5 A steady-state load—ideal for driving solenoids, relays or alarm annunciators inside safety or process applications.
2.Key Specifications
• Part number: 51405043-176
• Channels: 32 DO, sinking (negative-switching)
• Field voltage: 18–30 Vdc (24 Vdc nominal)
• Max load per channel: 0.5 A, 12 W
• Leakage current: < 0.5 mA @ 24 Vdc
• Switching time: < 1 ms ON, < 1 ms OFF
• Isolation: 250 Vrms channel-to-bus & channel-to-ground
• Protection: short-circuit, over-temperature, diagnostics
• Operating temp: 0 … 60 °C (RH 5–95 % non-cond.)
• Certifications: CE, UL, FM, ATEX (Zone 2)
3.Quick-Compare Table – CC-PDOB01 vs. CC-PDOB11
|
Feature
|
CC-PDOB01 51405043-176
|
CC-PDOB11 51405043-177
|
|
Output type
|
24 Vdc sink
|
24 Vdc source
|
|
Channel count
|
32
|
32
|
|
Max current / ch
|
0.5 A
|
0.5 A
|
|
Typical use-case
|
Solenoids, relays
|
Opto-isolated loads
|
|
Stock status (Sep 2025)
|
≥ 12 pcs
|
≥ 8 pcs
|
PLC Autocontroller – keeping your C300 nodes running, today and tomorrow.
