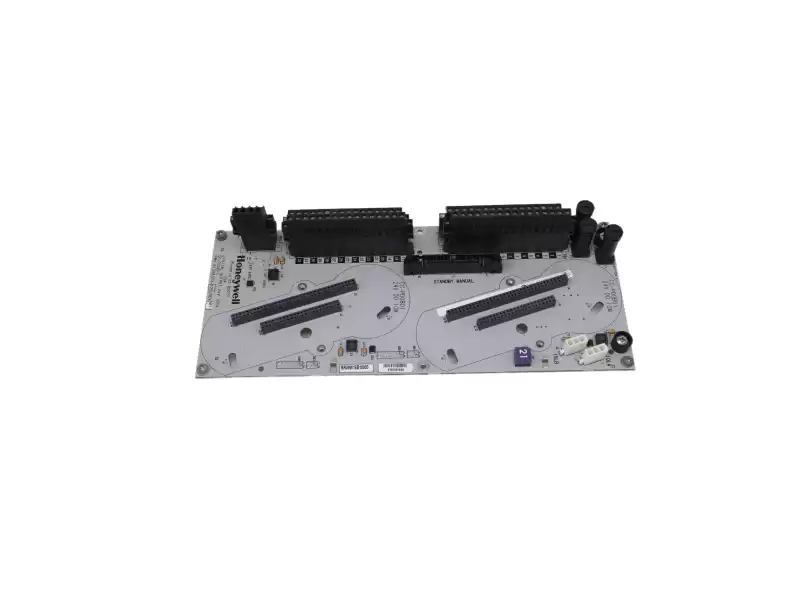

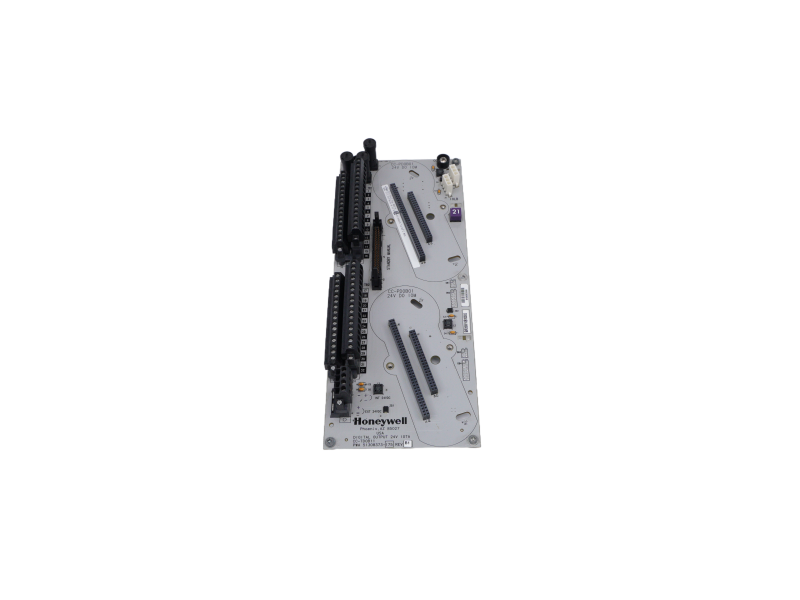

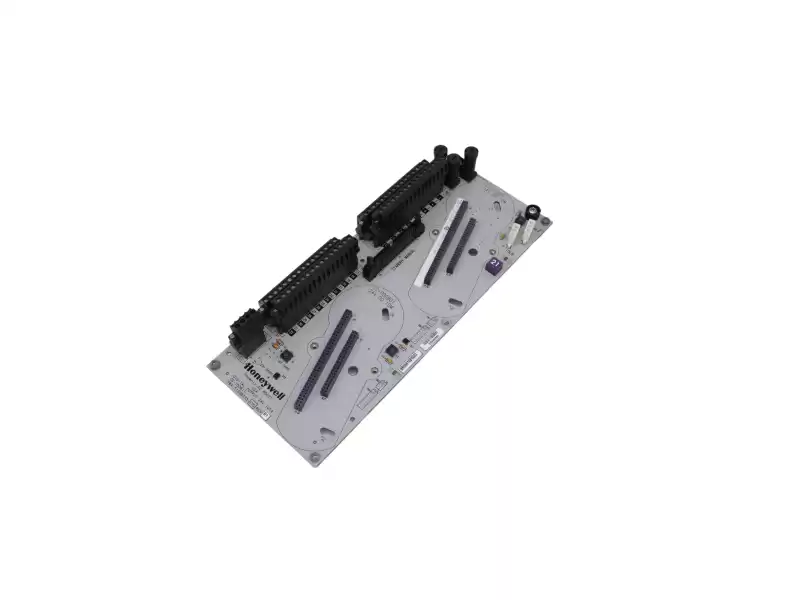

Honeywell’s CC-TDOB11 (P/N 51308373-175) is a 32-channel, 24 VDC digital-output module for the C300 / Series-C I/O family. Every unit we ship is factory-sealed, traceable to Honeywell’s Mesa warehouse, and 100 % compatible with Experion® R511 or later.
2.Quick-Spec Table
|
Parameter
|
Value / Note
|
|
Part Number
|
51308373-175
|
|
Channels
|
32 sinking outputs, grouped 16 × 2
|
|
Logic voltage
|
24 VDC nominal (18…32 V)
|
|
Max load / channel
|
0.5 A (2 A max per 16-ch group)
|
|
Field-connector
|
Two 40-pin, high-density spring-cage
|
|
Isolation
|
Channel-to-bus 250 Vrms; group-to-group 60 V
|
|
On-state drop
|
≤ 0.3 V @ 0.5 A
|
|
Switching time
|
≤ 1 ms ON / OFF
|
|
Bus power
|
5 V, 280 mA typical
|
|
Operating temp.
|
0…60 °C (derate > 55 °C)
|
|
Certifications
|
CE, UL, FM, ATEX, IECEx Zone 2
|
3.Mechanical & Installation
|
Dimension / Feature
|
Detail
|
|
Width × height × depth
|
110 × 165 × 51 mm (single-slot)
|
|
Hot-swap
|
Supported under power (C300 must be idle)
|
|
Keying code
|
Red 3-pin, factory-coded
|
|
LED indicators
|
32 green OUT, 1 red ERROR, 1 green STATUS
|
|
Cable kit
|
Optional RK-KIT32-01 (pre-wired 1 m)
|
4.Why Buy From PLC Autocontroller
20-year automation sales legacy in Xiamen, China
Global logistics: DHL / FedEx 3-5 days to EU / NA; we clear Chinese export formalities
Premium Original Parts – zero refurbished or grey-market hardware
Rich Shelf Stock – covering ABB, Honeywell, Siemens, Schneider and more
We guarantee ONLY brand-new factory-sealed product, 100 % quality-assured and ready to run.
