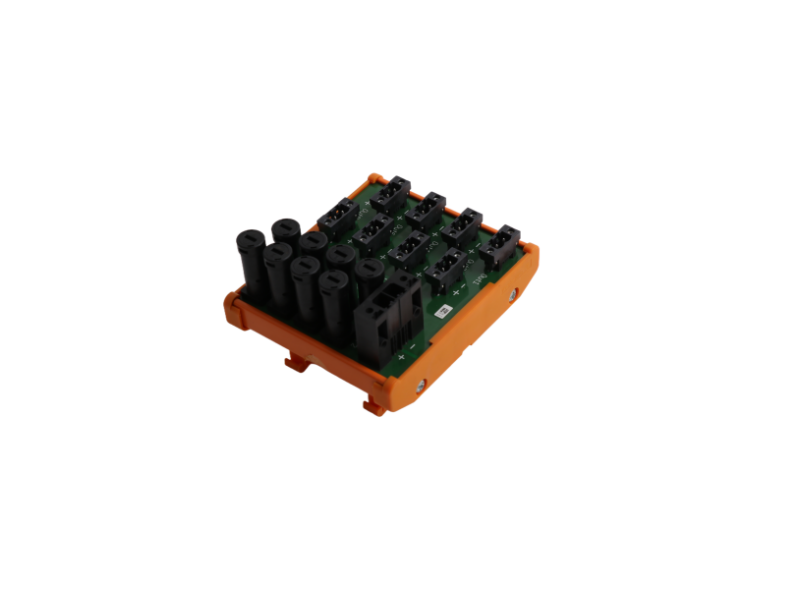

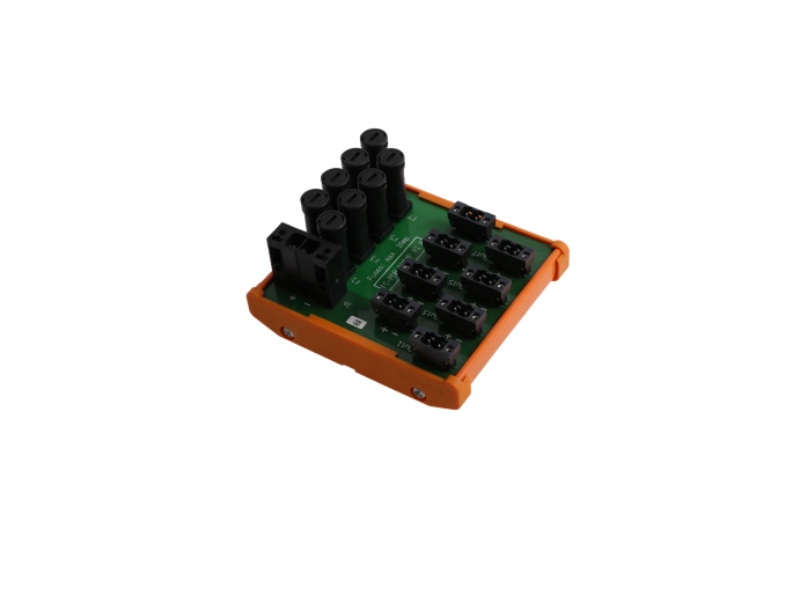

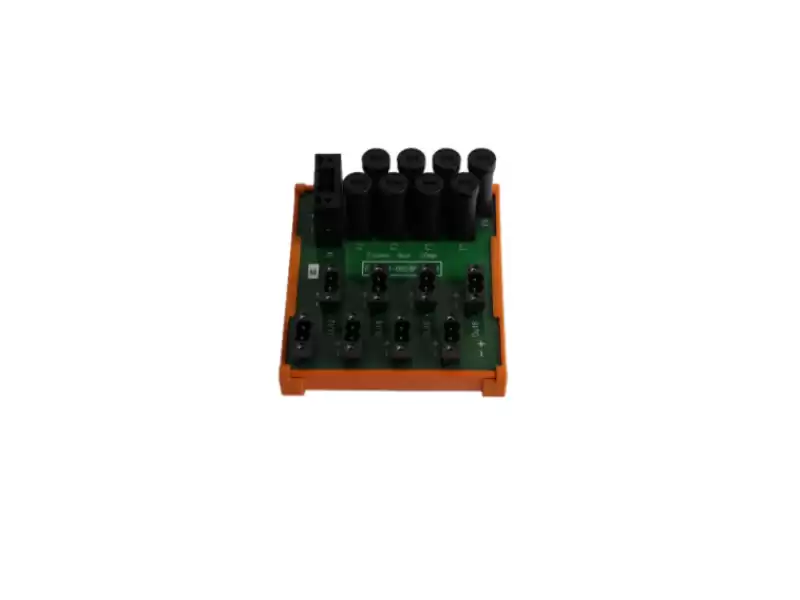

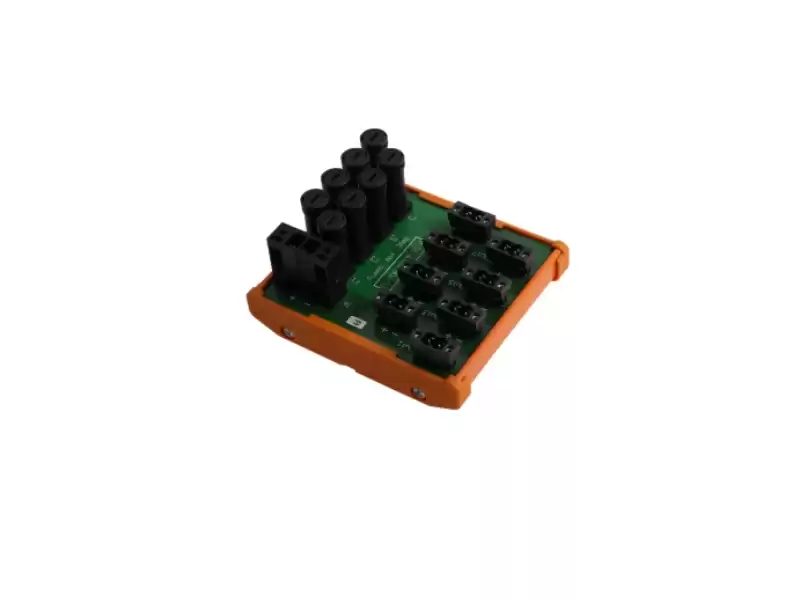

Field Note: Honeywell FC-PDB-0824P V1.0 Power Distribution Board
Contact: ab@mooreplc.com | Same-day ship worldwide
Purpose
A micro-distribution board that converts a single 24 V DC feed into eight individually protected 24 V DC outputs—ideal for powering safety I/O modules without external breakers.
Key Data (per Honeywell datasheet)
• Inputs: 24 V DC (18–36 V DC)
• Outputs: 8 × 24 V DC, 2 A each, 16 A total
• Protection: 2 A slow-blow fuse per output, electronic current limit
• Diagnostics: green/red LED per output + common fault contact
• Operating temperature: –40 °C … +70 °C
• Mounting: TS35 DIN-rail, IP20
Installation Notes
• Use PDC-MB24-1 input cable (1.45 m) for direct feed from main bus
• Leave 10 mm spacing on DIN-rail for airflow
• Fuse replacement: 5 × 20 mm, 2 A slow-blow
Ready-to-Ship Package
|
Part No.
|
Description
|
|
FC-PDB-0824P V1.0
|
Power distribution board
|
|
PDC-MB24-1
|
1.45 m 24 V DC input cable
|
|
PDC-FTA24-0.5
|
0.5 m 24 V DC output cable
|
|
PDC-FTA24-1
|
1 m 244 V DC output cable
|
|
PDC-FTA24-2
|
2 m 24 V DC output cable
|
|
FC-TERM-0001
|
Bus terminator
|
|
FC-RUSPSU-R
|
Redundant 24 V DC 12 A supply
|
