Technical Specifications for FC-TSDI-1624 V1.0
|
Manufacturer
|
Honeywell
|
|
Condition
|
100% New Original
|
|
Brand
|
Honeywell
|
Input current
|
≤ 15mA
|
|
Part Number
|
FC-TSDI-1624 V1.0
|
Input resistance
|
260 Ω ±25%
|
|
Product Name
|
Analog Input Module
|
Output voltage
|
24 Vdc
|
|
Manufacture Year
|
2021
|
Accuracy
|
0.15%
|
|
Product Package
|
Original Package
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|

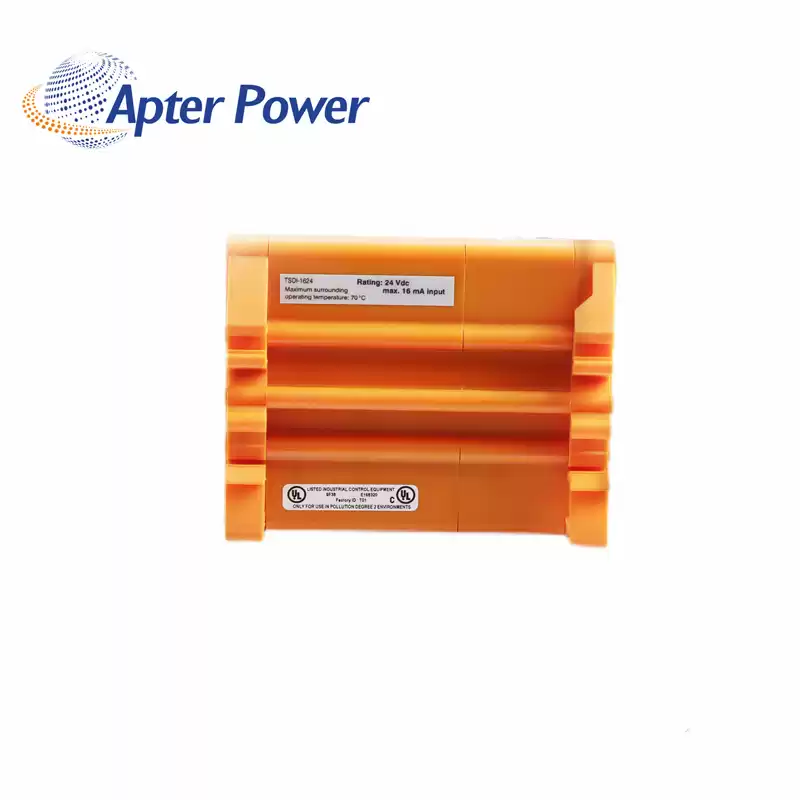

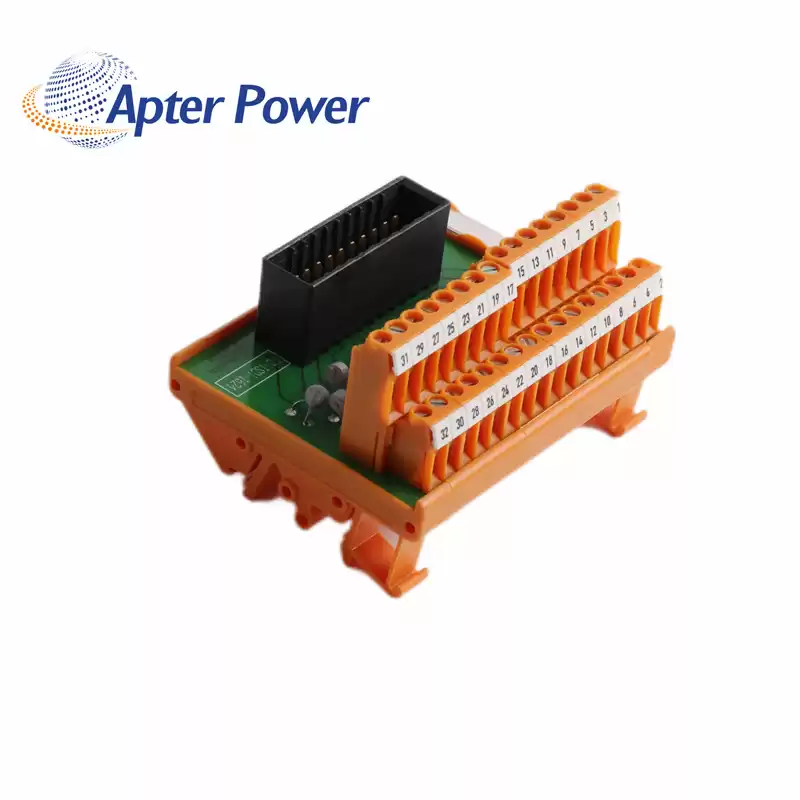

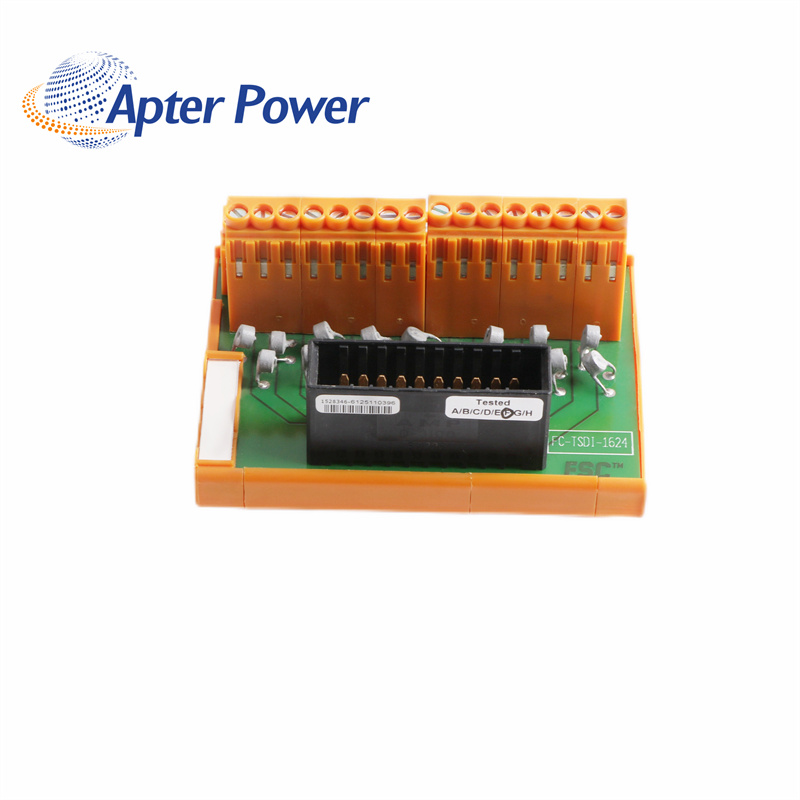

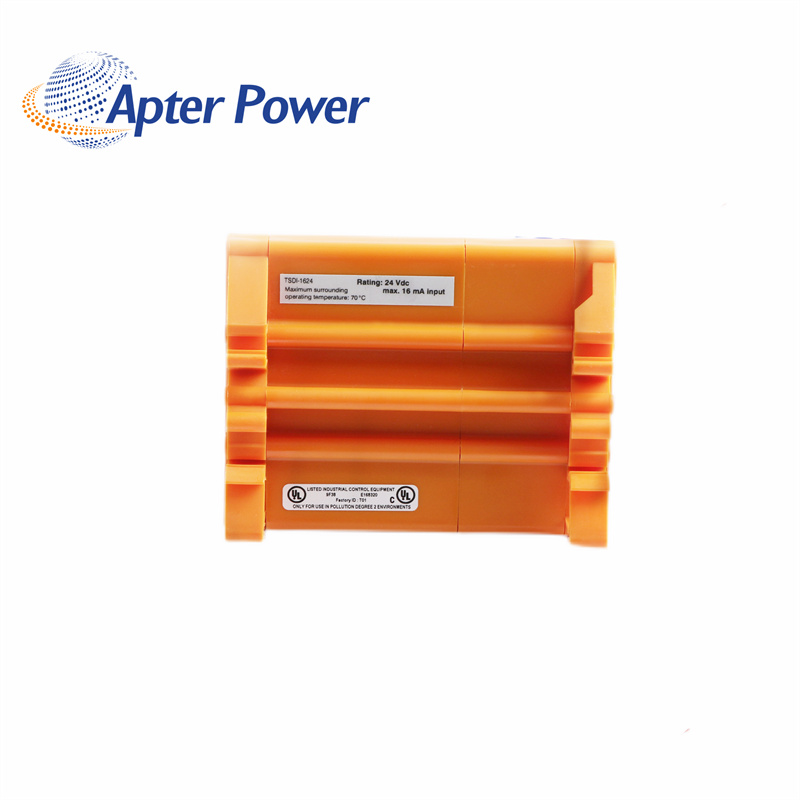

About FC-TSDI-1624 V1.0
|
The FC-TSAI-1620 module is a Safe digital input FTA.Field termination assembly module TSDI-1624 is the interface between system
interconnection cable SICC-0001/Lx and the external field wiring (screw
terminals). The SICC cable interconnects the SIC connector on the FTA module
and a (redundant pair of) SDI-1624 modules.The TSDI-1624 module can interface with digital input signals from ‘Class I,
Division 2 Hazardous Locations’.
The TSDI-1624 module can handle short circuits to 0 Volt of (INx+ or INx) field
wires because the PTC (Positive Temperature Coefficient) resistor between the
+24Vout of the SDI-1624 modules and the ‘+24Vout’ connection (INx+) of each
input channel limits the current. This prevents the loss of all 16 channels
(+24Vout fails) in the case of a single short circuit to 0 Volt of a connected field
wire.The FTA module has a universal snap-in provision for standard DIN EN rails and
screw terminals for connecting field wiring.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
