FC-TSDO-0824| Digital Output Field-Termination Assembly
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
About FC-TSDO-0824

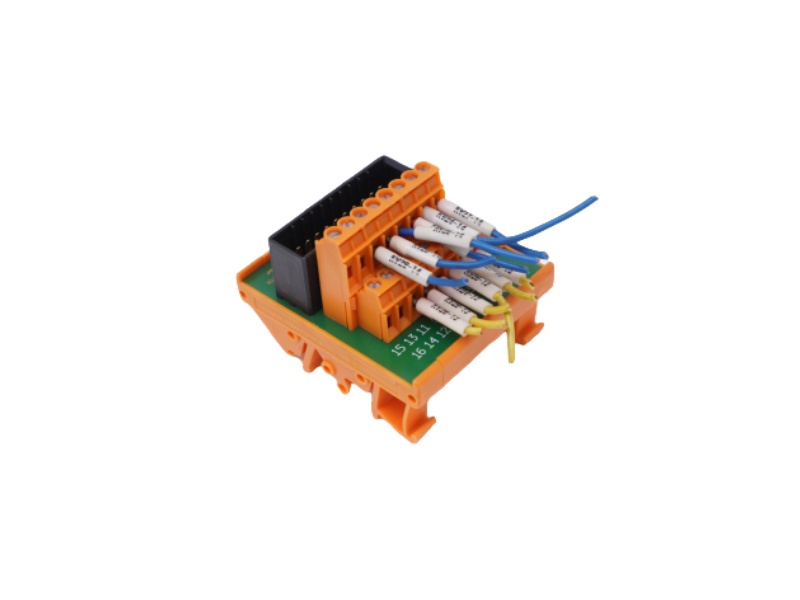

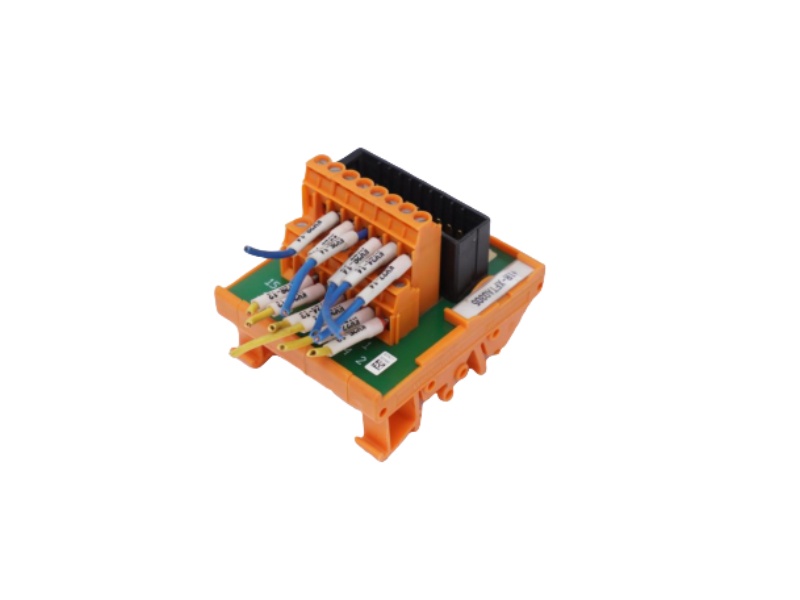

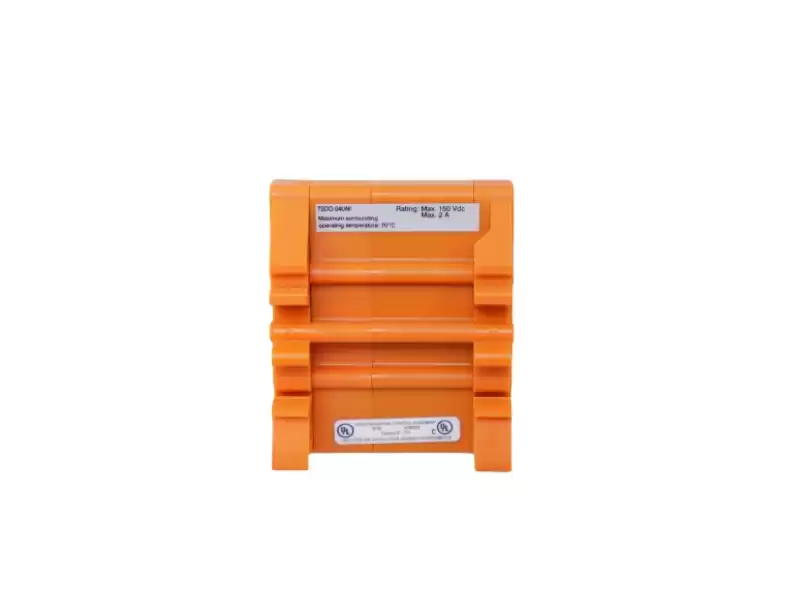

Model: FC-TSDO-0824 — Safe Digital Output Field-Termination Assembly (FTA) / Digital Output Termination
Wiring Module, used in safety instrumented systems as an output wiring connection to field actuators, providing
a safety-level output channel.
Key Specifications
|
Electrical
|
Value
|
|
Model:
|
FC-TSDO-0824
|
|
Number of Output Channels:
|
8 channels.
|
|
Maximum Voltage:
|
Up to 36Vdc (overvoltage category 3).
|
|
Maximum Continuous Current/Channel:
|
Approximately 1.5A per channel (depending on the connected module).
|
|
Terminal Specifications:
|
Screw terminals, maximum wire diameter approximately 2.5mm², wire stripping length approximately 7mm, tightening torque approximately 0.5Nm.
|
|
Mounting Rail:
|
Supports DIN rails such as TS32 or TS35×7.5mm.
|
Product Advantages
|
High-Security Output Channels: Designed specifically for safety system outputs, providing reliable channel outputs and terminal connections.
|
|
Simplified Field Wiring: As a terminal block, it facilitates reliable connection of system outputs to field devices, reducing wiring complexity.
|
|
High Brand Compatibility: As part of the Honeywell safety system, it integrates easily with other modular systems and supports long-term maintenance.
|
|
Modular Structure: Clearly defined output channels and standardized terminal specifications facilitate installation and subsequent maintenance.
|
Application Areas
Ø Safety instrumented system output terminal modules in process industries such as chemical, oil, natural gas, and power plants, used to output safety commands to actuators (such as safety valves, solenoid valves, and control relays).
Ø In manufacturing automation systems and critical equipment safety control cabinets, applications requiring safety loop output wiring to field devices are also included.
Ø Safety system integrators or automation engineering projects use these modules to construct safety output module wiring solutions that meet SIL (Safety Integrity Level) requirements.
Ø All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
