Data Sheet: Honeywell FC-TSRO-0824 V1.1
8-Channel Relay Output Field Termination Assembly (FTA)
Product Overview

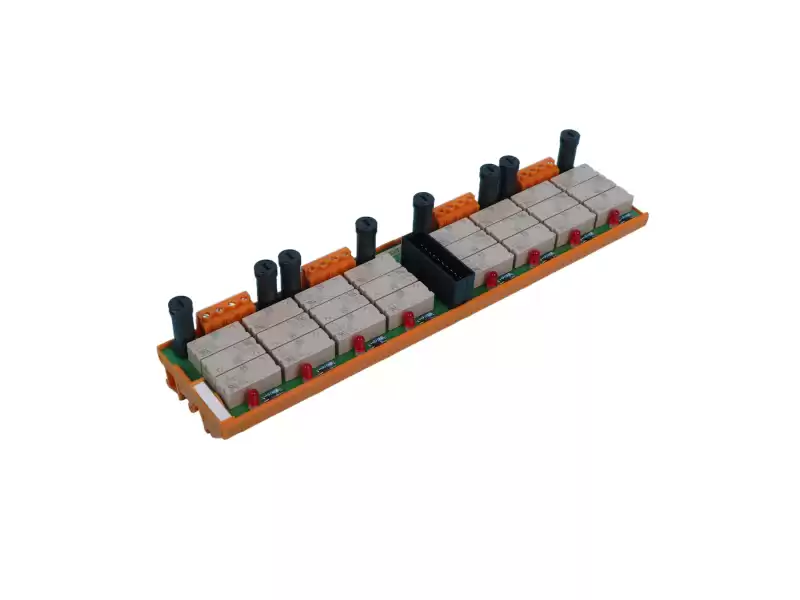

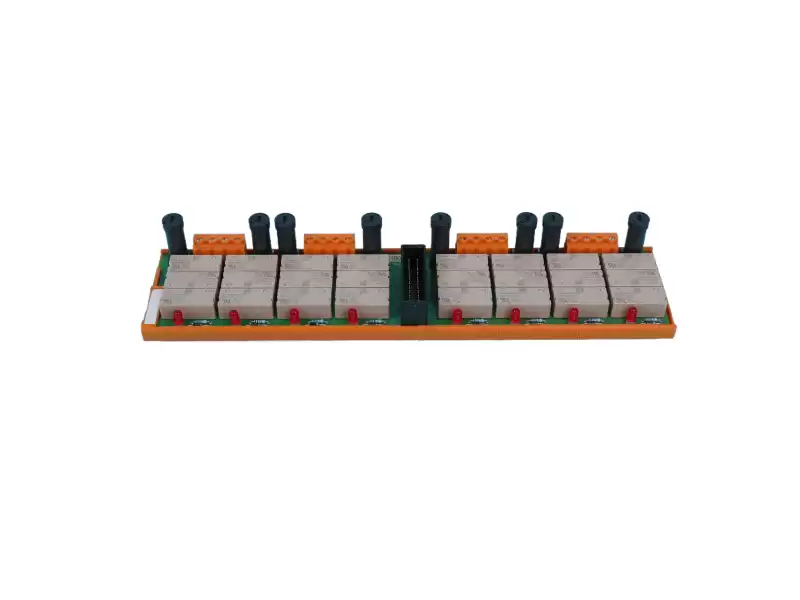

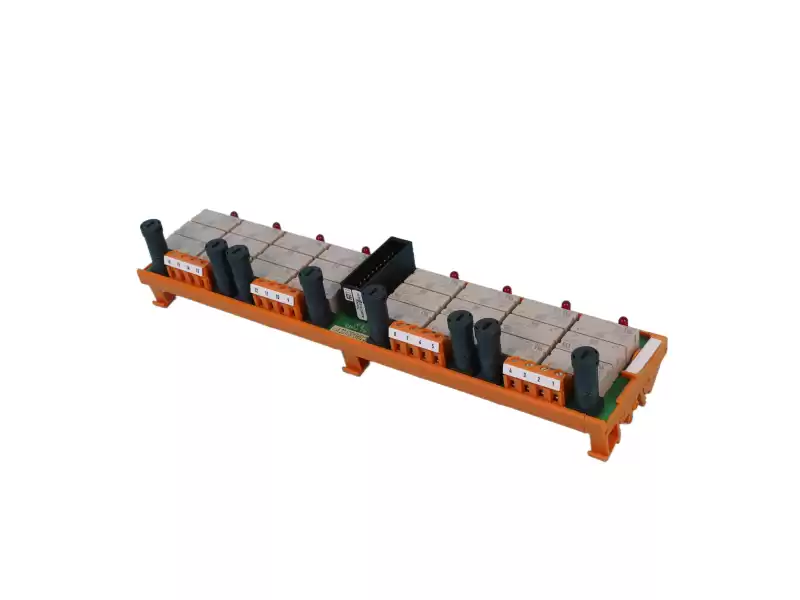

Honeywell Safety Manager FC-TSRO-0824 V1.1 8-Channel Relay Output Module
The Honeywell FC-TSRO-0824 V1.1 is an 8-channel Relay Output Field Termination Assembly (FTA) designed for use with the Safety Manager PLC system. Its primary function is to interface between the controller's solid-state safety logic and field devices by providing eight Form C (changeover) relay outputs.
This module accepts 24V DC signals from the safety controller and provides isolated, potential-free dry contacts to safely control demanding industrial loads such as solenoids, motor contactors, pilot lights, and alarm horns directly, eliminating the need for additional interposing relays.
Technical Specifications
|
Model Number
|
FC-TSRO-0824 V1.1
|
|
Product Type
|
Relay Output Field Termination Assembly (FTA)
|
|
Number of Channels
|
8
|
|
Output Type
|
Electromechanical Relay, Form C (SPDT)
|
Typical Installations
• Offshore ESD valve matrix – eight 24 V solenoid coils in a single cabinet
• Steel-mill ladle cranes – dual-redundant brake release circuits
• Pharma isolators – fire-damper actuation with loop monitoring
Ready-to-Ship Kit
|
Part Number
|
Description
|
|
FC-TSRO-0824
|
Main relay FTA (this unit)
|
|
FC-TSRO-0824-CC
|
Conformal-coated version for marine/offshore
|
|
FC-TSDO-0824
|
Solid-state 24 V DC FTA (8 ch, 2 A)
|
|
FC-TPSU-2430
|
24 V DC → 30 V DC / 1 A converter
|
|
30754661-022
|
Spare 3 A slow-blow fuse (5 × 20 mm)
|
FAQ – Quick Answers
Q1: Can I wire 120 V AC loads directly?
A1: Yes, the 250 VAC rating covers 120 V AC inductive loads up to 150 W .
Q2: How do I reset a blown fuse?
A2: Front-panel fuse holder – pop out, replace 5 × 20 mm fuse, no tools.
Q3: Is loop monitoring supported?
A3: Optional FC-TSDOL-0824 provides 0–5 kΩ loop resistance monitoring per channel.
Q4: Compatible safety CPUs?
A4: Any Honeywell FSC, SM-RIO, or HIMatrix CPU certified to SIL 3.
