MC-PAIH03 51304754-150 | high-level analog input processor module
PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs
Overview

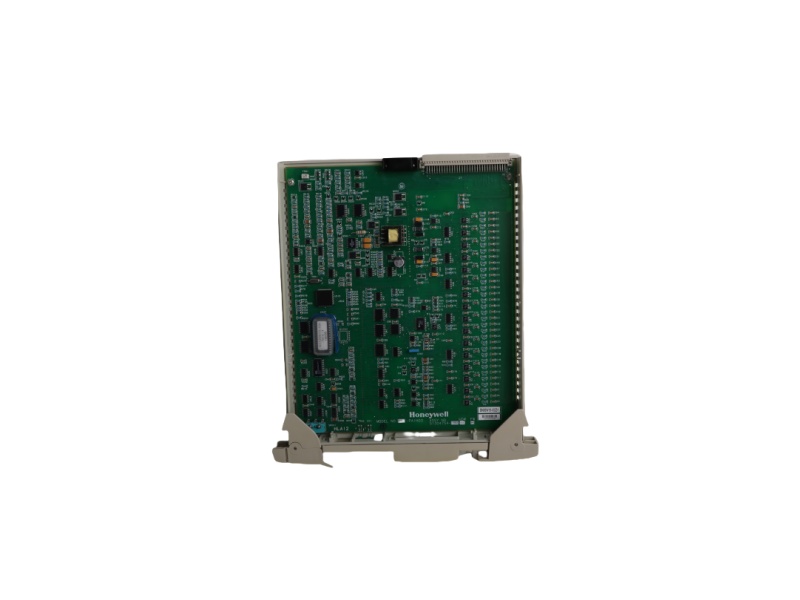

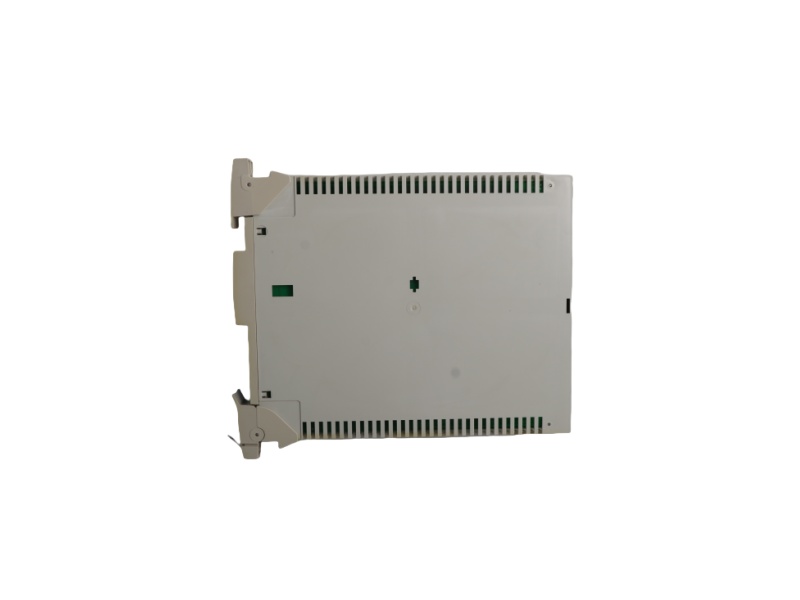

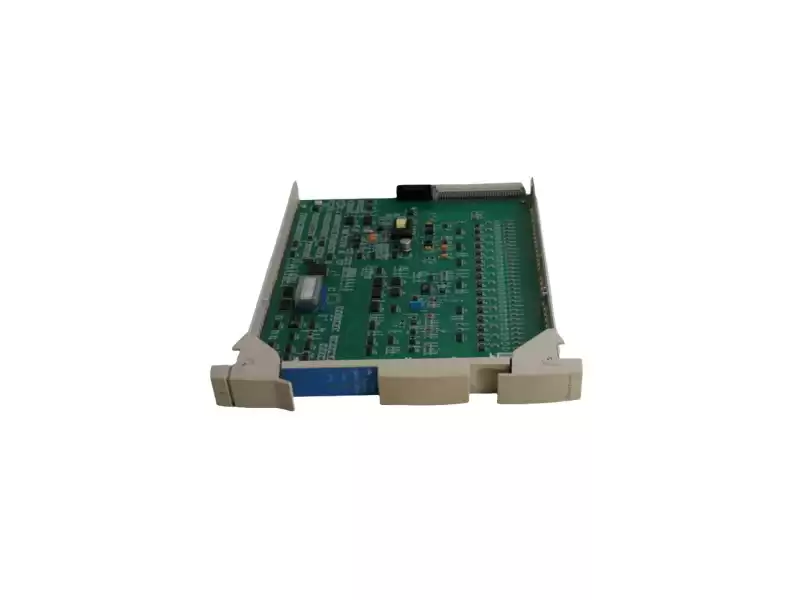

MC-PAIH03 51304754-150 — A high-level analog input processor module with 16 differential channels,
designed for high-level analog signal acquisition in Honeywell control systems. This module belongs to Honeywell's "
High Level Analog Input Processor (HLAI2 IOP)" series and is used for centralized processing of high-level analog inputs.
It features 16 high-level analog input channels (differential input configuration).
Core Specifications
|
Electrical
|
Value
|
|
Module Model:
|
MC-PAIH03 51304754-150
|
|
Module Type:
|
high-level analog input processor module
|
|
Number of Input Channels:
|
16 channels (differential input)
|
|
Input Type: Voltage:
|
0-5 V, 1-5 V, 0.4-2 V; Current: 4-20 mA (through 250 Ω)
|
|
Common-Mode Rejection Ratio:
|
70 dB (500 Ω source imbalance, DC-60 Hz)
|
|
Scan Rate:
|
Approximately 4 scans/second per channel, total sampling window approximately 250 ms
|
|
Hardware Accuracy:
|
±0.075% FS @ 23.5 °C; ±0.15% FS @ 0-50 °C
|
Product Advantages
Ø High Channel Density: 16 channels of differential high-level analog inputs are integrated into a single module, suitable for systems with a large number of analog input points.
Ø Supports Multiple Signal Types: Supports both common voltages (0-5 V, etc.) and 4-20 mA inputs, flexibly adapting to field devices.
Ø Excellent Interference Immunity: 70 dB common-mode rejection and 60 dB channel-to-channel crosstalk ratio enhance signal stability.
Ø Compatible with Honeywell System Ecosystem: As an IOP in the HLAI2 series, it is specifically designed for UCN/LCN control networks, minimizing selection risk.
Ø Easy Maintenance and Standardization: Modular structure and standard specifications facilitate easier field replacement and reduce system downtime.
Ø Wide Applicability: Supports multiple signal inputs, differential modes, and fast scan rates, suitable for process control system requirements.
Contact us
Sales Manager May – PLC Autocontroller (20 years of experience in supplying superior industrial automation parts)
E-mail: ab@mooreplc.com | Phone: +86-18106909650 (WhatsApp) | WeChat: dcsfcs
PLC Autocontrolle
Ø All products are brand new and original,with a 12-month warranty.
Ø Authenticity Guarantee: All products are genuine, ensuring reliable quality.
Ø Technical Support: Module datasheets, wiring diagrams, and commissioning instructions are provided.
Ø Spare Parts Inventory Support: A long-term spare parts inventory ensures continuous equipment operation.
