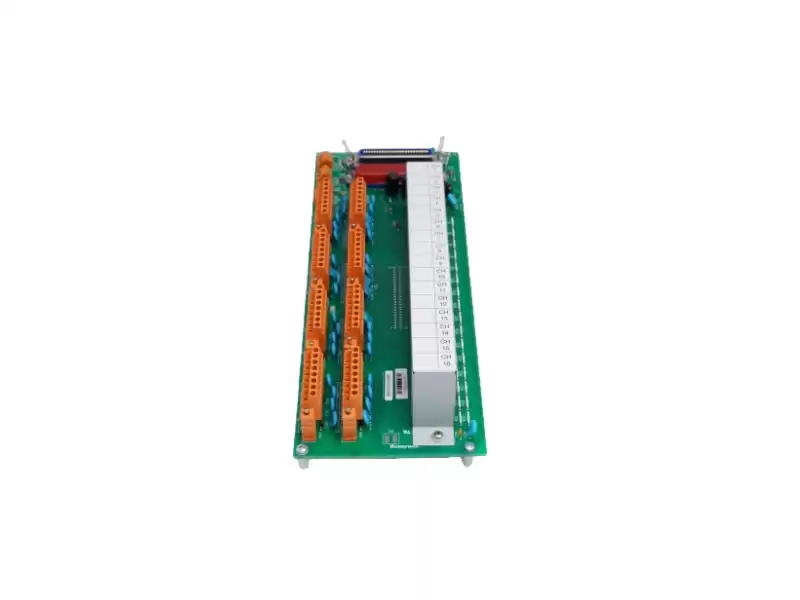

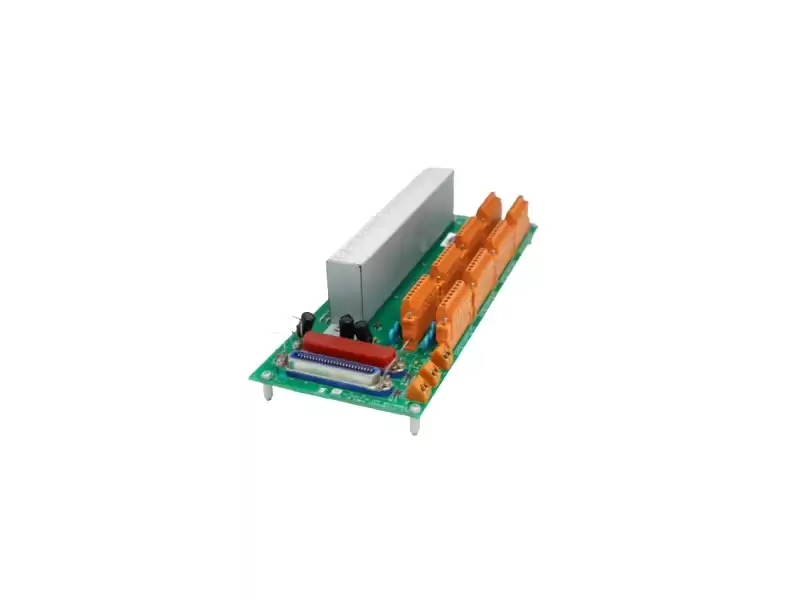

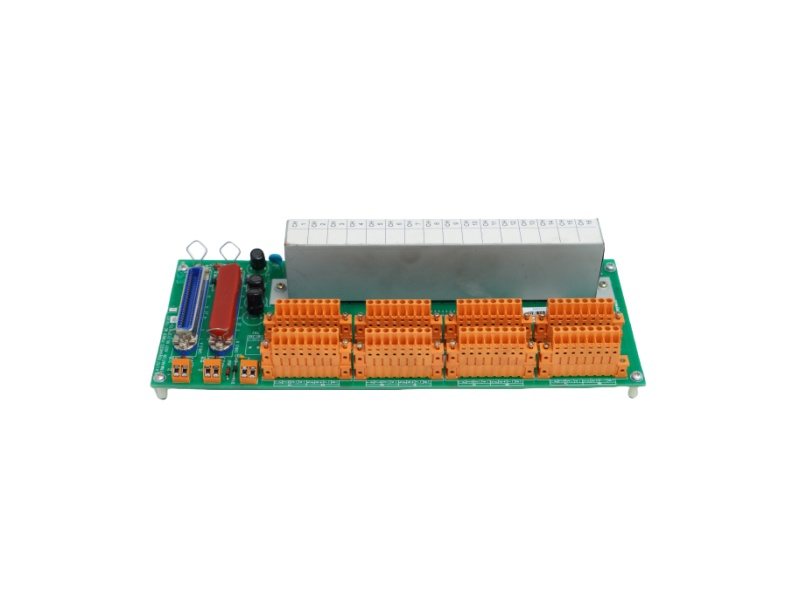

The Honeywell MC-TAIH22 (part number 51204170-250) is a high-level analog input module designed specifically for Honeywell's "TotalPlant Solution" (TPS) distributed control systems. According to the documentation, this module supports 8 or 16 channels of high-level analog inputs and can handle various input types, including thermocouples (TC), RTDs, voltage, and current (2-wire transmitters).
The module features ±0.05% or better accuracy, a 15-30VDC power supply input range, and compliance with industrial isolation standards (1500VAC or ±1500VDC).
Key Specifications
|
Item
|
Value
|
|
Module Model:
|
MC-TAIH22 /51204170-250
|
|
Module Type:
|
High Level Analog Input Module
|
|
Number of Input Channels:
|
8 or 16 channels (depending on version)
|
|
Input Type:
|
Thermocouple, RTD, Voltage, Current (2-wire transmitter)Resolution: 15-bit A/D converter
|
|
Isolation Voltage:
|
1500VAC or ±1500VDC (channel-to-channel & channel-to-system common terminal)
|
|
Power Supply Range:
|
15-30VDC
|
Product Advantages
High-Precision Acquisition: Equipped with 15-bit A/D conversion and strong isolation performance, ensuring reliable acquisition of analog signals in the field.
Multi-Protocol Input Compatibility: Supports multiple input types such as thermocouples, RTDs, voltage, and current, enhancing system adaptability.
Industrial-Grade Reliability: Suitable for harsh environments, multi-channel high-density acquisition, suitable for continuous operation.
Strong System Compatibility: Designed specifically for Honeywell TPS systems, facilitating replacement, upgrades, and spare parts integration.
Experienced Support Guarantee: With 20 years of industry experience, PLC Autocontroller provides selection guidance, spare parts matching, technical support, and long-term service, reducing user downtime
