MC-TAMT04 51305890-175 | low-level input multiplexer
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
monitoring and control module

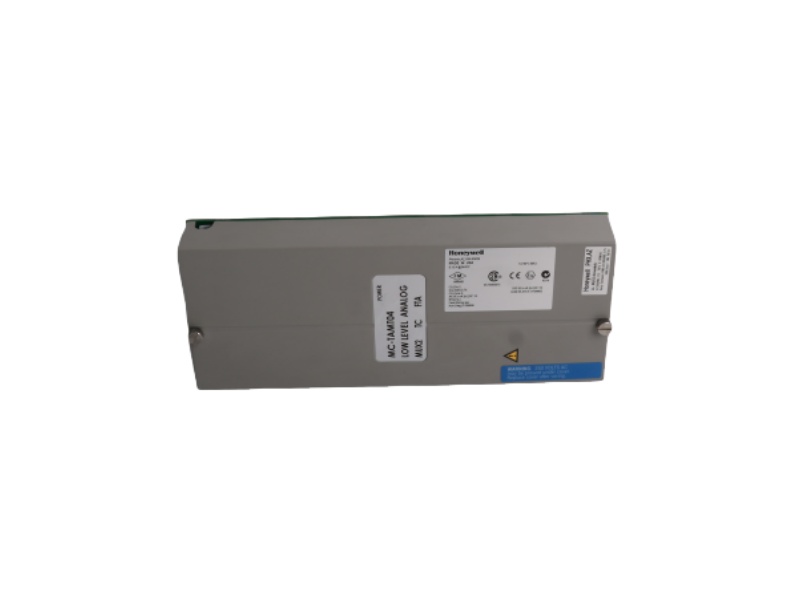

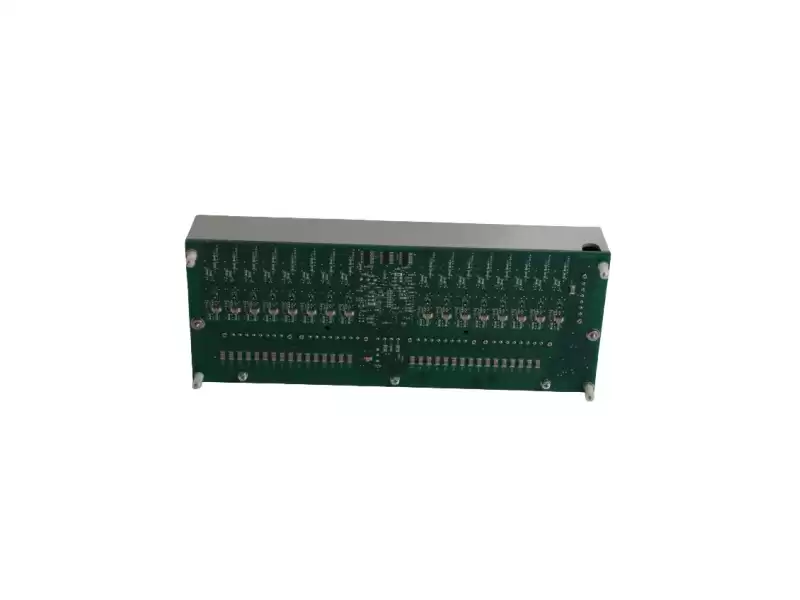

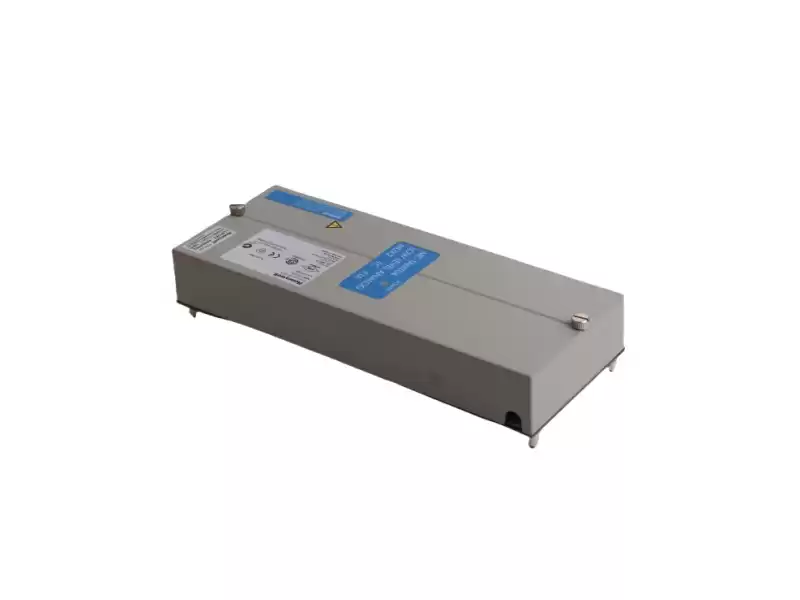

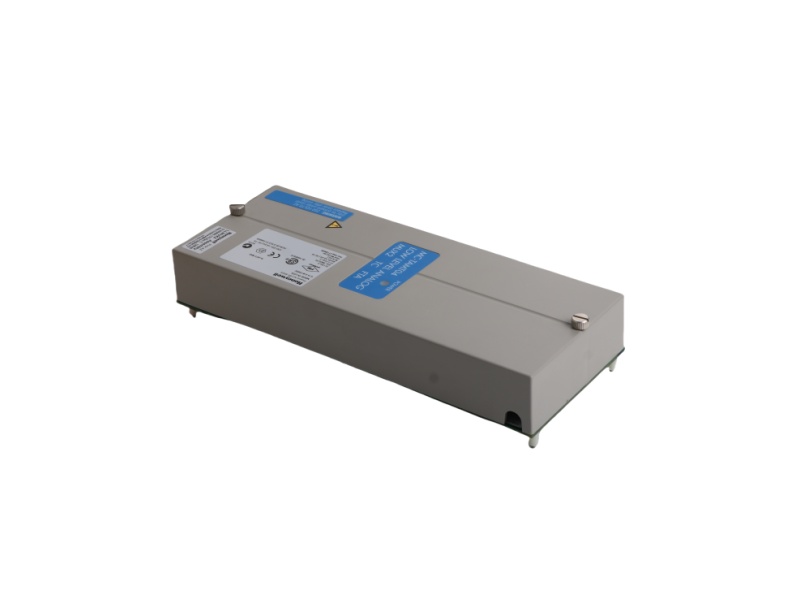

The Honeywell MC-TAMT04 (part number 51305890-175) is a low-level input multiplexer (LMUX2 TC FTA) designed specifically
for Honeywell distributed control systems (DCS). This module supports 16 channels of thermocouple inputs and features local cold
junction reference (CJR) and open thermocouple detection (OTD) functions.
The module uses compressed terminal connections, is size B (approximately 12 inches/307 mm) rack-mount, conventionally coated, and CE
certified. It is suitable for temperature measurement and thermocouple input signal input in process control systems, and is particularly well-suited for harsh industrial applications.
Key Technical Specifications
Module Model: MC-TAMT04 /51305890-175
Module Type: Low-Level Input Multiplexer (LLMUX2 TC FTA)
Number of Input Channels: 16-channel thermocouple input
Cold Junction Reference Type: Local Cold Junction Reference (CJR) supported
Detection Function: Open-Circuit Thermocouple Detection (OTD) <1 second response time
Compatible modules and accessories
|
Model Number
|
Purpose Description
|
|
Power Adapter 51309204-125 or 175
|
Power adapter for use with LLMUX2 module
|
|
32-channel IOP module 51304362-150
|
It can support the use of two LLMUX2 FTA modules together.
|
|
Backplate/Rack Accessories
|
Slot mounting and connection of this module in Honeywell control cabinets
|
