HONEYWELL | MC-TDOY22 51204162-175 | Digital Output Termination Assembly Module
Product Identification

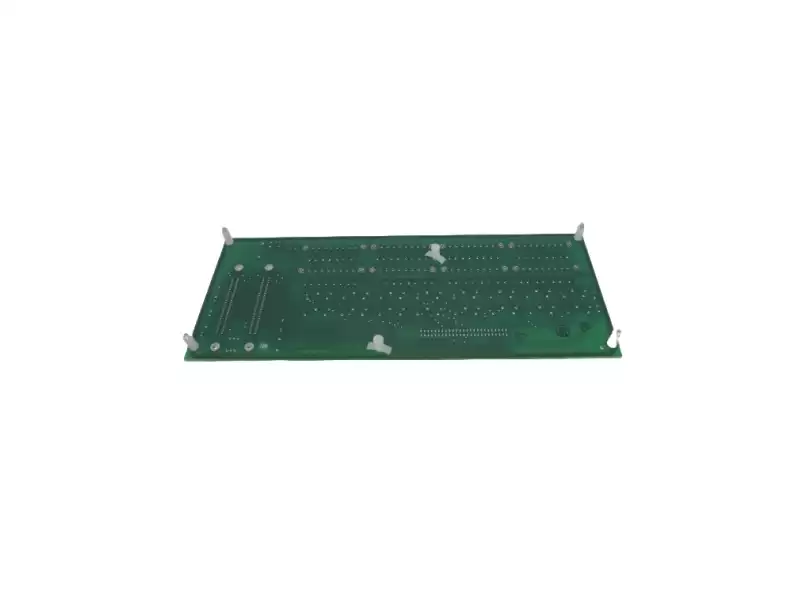

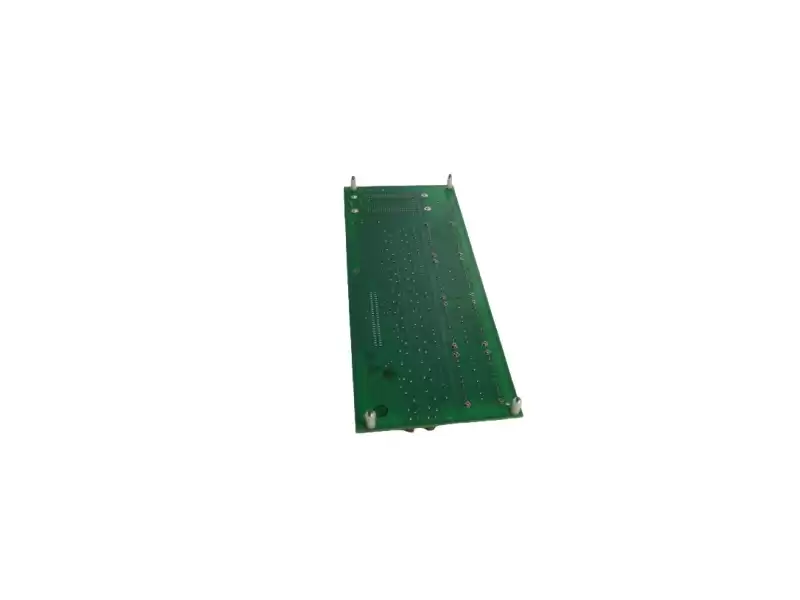

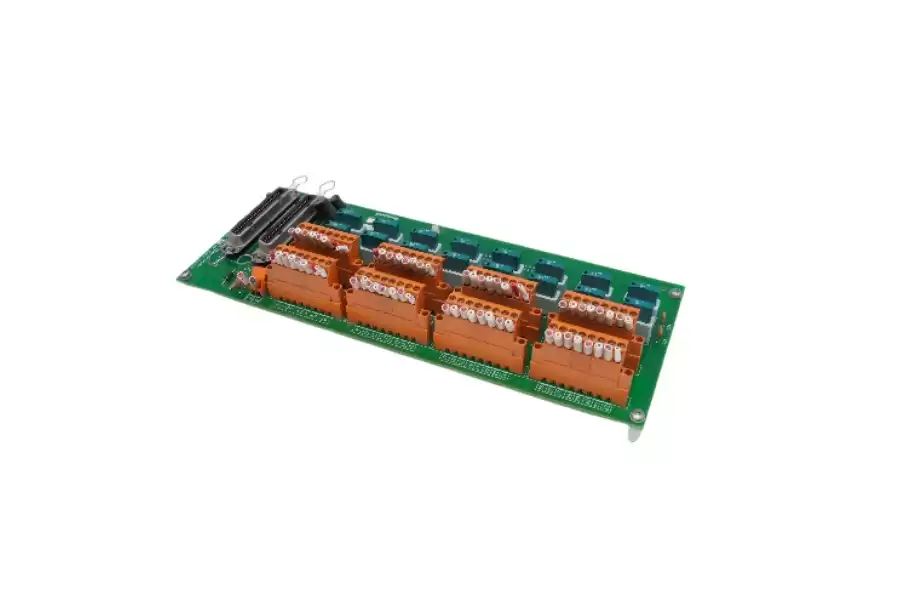

The Honeywell MC-TDOY22 (part number 51204162-175) is a Digital Output Field Termination Assembly
(FTA) module designed specifically for Honeywell DCS/process control systems. This module features 32 isolated
digital output channels, operating within a 24VDC load voltage range (15-30VDC), with a maximum load current
of 500mA per channel. The module uses compressed terminal wiring, suitable for high-density output connections in industrial environments.
Key Specifications
|
Electrical
|
Value
|
|
Module Model:
|
MC-TDOY22 51204162-175
|
|
Module Type:
|
Digital Output Termination Assembly Module
|
|
Number of Output Channels:
|
32 independent output channels
|
|
Load Voltage Range:
|
15-30VDC
|
|
Maximum Load Current:
|
Up to 500mA per channel
|
|
Mounting Size/Rack Type:
|
Size B – 12 inches (approx. 307mm)
|
|
Isolation Voltage/Protection:
|
Isolated design, output drivers are optocoupled to the system common terminal.
|
Product Advantages
|
High-channel, high-density output: 32 output channels support large-scale field device driving, reducing module count and wiring complexity.
|
|
Strong output capability and isolation protection: 15-30VDC load range, up to 500mA per channel, combined with isolation structure, ensures the safety and stability of the control system and field outputs.
|
|
Industry-standard installation: Size B standard module size and compressed terminal design facilitate integration into existing Honeywell DCS/FTA architectures.
|
|
Excellent system compatibility: Designed specifically for Honeywell control systems, reducing compatibility challenges and improving replacement efficiency.
|
|
Experience-backed support: Leveraging 20 years of industry experience with PLCAutocontroller, we provide rapid selection, spare parts supply, engineering consultation, and after-sales service support, minimizing system downtime.
|
|
PLC Automation Controller-20 years of experience in sales automation
|
|
Brand new original
|
One Year Warranty
|
|
Integrity supply
|
best price
|
|
Fast Delivery
|
In Stock/A large number of stocks
|
|
Top Quality
|
24/7Service
|
|
100% Original Package
|
UPS/ DHL/ FEDEX / TNT
|
PLC Autocontroller keeps the MC-TDOY22 51204162-175 in bonded inventory for same-day shipment.
Contact our experienced team for pricing or more details.
