MC-TPIX12 51304084-175 | high-performance Pulse Input Termination Module
PLC Autocontroller | Sales Manager May | Wechat id: dcsfcs
monitoring and control module

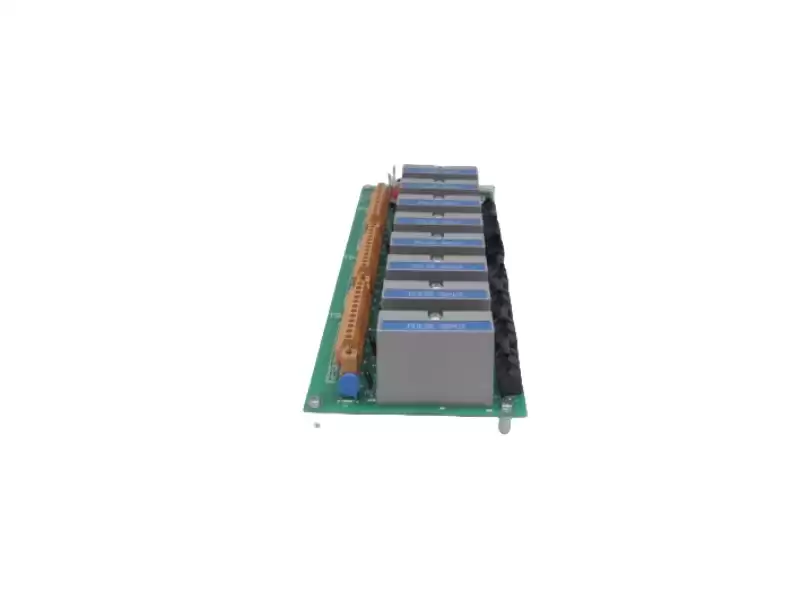

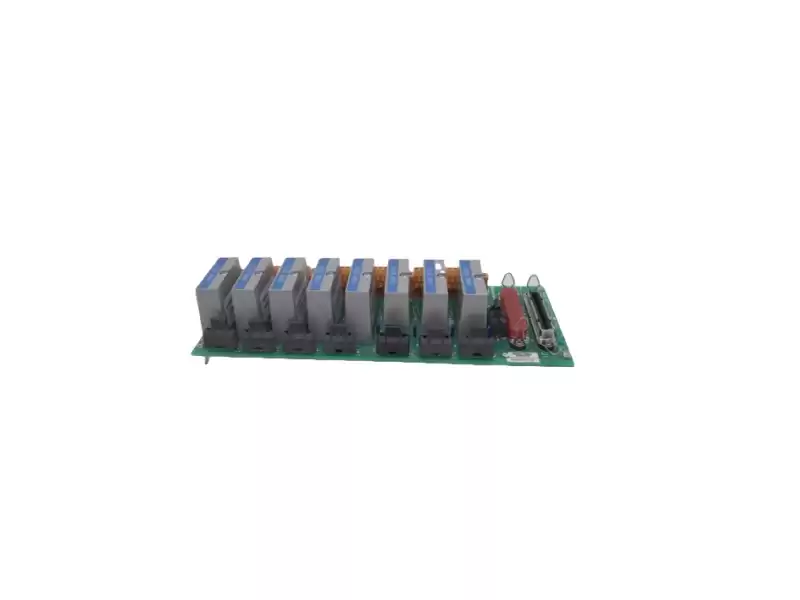

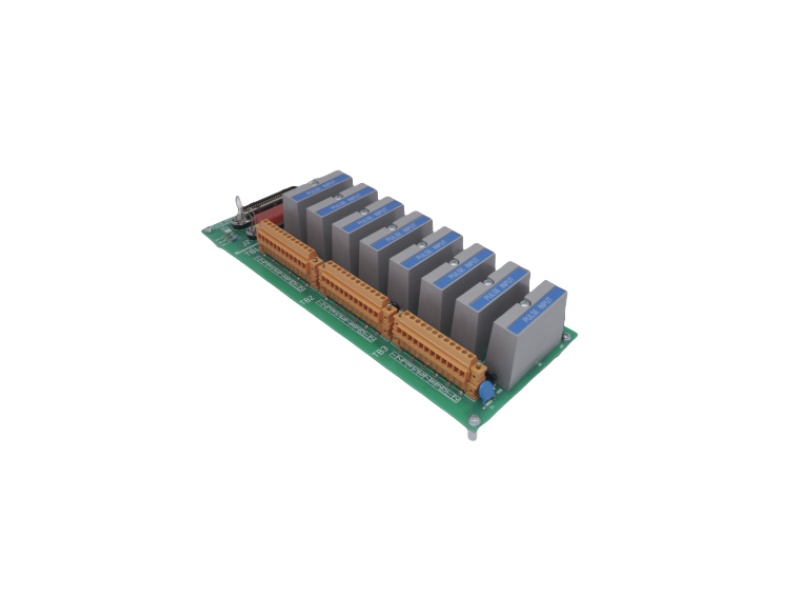

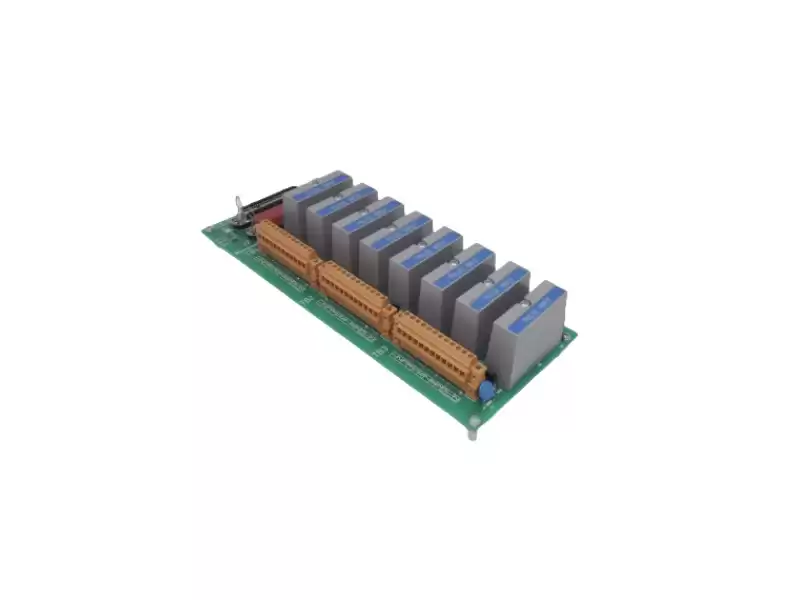

The Honeywell MC-TPIX12 (part number 51304084-175) is a high-performance Pulse Input Termination
Module designed for use in Honeywell distributed control systems (such as TDC/TPS/UCN) to reliably
access and process field pulse signals (from devices such as flow meters, encoders, and counters). This module
supports multiple pulse inputs, balancing high-speed response with suitability for industrial environments.
Key Technical Specifications
Module Model: MC-TPIX12 / Part Number: 51304084-175
Module Type: Pulse Input Termination Module
Number of Channels: 12 input channels (some sources also show 8 channels)
Input Type: Rectangular wave or sine wave pulse input signal
Signal Range/Voltage: 0–20mA, or digital pulse (15–30VDC input)
Sampling/Response Rate: Up to 1000Hz
Mounting Size/Rack Type: "Size B – 12inch (≈307mm)" module type
Operating Temperature Range: –20°C ~ +70°C
Certifications/Protection: CE, UL, CSA, etc.
Compatible modules and accessories
|
Model Number
|
Purpose Description
|
|
MC-PPIX02 / MC-PPIX021
|
Pulse input processing/backplane module used in conjunction with MC-TPIX12.
|
|
CorrespondingI/Orack/backplane modules
|
For rack slot mounting in Honeywell control systems
|
|
Connection terminals / compression terminals
|
Compression terminal structure for pulse signal field access module systems
|
