MU-TDOR22 51309150-125| I/O architecture
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs

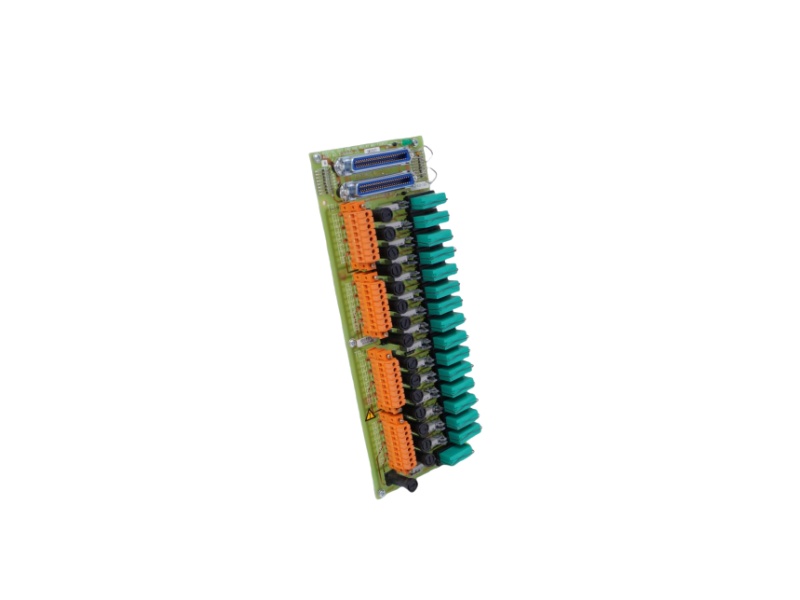

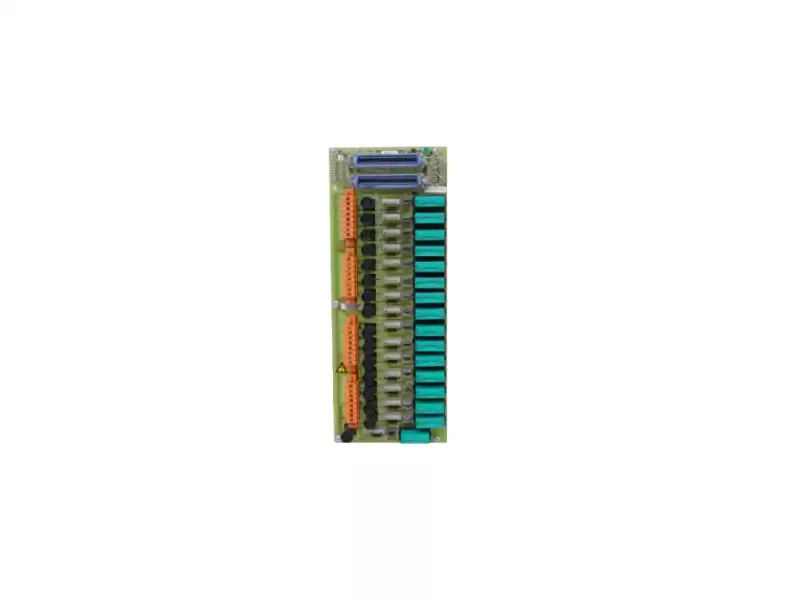

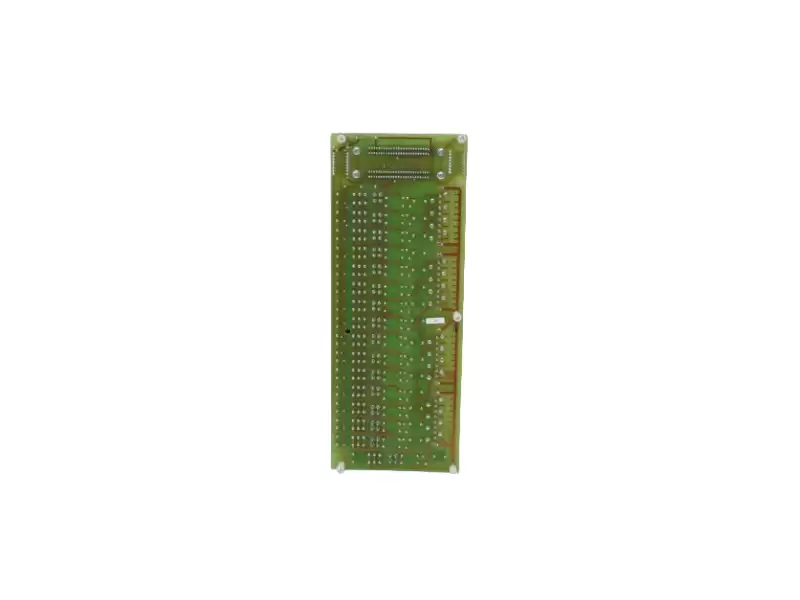

About MU-TDOR22 51309150-125
Honeywell's control system I/O architecture features multi-channel isolated output capabilities, making it suitable
for complex industrial automation scenarios. Its rich, configurable, and highly reliable output channels have earned
it widespread trust in manufacturing, process control, and infrastructure automation.
Key Specifications
|
Electrical
|
Value
|
|
Module Model:
|
MU-TDOR22
|
|
Order Number:
|
51309150-125
|
|
Output Channels:
|
16-channel isolated (FormANO or FormBNC, jumpers optional)
|
|
Contact Material:
|
Silver alloy
|
|
Maximum Load Voltage:
|
265Vac (rms) / 140Vdc
|
|
Maximum Steady-State Current:
|
2.5A @ 240Vac (resistive load) per channel
|
|
Minimum Load Current:
|
100mA
|
|
Turn-on Time:
|
Typical 10ms, Maximum 15ms
|
Module features and advantages
|
Extensive Channels and Strong Isolation: 16 outputs, each independently configurable with NO/NC contacts, and high isolation voltage between channels and with the backplane.
|
|
Wide Output Specifications: Supports high-voltage AC/DC loads (up to 265Vac/140Vdc), accommodating various actuators (relays, valves, indicator lights, etc.).
|
|
Fast Response: Typical switching time is 10ms, suitable for control systems requiring rapid response.
|
|
Industry-Grade Certification and Durable Design: Silver alloy contacts, compliant with UL508 and other industry standards (see extensive supply information) ensure long-term stable operation.
|
Application Areas
n Manufacturing Automated Production Lines: Actuator control, indicator light drive, equipment fault alarm output.
n Process Control Systems: Valve drive, pump start/stop signal output in chemical, petrochemical, and water treatment industries.
n Intelligent Infrastructure: Relay outputs and status indications in building automation and energy management systems.
n Transportation/Public Facilities: Signal control, equipment status feedback, and remote execution output scenarios.
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
