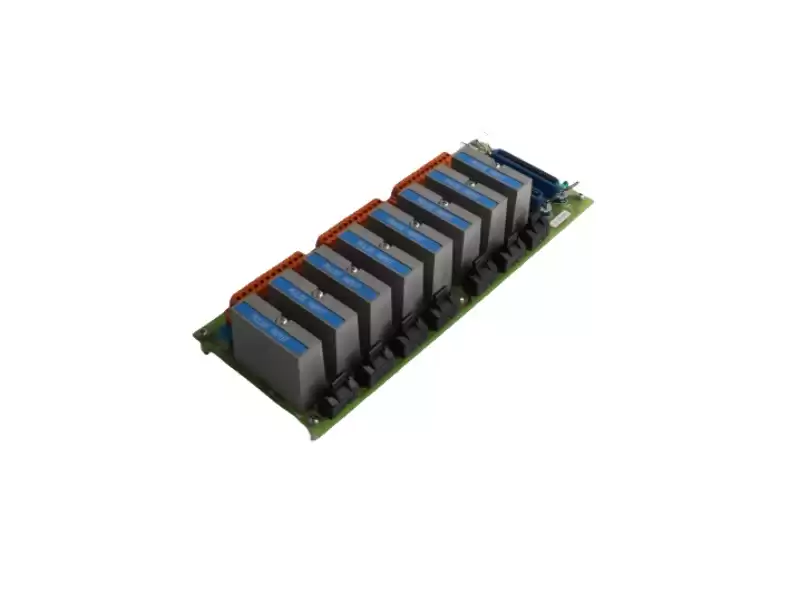

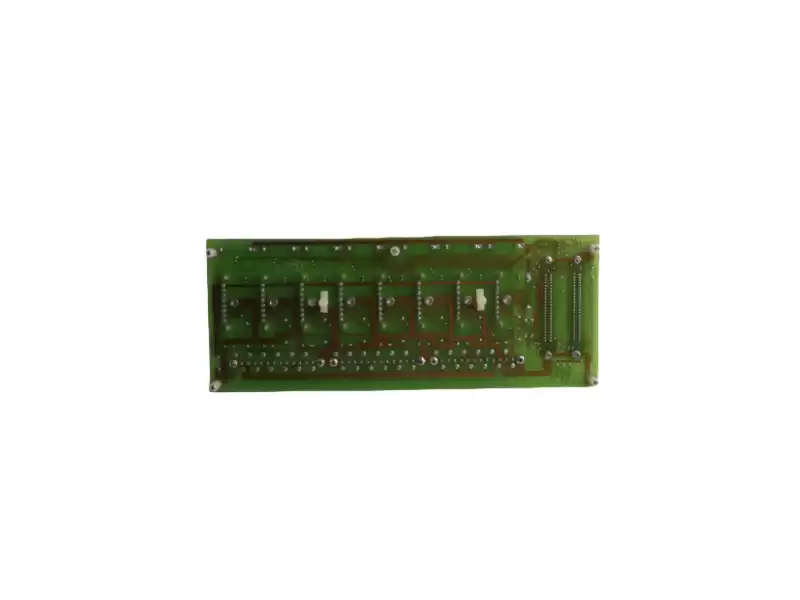

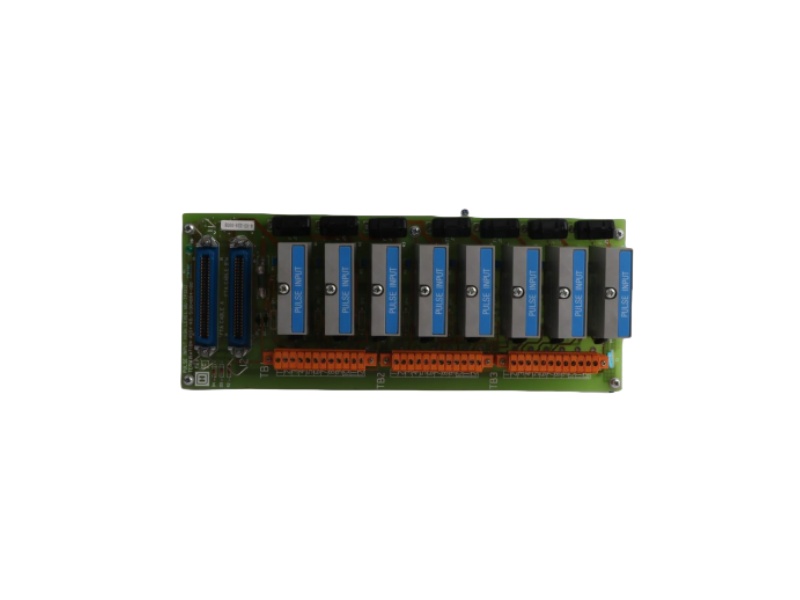

MU-TPIX12 51304084-100 | Field Terminal Assembly
Sales Manager May | Email: ab@mooreplc.com | Phone: +8618106909650 (WhatsApp) | WeChat: dcsfcs
About MU-TPIX12 51304084-100
Model: MU-TPIX12 (51304084-100) — Honeywell's "PulseInputFTA (Field Terminal Assembly)" series module.
The documentation indicates that this module is used to process pulse input signals (rectangular waves or sine waves),
and has 8 input channels for converting field pulse signals and transmitting them to the control system.
Key Specifications
|
Electrical
|
Value
|
|
Model Name:
|
MU-TPIX12 51304084-100
|
|
Manufacturer:
|
Honeywell
|
|
Module Type:
|
Field Terminal Assembly
|
|
Number of input channels:
|
8 channels (8 pulse input points)
|
|
Supported signal types:
|
Square wave or sine wave input
|
|
Input frequency range:
|
1Hz to 20kHz (square wave) / 1Hz to 20kHz (sine wave, all channels with the same amplitude)
|
|
Input voltage level: Low:
|
-0.5V to +1.9V High: +3.5V to +24V (1.9V-3.5V will cause hysteresis to prevent state switching)
|
|
Input impedance:
|
≥10kΩ minimum
|
Module features and advantages
|
Designed for Pulse Input: Handles high-frequency pulse input (up to 20kHz), suitable for high-speed sensors, counters, and flow pulse signal acquisition.
|
|
Multi-Channel Configuration: 8-channel input helps reduce field wiring complexity and improve system integration efficiency.
|
|
Standardized Modular Structure: As a Field Termination Assembly (FTA), it facilitates quick replacement or expansion within existing Honeywell control systems.
|
|
Brand and Compatibility Advantages: As a genuine Honeywell module, it offers excellent compatibility with corresponding control systems, reducing system integration risks.
|
Application Areas
n This module is suitable for various industrial automation scenarios, especially in situations requiring the acquisition and integration of pulse signals into DCS/PLC systems. Examples include:
n Signal input for pulse output devices such as flow meters, energy meters, and tachometers in chemical and petrochemical plants.
n Acquisition and monitoring of pulse signals in power, water treatment, and combustion/gas monitoring systems.
n Acquisition and control of pulse signals from high-speed counting, packaging, and printing equipment in manufacturing automation lines.
All items are factory-new, sealed, and supported by PLC Autocontroller with same-day quotation and worldwide overnight delivery.
