HONEYWELL R02S02L03 Analog Output Module

PLC Autocontroller |20 years of experience specializing in automation equipment

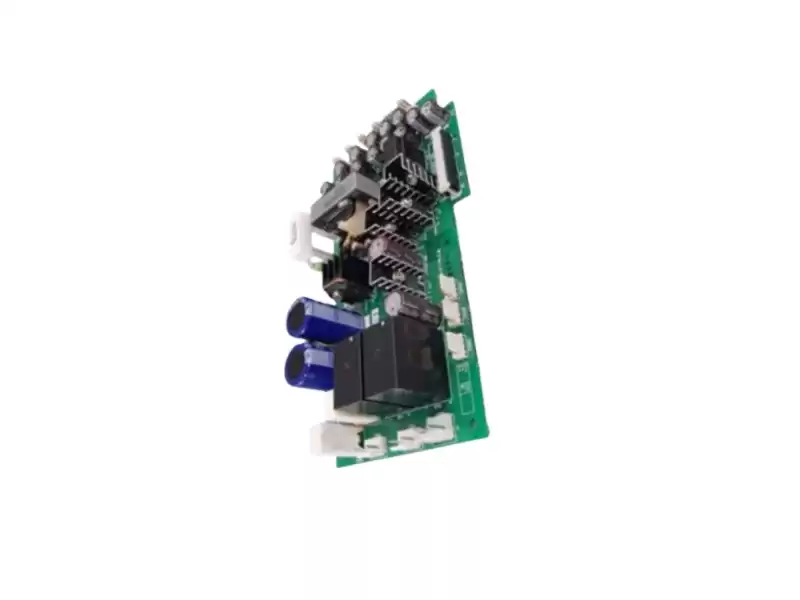

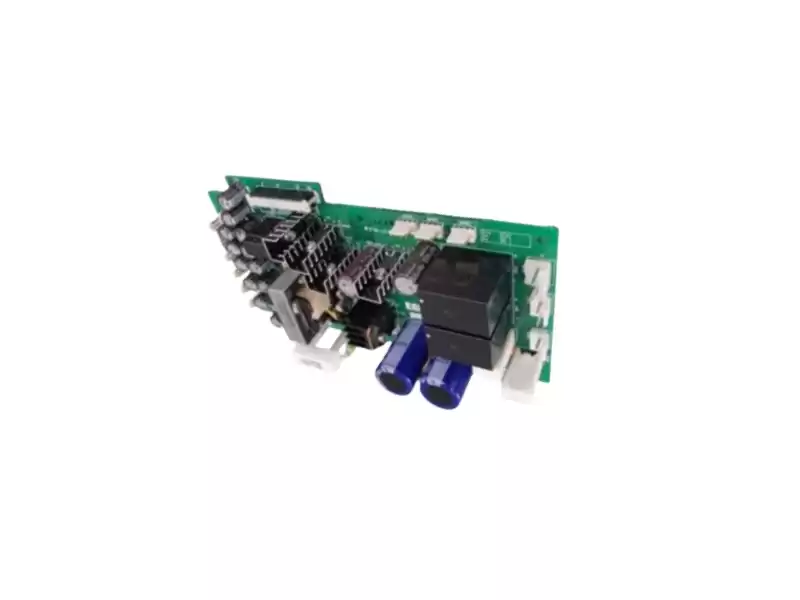

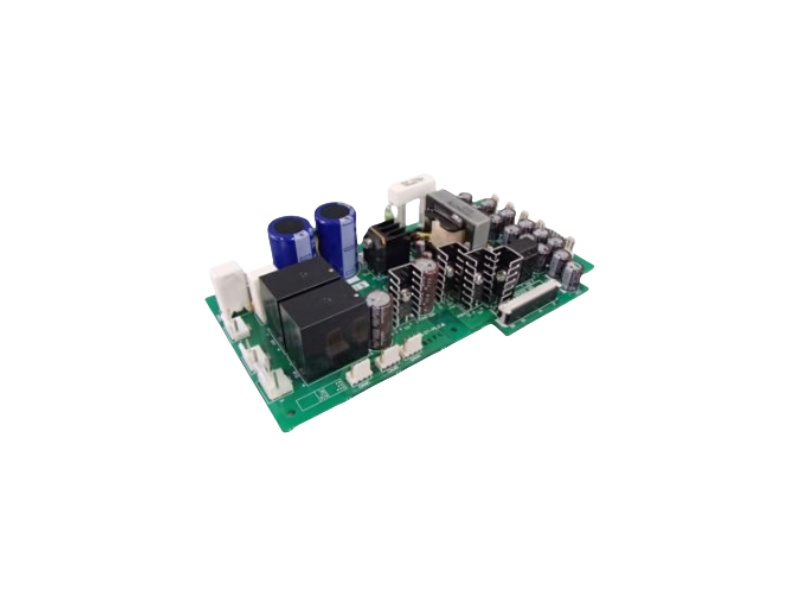

R02S02L03 |Analog Output Module

PLC Autocontroller | Sales Manager May| Wechat id: dcsfcs

Overview

Model: R02S02L03 — Honeywell Series Analog Output Module. This module is used in industrial automation systems

to provide accurate analog signal output to actuators or downstream control systems. The documentation indicates it is suitable

for 12-24V DC input and compatible with 4-20mA/0-20mA/0-10V signal types.

Core Specifications

Module Type: Analog Output Module

Input Voltage Range: 12-24VDC

Output Signal Type: 4-20mA, 0-20mA, 0-10V

Maximum Output Current: Approx. 25-50mA

Response Time: ≤1ms

Accuracy: ±1% full-scale

Communication Interface: Analog Output Module

Compatible Modules and Accessories List

ü Control System Platform: Suitable as an analog output unit in Honeywell DCS or PLC modular control systems.

ü Drives/Actuators: Compatible with devices supporting analog inputs such as valves, servo drives, and frequency converters, outputting 4-20mA or 0-10V signals for control.

ü Installation Structure: Modules are typically installed in a cabinet or control system backplane/busbar. It is recommended to confirm wiring, heat dissipation, grounding, and protection levels according to the original manufacturer's instructions.

ü Replacement/Stock Parts: Due to limited information, it is recommended to confirm the year of manufacture, version number, firmware status, and whether it is a brand new original part when purchasing.

Other models of the same brand

All products are brand new and original,with a 12-month warranty.
