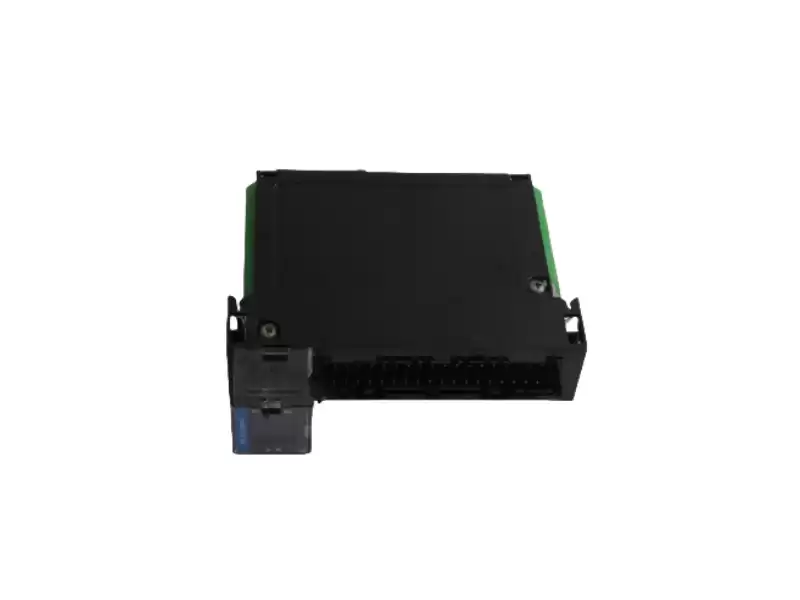

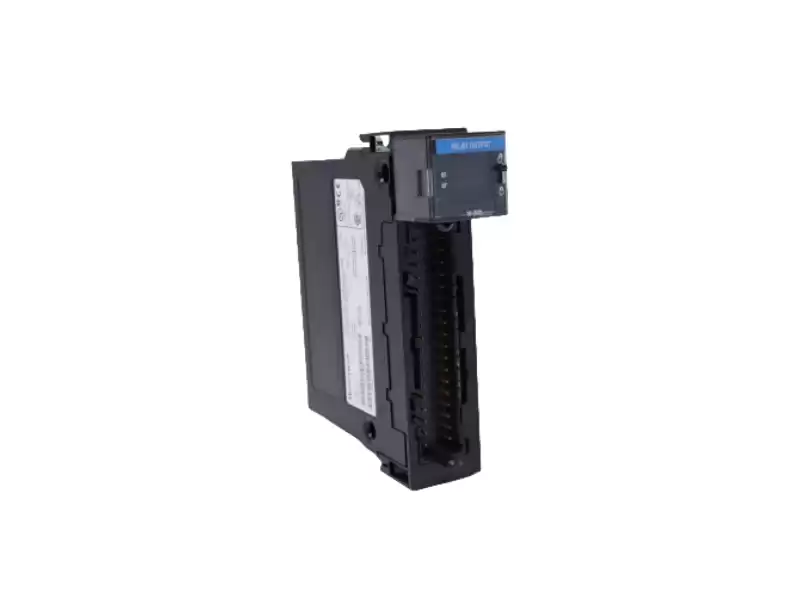

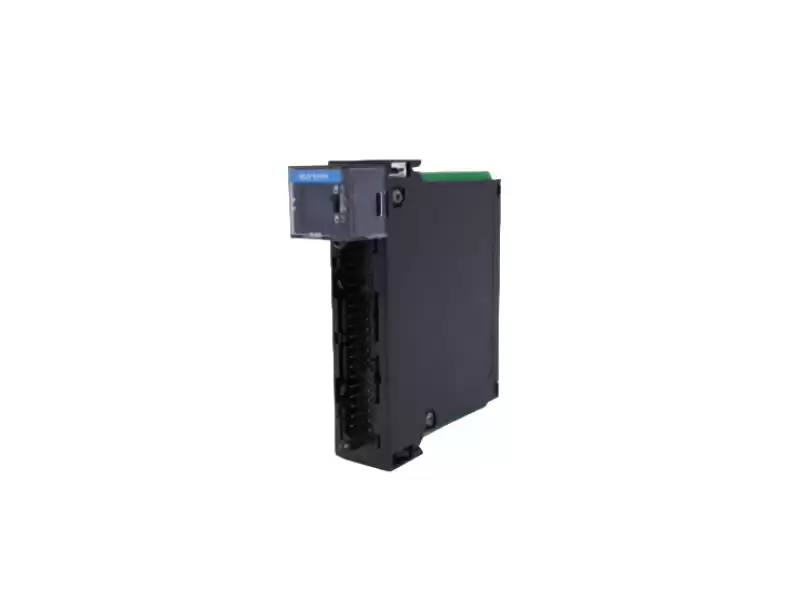

TK-ORC161|relay output module
PLC Autocontroller| Sales Manager May | Wechat id: dcsfcs
Product Identification
Model: TK-ORC161
Manufacturer:Honeywell
Type/Function: output module
140XBP00600 — backplane expander module
The TK-ORC161 is a relay output module for industrial control systems, designed specifically for large-scale
distributed control systems (DCS) or PLC architectures. This module converts controller logic signals into electrical
signals that directly drive actuators or loads in field devices. It supports multi-channel output, isolation protection,
and relay switching, making it suitable for control scenarios such as pumps, valves, alarms, motors, or other automated equipment.
Key Technical Specifications
Model: TK-ORC161
Module Type: Relay Output Module
Number of Output Channels: 8 channels (independent relay outputs)
Rated Voltage/Power Supply: 24 V DC
Output Current Rating/Contacts: Approximately ≤ 1 A per channel (250 V AC or higher)
Operating Temperature Range: -40°C to +85°C
Application Areas: Used in industrial process control systems in petrochemical, chemical, and oil refineries to control actuators such as pumps, valves, and fans.
Output modules in large-scale distributed control systems (DCS) in the power, water treatment, and energy industries.
On/off drive control of various equipment in automated production lines in the pharmaceutical and food industries.
As a replacement or expansion module in factory automation system upgrades or retrofit projects to enhance system output capabilities.
More options
Power Module: TSXPSY2600 / TSXPSY5500: Provides 5V DC power
Input Module: TSXDEZ32D2K / TSXAEY1600: Digital and analog input
Output Module: TSXDSY16T2K / TSXASY4100: Digital and analog output
Communication Module: TSXETY4103 / TSXCPP110: Ethernet and communication expansion
Memory Card: TSXMRPC001M: Program and data storage expansion
