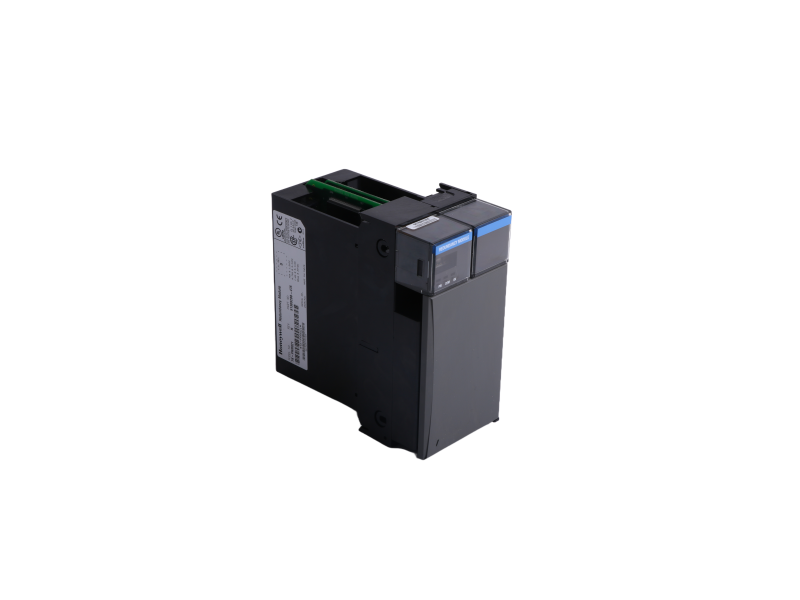

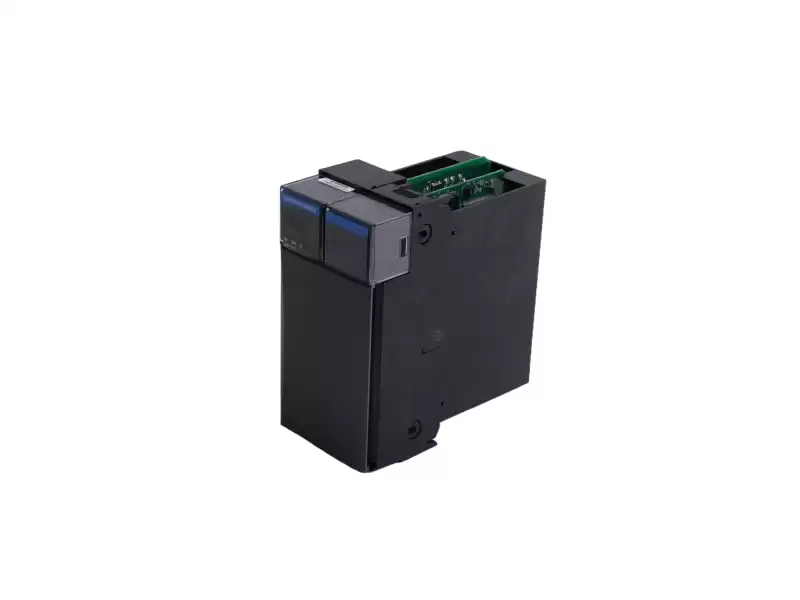

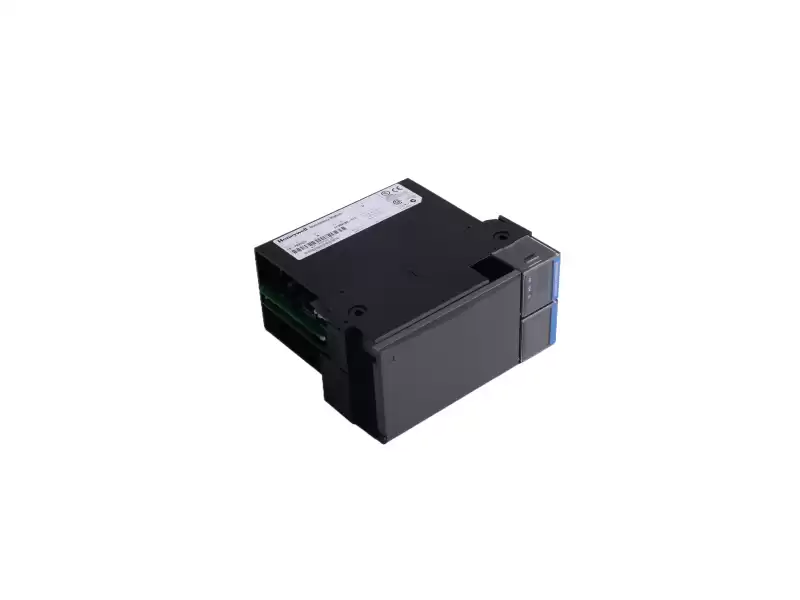

The Honeywell TK-PRR021 51309288-475 is a three-channel relay-output safety-isolator module that sits between the DCS and hazardous-area field devices. Certified to IECEx/ATEX and engineered for Experion® PKS & TPS, it delivers galvanic isolation, intrinsic safety and online diagnostics in a DIN-rail, hot-swappable package—perfect for ESD, fire-&-gas and sequential control applications where a single spark is one too many.
Key Specifications
|
Parameter
|
Value
|
|
Part Number
|
TK-PRR021 51309288-475
|
|
Function
|
3-ch relay output safety isolator
|
|
Supply
|
24 VDC (20…30 VDC)
|
|
Consumption
|
≈ 5 W
|
|
Output
|
3 × SPDT, 2 A 250 VAC / 30 VDC (resistive)
|
|
Isolation
|
3.7 kV AC input-to-output, ch-to-ch
|
|
Certifications
|
IECEx, ATEX, UL, CSA – Zone 1 / Cl I Div 2
|
|
Temp Range
|
20 °C…+60 °C (op) / 40 °C…+80 °C (store)
|
|
Mounting
|
DIN-rail, 22.5 mm wide
|
|
Weight
|
≈ 0.4 kg
|
|
Diagnostics
|
Coil-open, contact-sticky feedback
|
Competitive Edge vs. Conventional Safety Barriers
|
Feature
|
TK-PRR021
|
Typical zener barrier + relay
|
|
Channels per unit
|
3 isolated SPDT
|
1 non-isolated
|
|
Built-in relays
|
Yes – plug-in
|
External required
|
|
Diagnostic reporting
|
Back-plane & LED
|
None
|
|
Hot-swap
|
Supported
|
No
|
|
Certifications
|
IECEx/ATEX/UL
|
ATEX only (often)
|
Typical Wiring Snapshot
DCS DO → TK-PRR021 input → 3.7 kV isolation → SPDT relay → hazardous-area solenoid / alarm / motor starter.
One module replaces three external relays + three barriers, shaving 30 % panel space and 25 % wiring hours.
Shipping & Support
✔ In-stock today – ships within 24 h
✔ 12-month replacement warranty
✔ Factory-sealed or certified-refurb units
✔ Free remote loop-check assistance
Contact May – Sales Manager
E-mail: ab@mooreplc.com
Phone / WhatsApp: +86-18106909650
WeChat ID: dcsfcs
Need a quote or SIL-loop calculation? Message May and receive a formal quotation in under 30 minutes.
