FC-TSAO-0220M| Field Termination Assembly (FTA) Module
PLC Autocontroller| Sales Manager May | Wechat id: dcsfcs
monitoring and control module

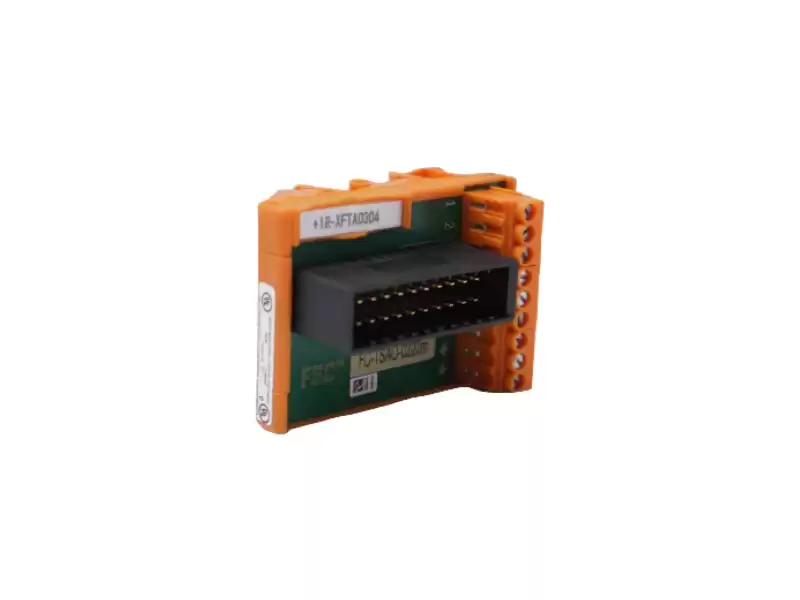

Model: FC-TSAO-0220M — Safe Digital Output Field Termination Assembly (FTA) Module. This module is
used in Honeywell safety systems to provide termination cabling functionality from output channels to field devices.
This module, designated "Safe Digital Output FTA," can be used for safe output cabling connections.
Key Technical Specifications
Number of Output Channels: 8 channels
Output Terminals:
Maximum Voltage: Up to 36VDC (based on "Maximum voltage: 36Vdc")
Maximum Continuous Current/Channel: Approximately 1.5A per channel
Wiring/Installation: Supports DIN rail TS32/TS35×7.5mm; screw terminals can accommodate wires up to approximately 2.5mm² in diameter; wire stripping length approximately 7mm; tightening torque approximately 0.5Nm.
Module Dimensions/Rail Length: Approximately 61mm (2.40in) rail length
Status/Compatible Systems: Belongs to the Honeywell Safety Instrumented Systems family for field output terminal modules
Compatible modules and accessories
|
High-safety-level design:
|
Suitable for output wiring in safety systems, meeting the reliability and wiring requirements of safety systems for output channels.
|
|
Modular terminal blocks:
|
As output terminal blocks, they facilitate field wiring, maintenance, and replacement.
|
|
Strong brand and system compatibility:
|
As part of the Honeywell safety system ecosystem, it integrates easily with its safety instrumented systems, and its maintenance system is mature.
|
|
Easy and standardized installation:
|
Utilizes standard DIN rail mounting and standardized terminal wiring specifications, facilitating field installation and subsequent maintenance.
|
