What it is

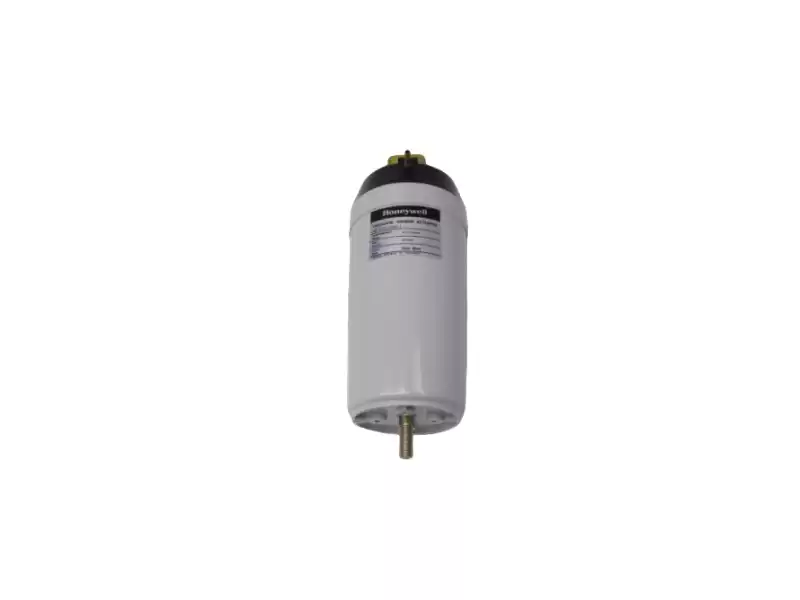

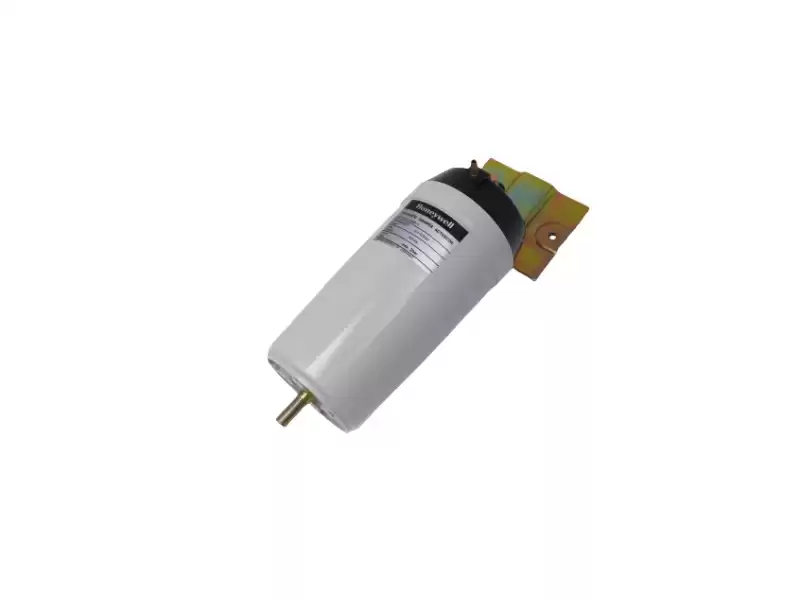

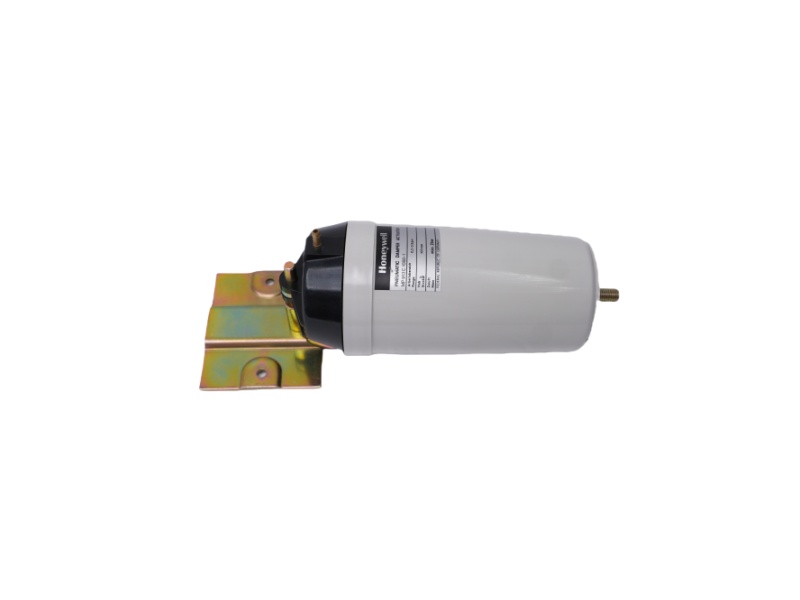

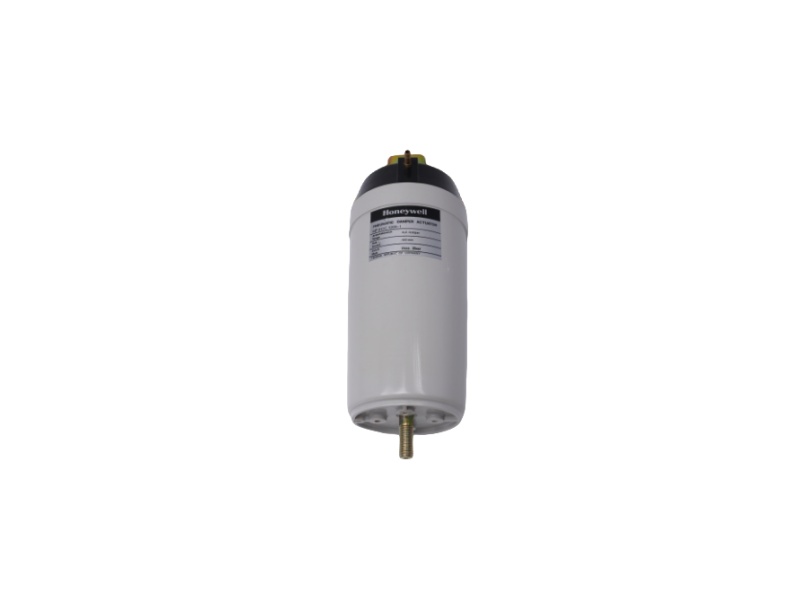

The MP913C1066-1 is a model in Honeywell's MP913B,C series of pneumatic actuators. It belongs to the MP913C
class (effective diaphragm area approximately 45 cm²) and features a 100 mm stroke.
This module is a rolling diaphragm piston pneumatic actuator suitable for applications such as airflow control valves, mixing
chambers, and variable air volume systems. It converts air pressure signals into force or stroke motion to drive dampers or valves in ventilation systems.
Technical Specifications
Model MP913C1066-1
Effective diaphragm area: 45 cm² (Type C series)
Stroke: 100 mm
Maximum working pressure: 1.4 bar (20 psi)
Maximum safe pressure: 2.0 bar (28 psi)
Ambient temperature range: -30 °C … +70 °C
Shaft connection: M10
Air hose connector: 6 × 1 mm or ¼ inch outer diameter polyethylene tubing
Product Advantages
Based on our 20 years of field service experience, this module offers the following advantages:
Ø Long stroke, high thrust: A 100 mm stroke combined with a 45 cm² diaphragm area provides excellent driving force and mechanical stroke capability.
Ø Harsh environment adaptability: Operating temperature range of -30 °C to +70 °C, suitable for various industrial environments.
Ø Reliable structure and long service life: Rolling diaphragm piston structure, maintenance-free design, reducing maintenance frequency and downtime risk.
Ø Easy installation: Standard M10 shaft connection and common pipe connection methods facilitate replacement and rapid field deployment.
Ø Strong system compatibility: Suitable for HVAC, VAV, ventilation dampers, and mixing chamber systems, making it the preferred choice for industrial pneumatic control systems.
