Horizontal Ampoule Sticker Labeling Machine

The Horizontal Labeling Machine is suitable for the labeling of various round bottles that cannot stand up. It can be equipped with, feeding and labeling structures according to customer needs. The body can be designed to tilt forward or backward. It is suitable for small round bottles. The diameter can be determined by the product.




The Horizontal Labeling Machine can meet the labeling needs of various small round bottles, like cosmetic ampoules and injections. You can manually put bottles or add a feeding hopper. This Ampoule Labeling Machine also be connected with a printing machine to print out the batch number, expiration date and production date, up to three lines.


Main Features:

 ◆ Horizontal Labeling Machine is made of stainless steel and aluminum, meeting the GMP Standard.

 ◆ Imported electric elements, stable performance, low failure rate.

 ◆ This Horizontal Sticker Labeling Machine is controlled by PLC touch screen, the labeling position and labeling length can be changed only by adjusting the product and label through the touch screen, without manual adjustment of the electric eye.

 ◆ Built-in precision speed indicator and counter, which can be showed out the touch screen

 ◆ No bottle no label, automatic alarm when achieve leakage label.

 ◆ The Ampoule Labeling Machine offers an incredible output of 120 bottles every minute.

 ◆ The conveyor belt is customized according to the needs of the product bottles, so that the production line can get the best efficiency.

 ◆ Vision systems for checking Barcode, presence or absence of coding or pharma code on labels.

 ◆ The label sensor photocell is used for space detection between two labels to detect the space wisely.

 ◆ Using rectification technology to correct rounded label, high superposition of both ends of labels attached, the rolling label covering offers smooth labeling free of any wrinkles or bubbles, thus bettering packaging quality.

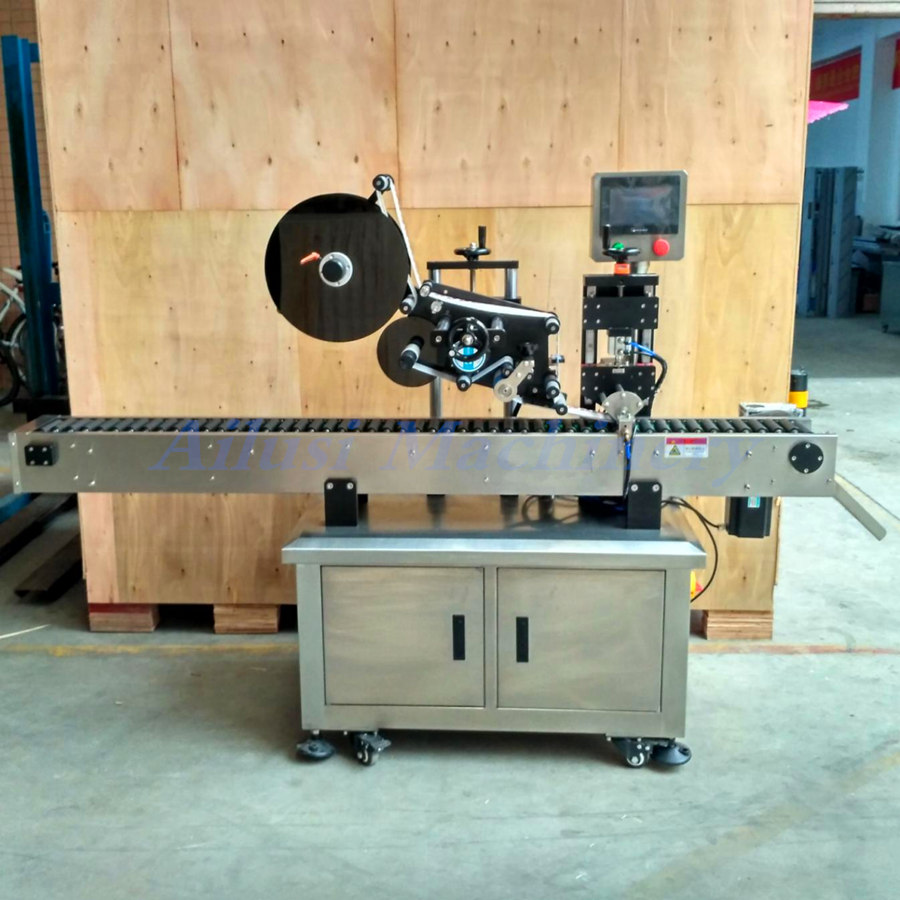

Horizontal Labeling Machine


Process:

put the bottles to Feed hopper (option)—>delivery products on conveyor—>Product inspection (automatically)—>product label (automatically)—>delivery products(automatically)—>collect the labeled bottles.

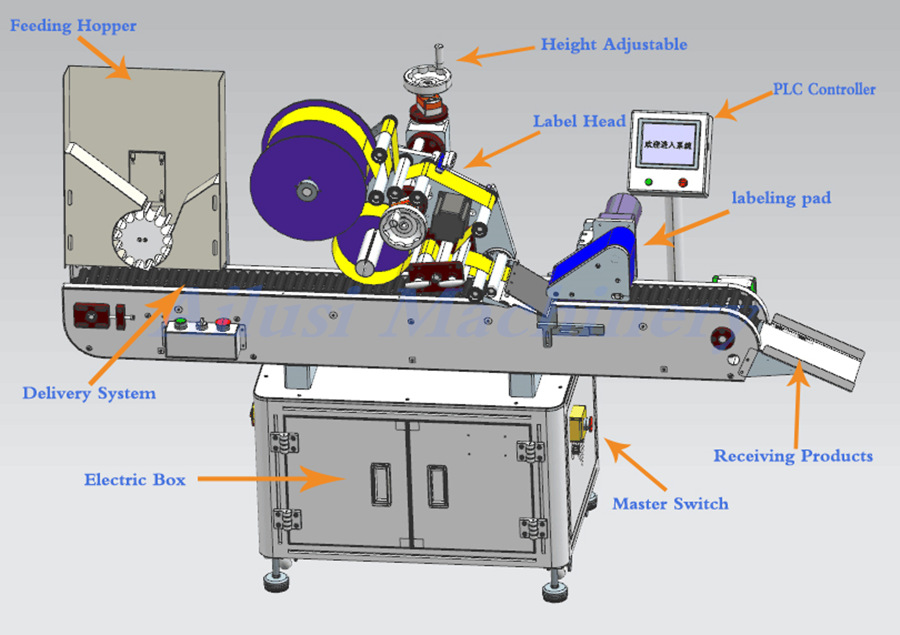

Horizontal Sticker Labeling Machine


Technical Parameters:

 1. Voltage: 110V/220V, Single Phase, 50Hz/60Hz

 2. Power: 1200KW

 3. Labeling accuracy: ±1.0mm

 4. Bottle range: Φ5mm~Φ30mm

 5. Productivity: 50~120 Bottles per minutes

 6. Dimensions: 2000mm(L)*800mm(W)*1400mm(H)

 7. Net weight: 200KG

 8. Feeding Hopper is optional

 9. Printer is optional


Package & Delivery:

To ensure the quality of our service, we will follow the standard package upon delivery:

1. All products before delivery should be tested by assembly and commissioning engineers. Our salesman need to send the tested video to the customer to ensure working well of the machines. Precision parts need to be packed in film or carton.

2. All products are packed in wooden boxes. Firmly fix the edge of the foot of the equipment to adapt the machine to the requirements of loading and uploading.

packing of Ampoule Labeling Machine


Our Servers:

We provide Turn-key project service to customer.

1. Factory Layout design;

2. Factory Decoration based on GMP standard;

3. Formula of products;

4. Raw material etc;

5. Machine design, whole production line from A to Z;

6. Shipping service, FOB, CFR, CIF etc;

7. Installation service. Training service, Maintenance service.

Ailusi for Ampoule Sticker Machine
