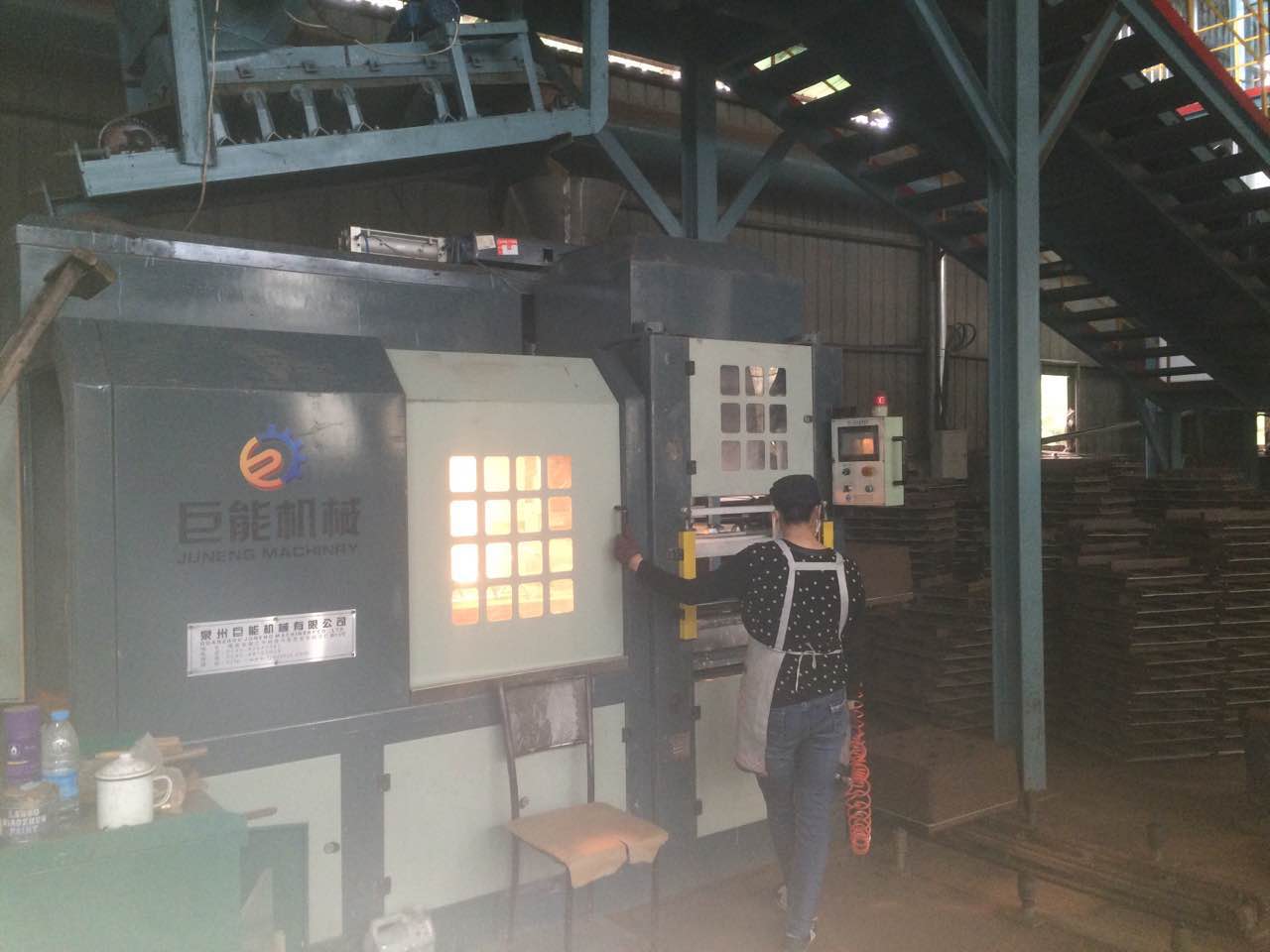

Horizontal Automatic Sand Molding Casting Machine

It adopts special technology, and works up and down at the same time. At the same time, sand is added and the sand type is uniform. It has the characteristics of no sand box and no pressure iron.



Horizontal Automatic Sand Molding Casting Machine.

Basic Parameter :


Model No. JN3545

Control Type

PLC
Customized Customized

Condition

New

Automatic Grade
Automatic

Certification

CE, ISO9001

Type

Sand Casting

Trademark

JUNENG

Transport Package

Container

Specification

5*3*2.8

Origin

China

HS Code

84748090


We can customize the machine according to customer size.

Giant energy molding machine features:

1. It adopts single-station four-column structure, integrated control technology of collecting machine, electricity, liquid and gas to realize intelligent one-button operation, and the operation is simple and convenient;

2. The uninterrupted position detecting device is used to realize the adjustable function of the sand thickness parameter, which has the characteristics of sand saving and high precision.

3. It can adjust the pressure and speed of the molding according to the requirements of different castings, and has high forming hardness. Short molding time;

4. It adopts special technology,cope and drag work at the same time, as well as sand adding, moulding sand are even.It has the characteristics of no -flaskand no-pressure weight needed.

5. Adopt human-machine touch interface to facilitate equipment operation and parameter setting; with fault monitoring and display function, realize fault identification and troubleshooting method prompt, convenient maintenance ;with production statistics and report function, easy for production management; with operation help function It is convenient for equipment operation and production;

6. Adopt automatic blowing and automatic spray stripping hydraulic system to reduce labor intensity and improve production efficiency;

7. The guide column adopts centralized lubrication to prolong the life of the guide post and improve the modeling accuracy;

8. The electrical system adopts imported components, which is reliable in use, high in precision, less in failure and long in life;

9. The operation position adopts advanced light curtain protection to ensure the safety of the operator.

Molding Machine
