Hot Dip Galvanizing Ground Screw Manufacturer, China Ground Screw Pile Factory

Use Kseng ground screw pile can prevents any long-lasting damage to the soil and means that the construction site can be used again after the building has been dismantled.



  • CertificationISO9001/CE/UL/SGS
  • Service Life25 Years
  • Warranty10 Years
  • MaterialHot Dip Galvanizing Q235B

Hot Dip Galvanizing Ground Screw Manufacturer, China Screw Pile Factory


Use Kseng ground screw pile can prevents any long-lasting damage to the soil and means that the construction site can be used again after the building has been dismantled.

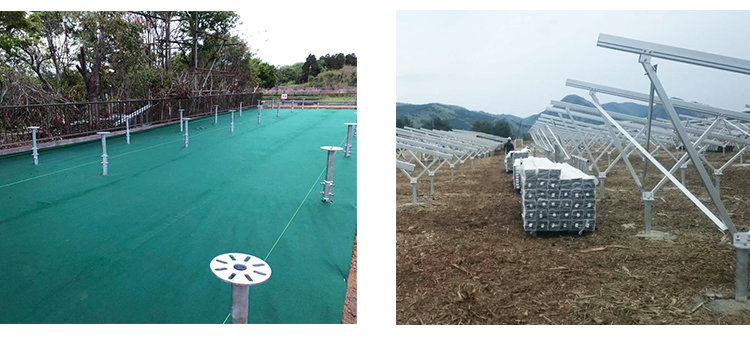

Ground screws have the advantages of eco-economy, rapid installation, long life, recyclable, suitable for various types of soil, and so on, perfectly replacing the traditional cement foundation. Widely used in houses, wooden houses, light steel structure building foundation, wooden walkways, billboards, bus stops, power towers, railways, roads, stadiums, substations, home fences, guardrails, fences, and other foundations such as photovoltaic solar energy, solar lights, streetlights, housing buildings, rides, etc

Kseng`s ground screw have the SGS test report about the chemical composition analysis and have 10 years warranty, 25 years service life.

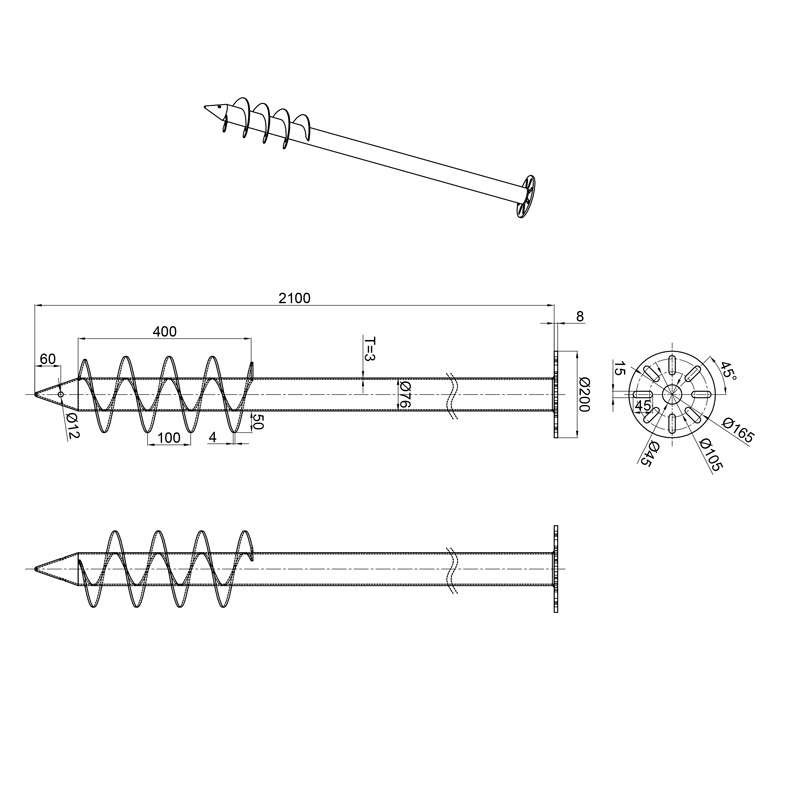

  Material:     Hot Dip Galvanizing Q235B, Q195
  Outer Diameter:
   76mm
  Thickness:    3-3.5mm
  Length:    1000-3000mm
  Flange Diameter:    200mm & 220mm
  Blade Ground Screw:    4 Blades Ground Screw
  Warranty:    10 Years
  Service Life:    25 Years
  Application:   Wooden Houses/Solar Mounting Foundation/Wooden Walkways



Product Tags Galvanized Screw Piles          ground screw piles          Hot Dipped Galvanized Lag Screws          ground screw foundation          ground screws for summer house          ground screw post anchor
