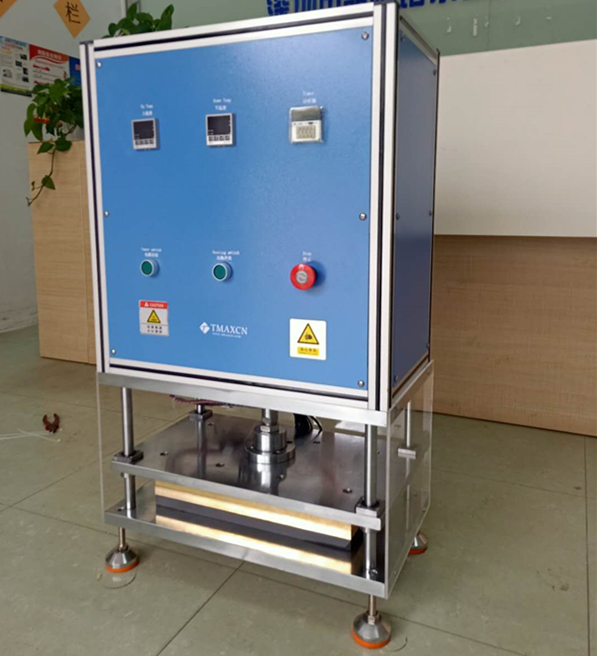

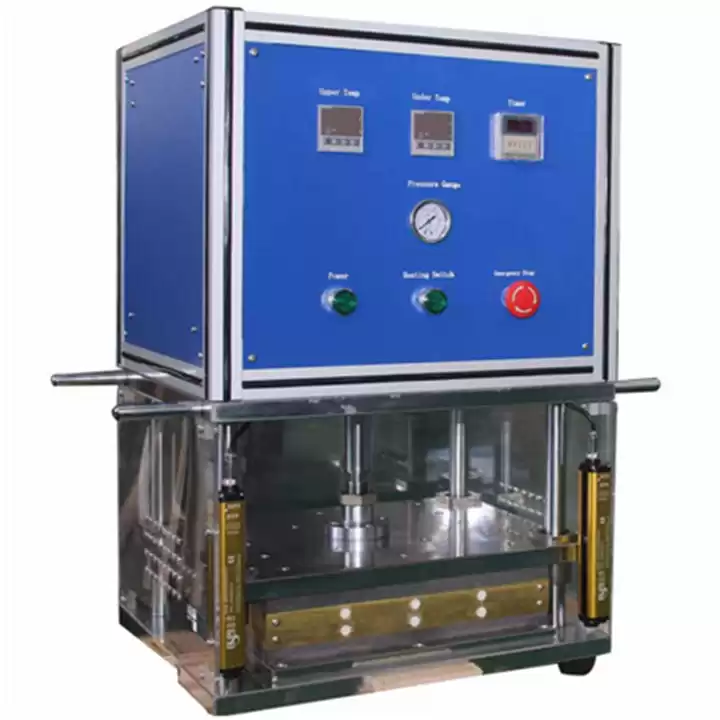

Hot Press Forming Machine for Pouch Cell Case Battery Lab Research
TMAX-RY200 Hot press machine is mainly used for battery core hot press shaping after winding process, easy for battery core into the pouch or shell.
Using the hot press shaping machine after battery Winding On the template by pressure and heat to reduce batteries thickness with finalize design, reducing the battery core short circuit rate and ensure the consistency of the thickness of the finished batteries
|
Model
|
Hot Press Machine TMAX -RY200
|
|
Source voltage
|
AC 220V/110V, 50/50HZ
|
|
Power
|
2000W
|
|
Warranty
|
One year limited warranty with lifetime support
|
|
Structure
|
The LCD display shows Temperature
Using light curtain protection device, guarantee security
With abnormal temperature alarm function
Hot-pressing time, temperature, pressure can be adjusted
Use automatic and semi-automatic control, easy to operate
|
|
Air source
|
0.5-0.8MPa
|
|
Hot press area
|
200*200mm
|
|
Heating TEM
|
RT-250℃, adjustable
|
|
TEM accuracy
|
±2℃
|
|
Pressure
|
1T adjustable
|
|
Dimension(L*W*H)
|
350*320*550mm
|
|
Weight
|
About 90kg
|
