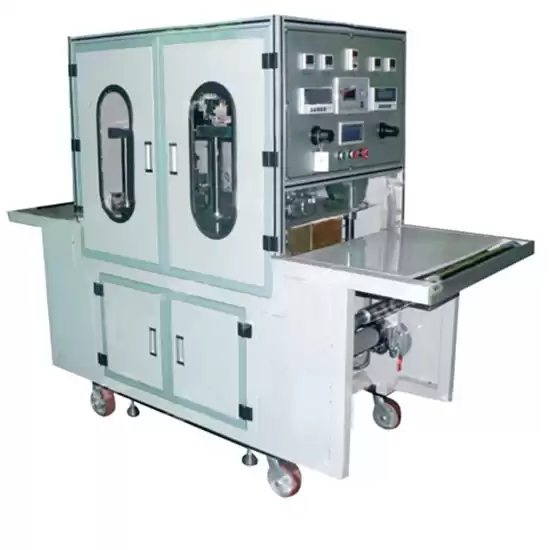

Hot Press Machine For Polymer Battery Core
Functions
● Apply to lithium battery auto hot-pressing plastic soft package, cold press finalize the sharp.
Features
● Separable structure gas rose axis, forklift load/unload material strap roll material;
● Hot-pressing temperature: room temperature up to -120° C is adjustable, can be set up compensation, heating at a single point in the template control accuracy ± - 3 ° C;
● Presetting cold, hot pressing temperature and the holding time, have abnormal temperature alarm function;
● Automatic control is realized by using PLC, touch screen man-machine dialogue, convenient operation and setting;
● Top and bottom template parallelism: ±- 0.02 mm, three pieces non-carbon paper are available down out evenly when in the 1 T settle pressure, temperature;
● Hot pressing plate for copper, greatly improving the heat transfer rate, improve the uniformity of the different location of the hot platen temperature;
● Mylar circulating feeding, front-rear stability, reduce the time of manual handling;
● Mylar volume gas rose axis loading, winding speed is adjustable, gas rose axis can be separated, convenient load Mylar.
Technical Parameters(for reference)：
|
ITEM
|
HB-LRY300
|
HB-LRY350
|
|
Measures
|
(L*W*H)2300*800*1800mm
|
(L*W*H)2300*800*1800mm
|
|
Weight
|
About 850Kg
|
About 850Kg
|
|
Power
|
AC220V 50HZ, 7.5KW
|
AC220V 50HZ, 7.5KW
|
|
Air source
|
≧0.6Mpa,20L/Min
|
≧0.6Mpa,20L/Min
|
|
Applicable range
|
L≤300mm w≤300mm
|
L≤350mm w≤350mm
|
|
Capacity
|
Depend on cold & hot press time
|
Depend on cold & hot press time
|
|
Action
|
≧99%
|
≧99%
|
