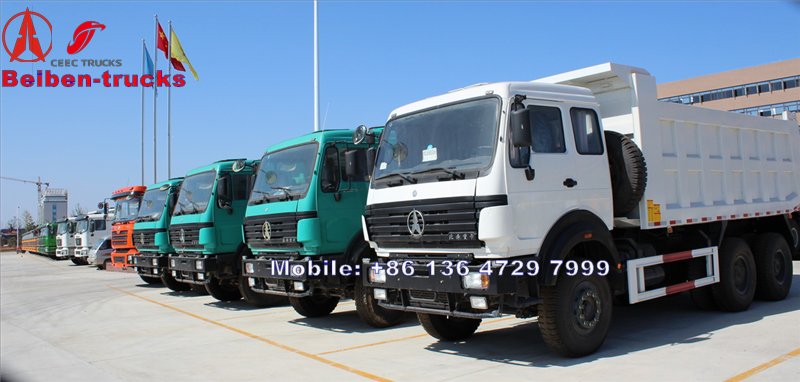

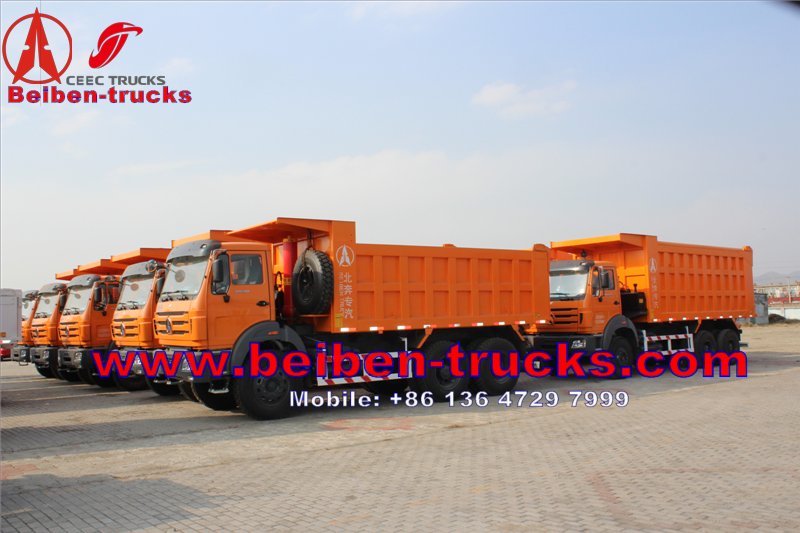

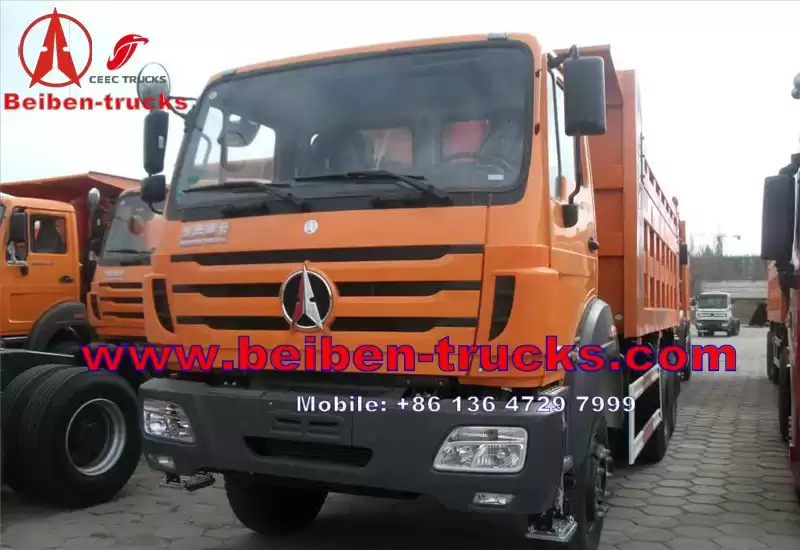

Beiben Engineering Dump truck
City pioneer and trailblazer

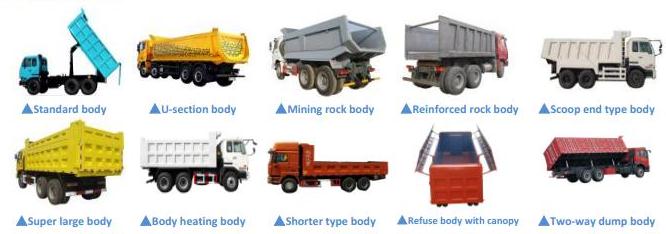

(This series mainly refers to the north benz 6*4 drive dump truck with internal length less than 6.5m, including middle lifting
north benz 10 wheeler dump truck and north benz U-shaped dump truck)
Bump resistance, distortion resistance, high efficiency, and sturdiness
Mercedes Benz Technology WEICHAI engine 340hp & 380hp North Benz Dump Truck
Traction type: 6X4
Driving type: LHD (RHD is optioned)
Main Specification
|
Model
|
ND3255B41J
|
Condition
|
New
|
Drive type
|
6×4
|
Brand
|
Beiben Dump Truck
|
Steering Wheel Type
|
LHD(Left hand drive) (RHD is in option)
|

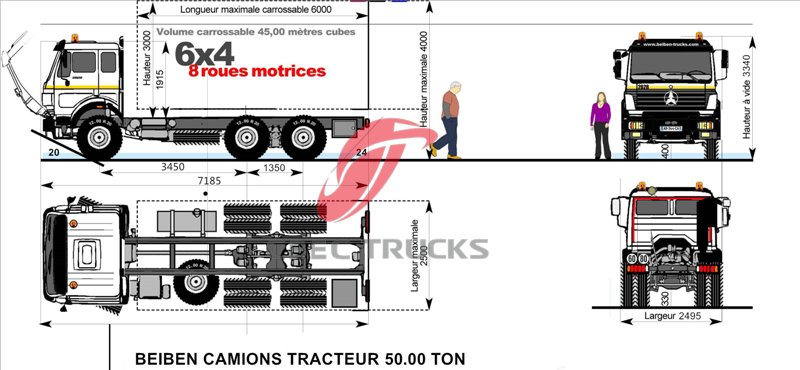

Overall Dimension(mm)
|
8880×2500×3430
|
The total mass(Kg)
|
25000
|
Kerb weight(kg)
|
12200
|
Wheel base(mm)
|
4100+1450
|
Dimension of cargo body(mm)
|
L×W×H
|
5800/6000×2300×1500
|
Thickness of steel plate
|
Bottom: Side:
|
Capacity
|
|
Tipping system
|
HYVA Front tipping system
|
Fuel Type
|
Diesel
|
Engine
|
Type
|
Weichai brand,WP10.380E32
Inline six-cylinder,
water-cooled, four-stroke,
turbocharged inter-cooled
Direct injection
With the exhaust brake
|
Emission standard
|
EURO III
|
Horse power
|
380hp
|
Maximum output
|
280Kw @ 2200 rpm
|
maximum torque
|
1600N.m
|
Displacement(L)
|
9.726
|
|
Full load minimum fuel consumption rate
|
196g/kW.h
|
Cabin
|
BENZ technology NG80B Flat ceiling and Long Cab,
One sleeper,
Exterior trim: NG80B front grid plate, Metal bumper, three steps, sun visor, new mirror system.
Manual glass lift, adjustable steering wheel, manual door locks. with air-conditioning system,
|
Steering
|
ZJ120D driver sit at the Left hand side (LHD) ZF8098 is optional
|
Transmission
|
FAST mechanical type 12JS200T 12 Speed Transmission,12 forward and 2 reverse
|
Clutch
|
Ø430mm dry diaphragm spring diameter clutch Hydraulic boosting
|
Front axle
|
Benz technology front axle (7.5 ton), plate (disc) brake
|
Driving axle
|
Benz technology drive axle (13ton) double reduction driving axle, inter-wheel differential lock, axle differential lock.
Speed Ratio:5.921 (5.263 is optional)
|
Brake
|
Service brake: Brake gap can be adjusted automatically, double circulation air brake system
Parking brake: Potential springs pressing on middle and reel wheels
Engine brake: Engine exhaust brake(EVB)
|
TYRE Size
|
12.00R20 radial tyre
No. tire: 10+1 spare
|
Suspension system
|
Leaf spring type
|
Leaf Spring of Front/Rear
|
10/13
|
Air condition includes
|
YES
|
Fuel tank
|
300L Iron
|
Others
|
Power takeoff, Water tank guardrail, Draw hook, Desert air filter, simple rear axle fender
|
Color
|
As the customer request
|

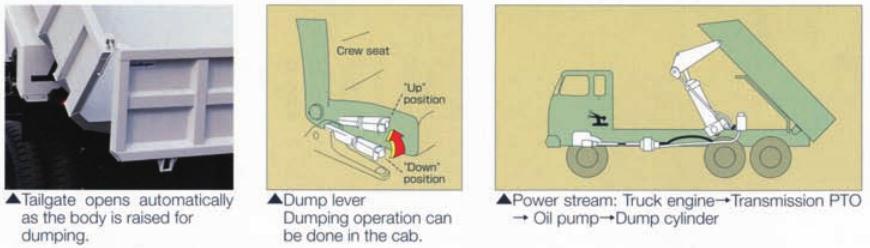

■Working principle

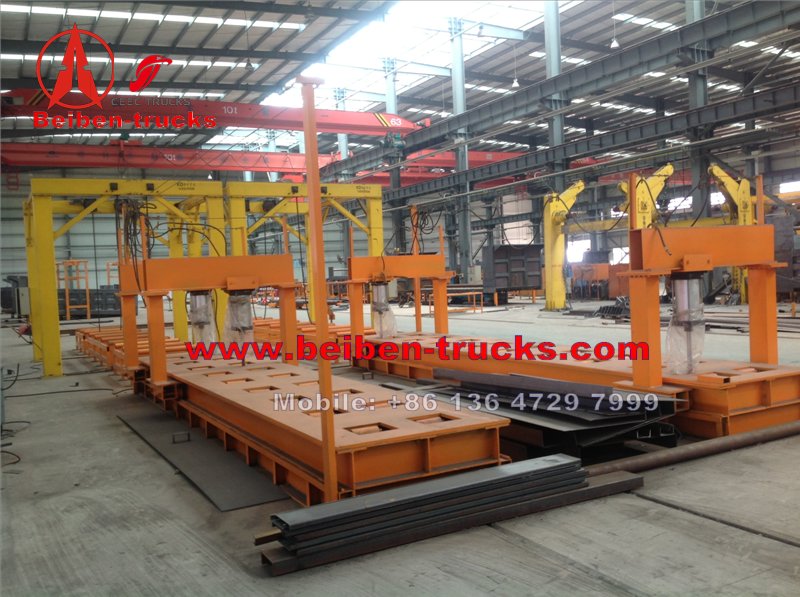

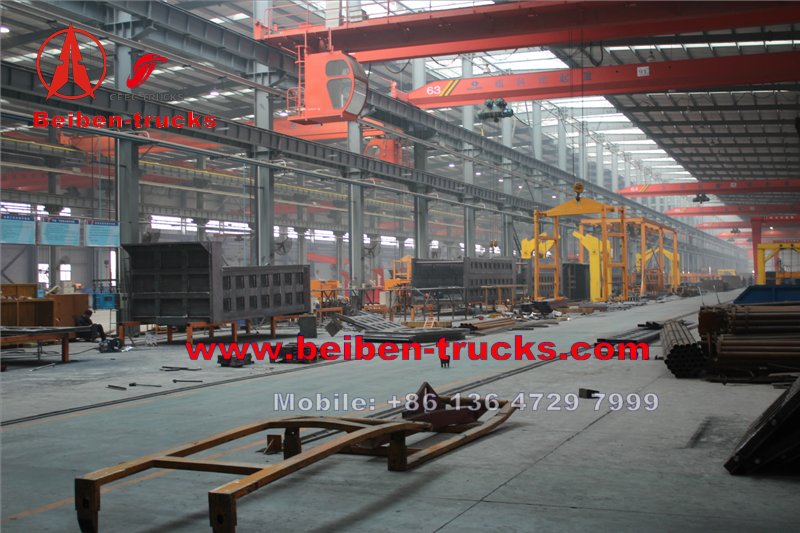

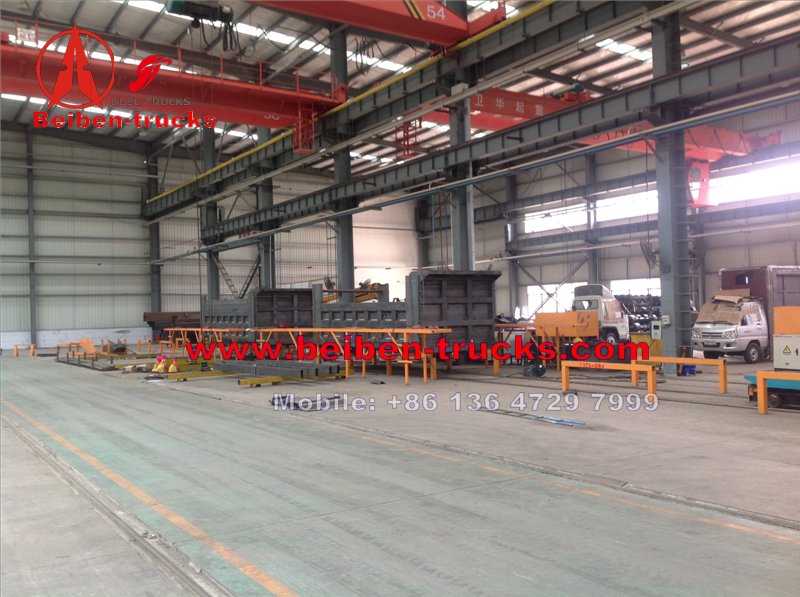

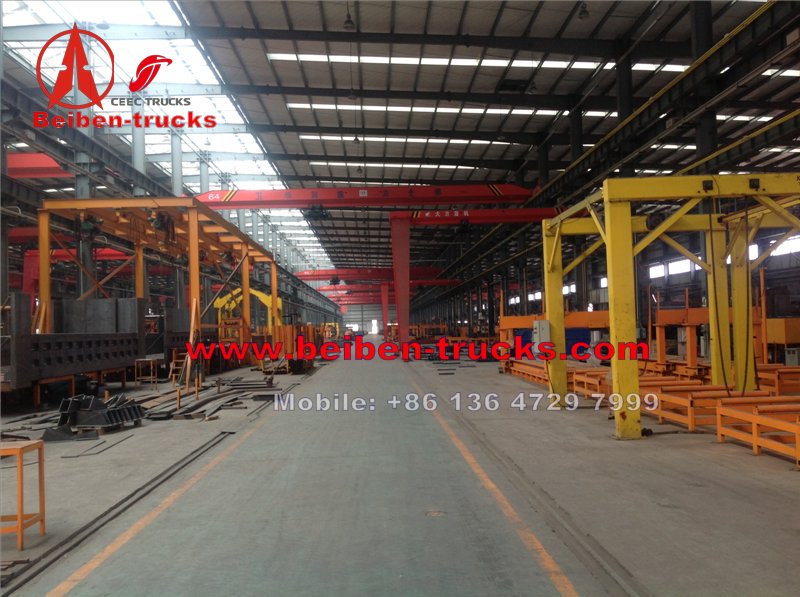

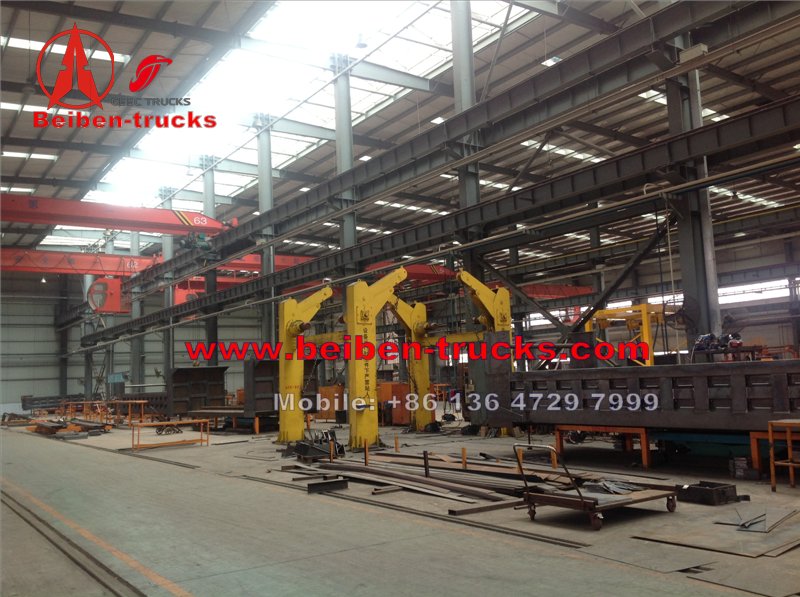

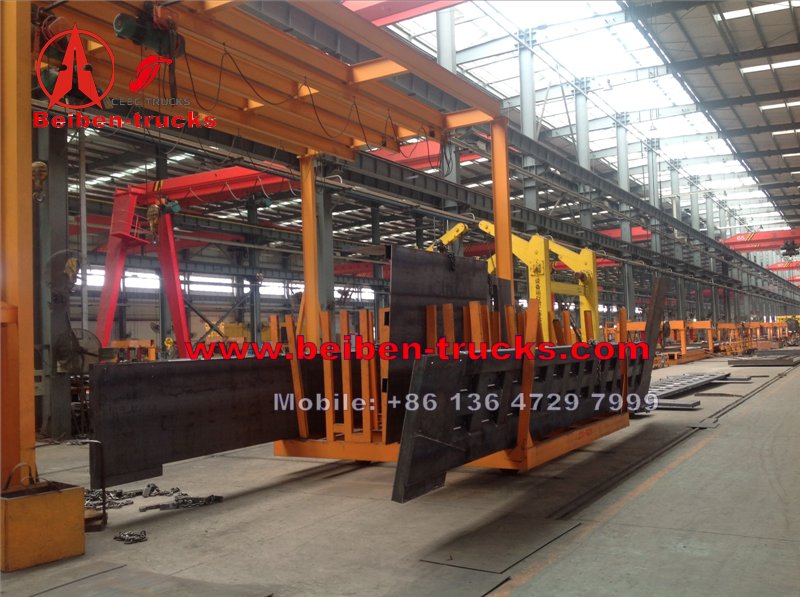

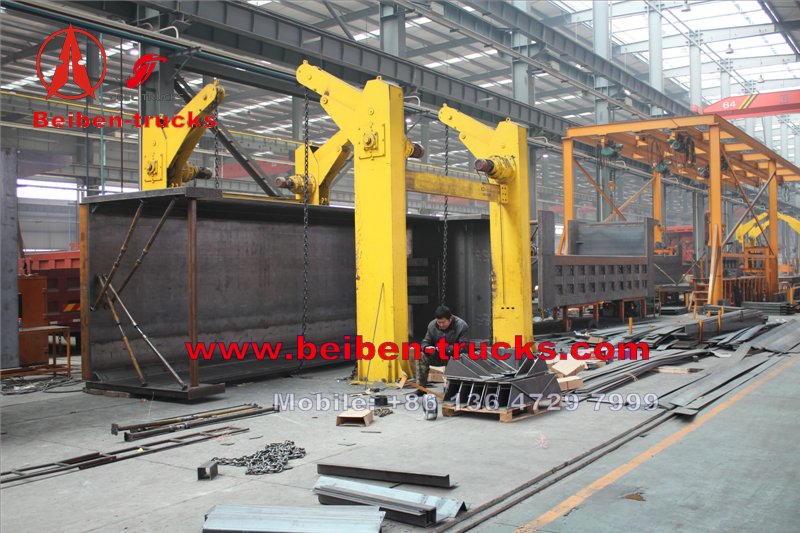

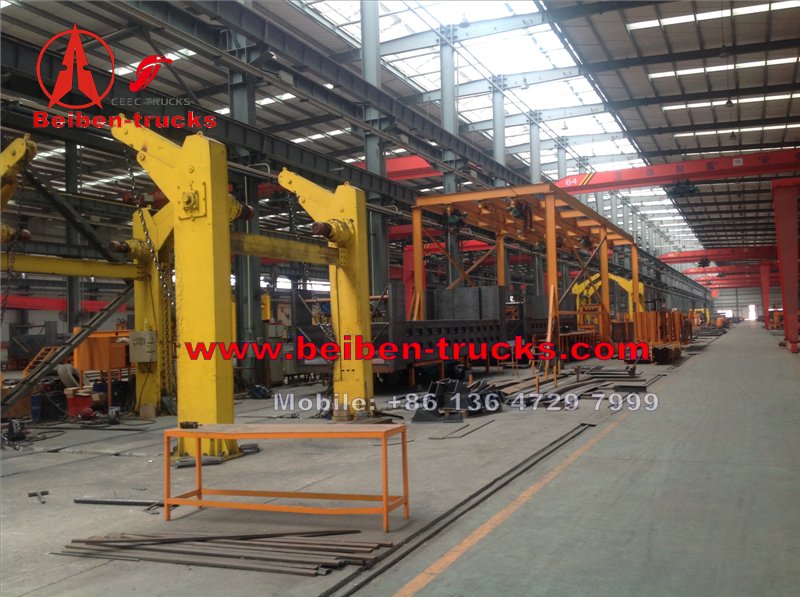

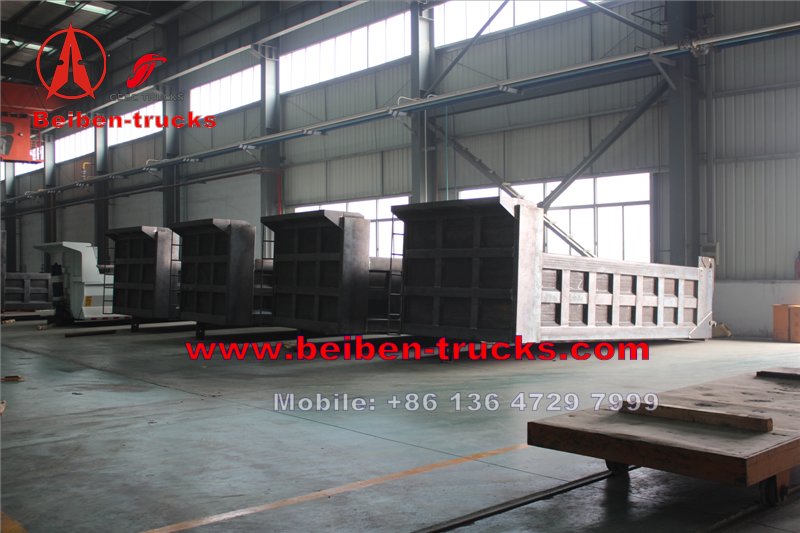

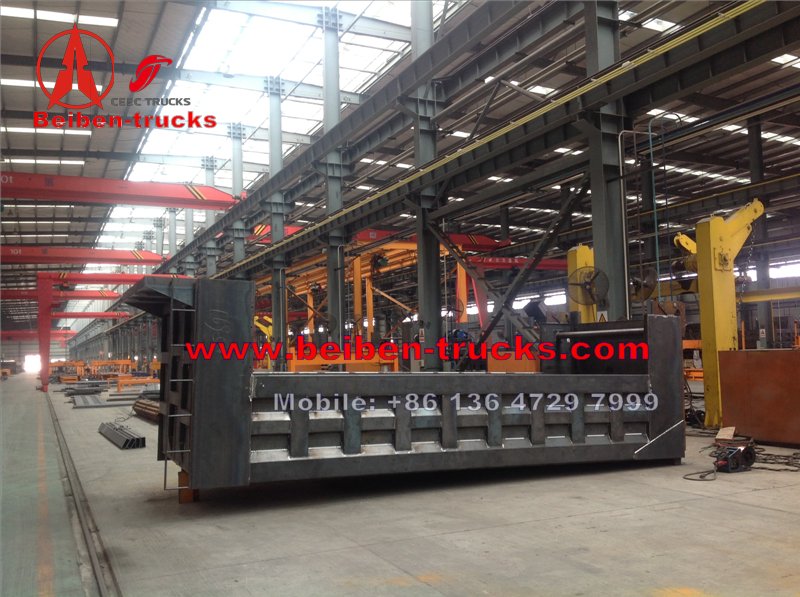

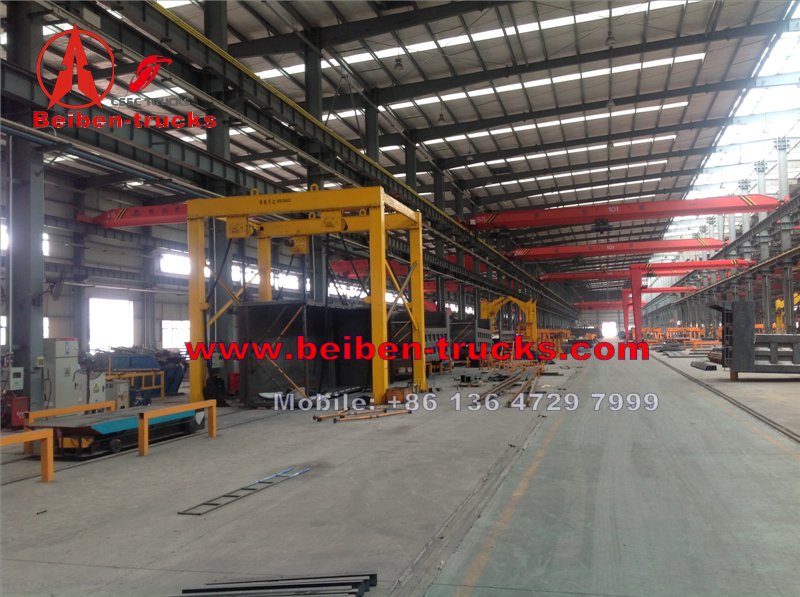

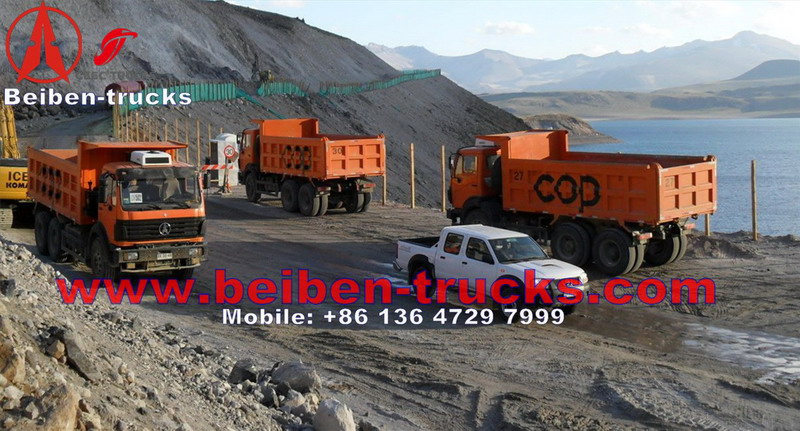

Beiben dump truck in great order from our plant.
The best beiben dump trucks, beiben 6*4 dump truck, beiben 8*4 dump truck manufacturer in china.
