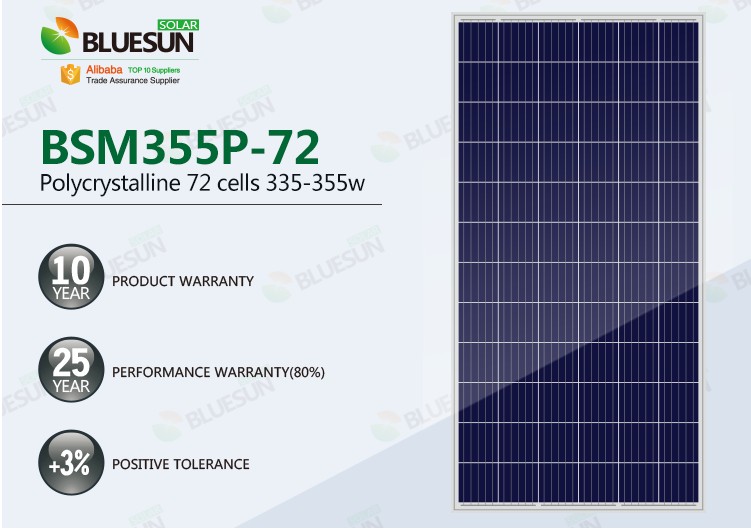

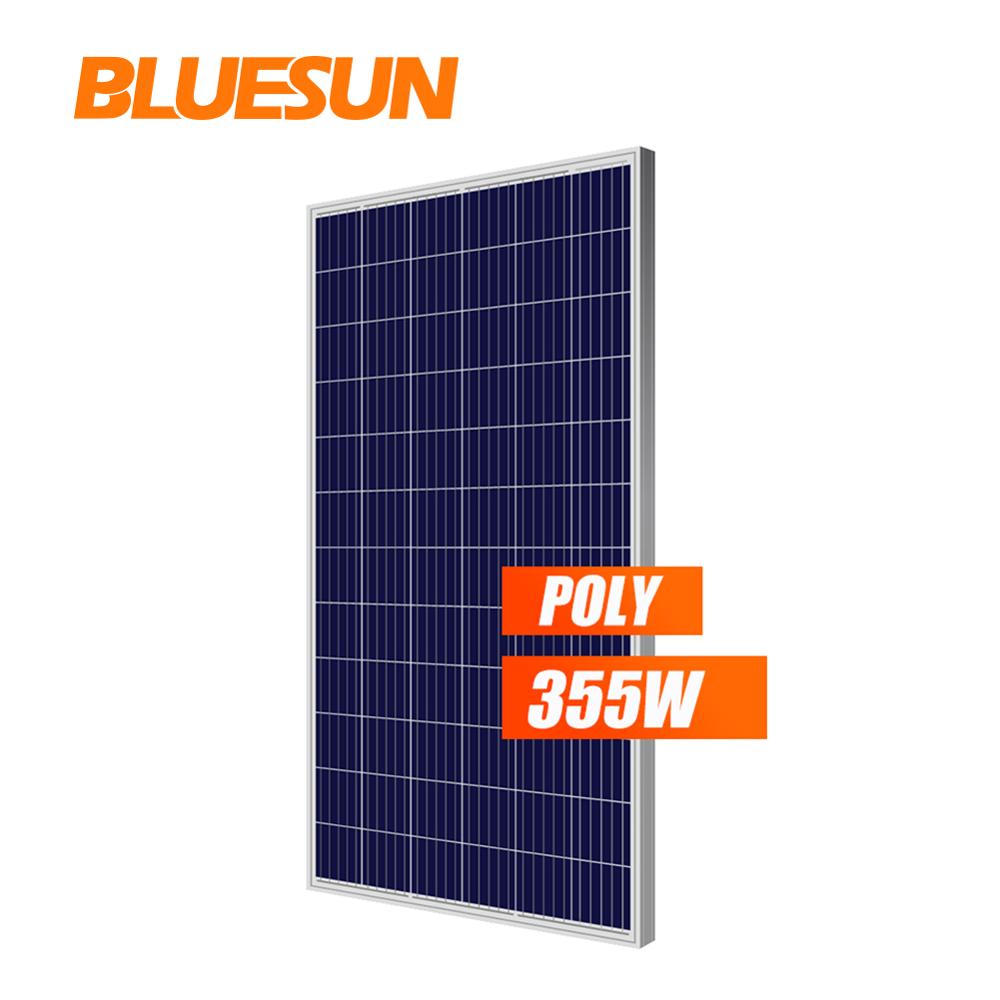

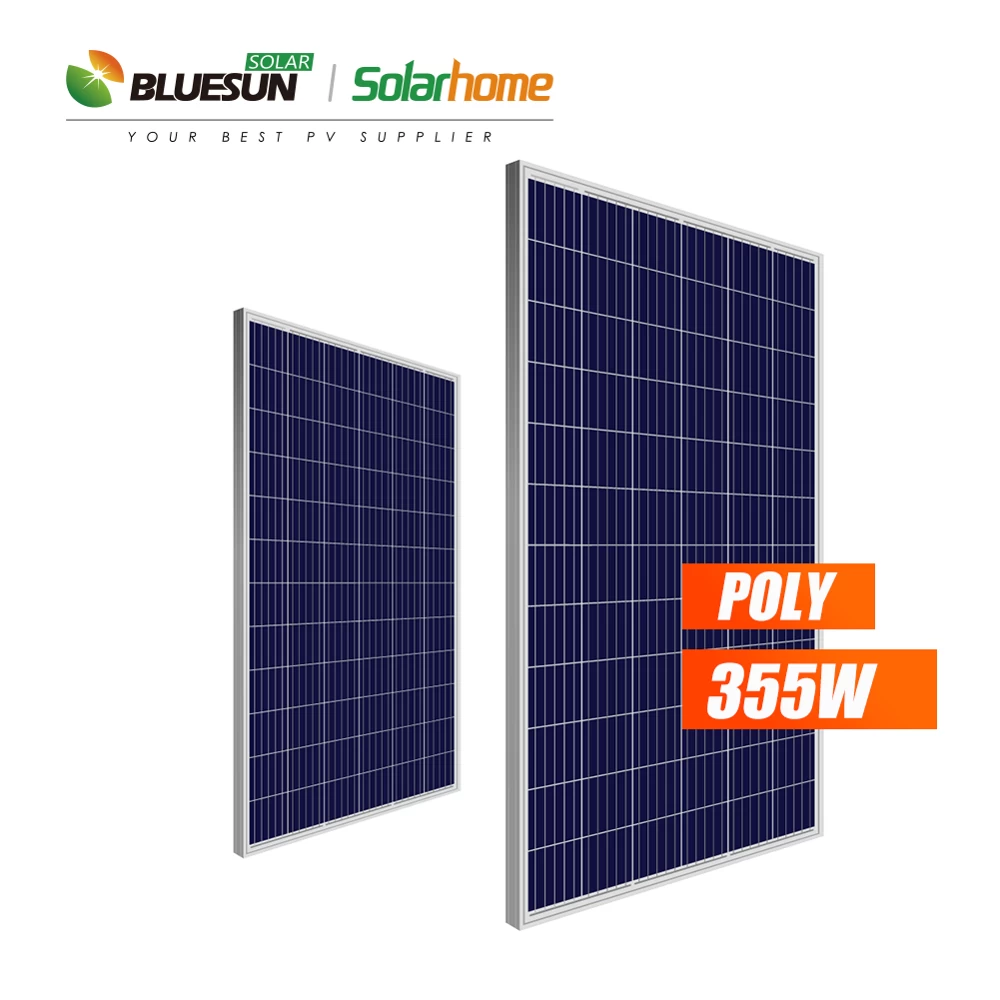

5BB poly solar panel 330w 340w 350w 72 cells series for solar power off grid / on grid system use
|
Moduel
|
BSM335P
|
BSM340P
|
BSM345P
|
BSM350P
|
BSM355P
|
|
Rated Maximum Power at STC
|
335
|
340
|
345
|
350
|
355
|
|
Open Circuit Voltage(Voc/V)
|
46.3
|
46.5
|
46.7
|
46.9
|
47
|
|
Maximum PowerVoltage(Vmp/V)
|
37.9
|
38.2
|
38.4
|
38.5
|
38.7
|
|
Short Circuit Current(Isc/A)
|
8.84
|
8.9
|
9
|
9.09
|
9.17
|
|
Maximum Power Current(Imp/A)
|
9.36
|
9.45
|
9.5
|
9.6
|
9.69
|
|
Module Efficiency(%)
|
17.3
|
17.5
|
17.8
|
18
|
18.3
|
|
Power Tolerance
|
-0~+5%
|
|
Standard Test Condition(STC)
|
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5
|
Solar Panel Packing:
26 pieces per pallet , 300 pieces per 20ft container , 660 pieces per 40HQ container
Polycrystalline 355W solar panels and 72 cells series solar modules , normal package is 2 pieces per carton , we accept customized or OEM package too.
Reliable Quality:
* Positive power tolerance: 0~+ 5W
* 100% EL double-inspection ensures modules are defects free
* Modules binned by current to improve system performance
