Product Advantages:
Maintenance-Free ,Absorbent Glass Mat Technology
Low Self Discharge
Long Designed service Life
Excellent Discharge Performance
Environment Friendliness
Wide suitability of ambient temperature range
Data Sheet
|
Model
|
FL-GE-100AH
|
FL-GE-150AH
|
FL-GE-200AH
|
|
Cells Per Unit
|
6
|
|
Voltage Per Unit
|
12
|
|
Capacity
|
100Ah @10hr-rate to 1.80V per
cell @ 25℃
|
150Ah @10hr-rate to 1.80V per
cell @ 25℃
|
200Ah @10hr-rate to 1.80V per
cell @ 25℃
|
|
Weight
|
31.0KG
|
43.5KG
|
61.0KG
|
|
Max.
Discharge Current
|
1000A(5 sec)
|
1500A(5 sec)
|
1000A(5 sec)
|
|
Internal Resistance
|
Approx. 5.5mΩ
|
Approx. 5.0 mΩ
|
Approx. 4.5 mΩ
|
|
Recommended Maximum Charging Current Limit
|
30A
|
45A
|
60A
|
|
Operating Temperature Range
|
Discharge: -20℃~60℃ Charge:0℃~50℃ Storage:-20℃~60℃
|
|
Normal Operating Temperature Range
|
25℃ ± 5 ℃
|
|
Float charging Voltage
|
13.6 to 13.8V DC/unit Average at 25℃
|
|
Equalization and Cycle Service
|
14.4to 14.6V DC/unit Average at 25℃
|
|
Self Discharge
|
Front triminal batteries can be stored for more than 6 months at 25℃. Self-discharge ratio less than 3% per month at 25℃. Please charge batteries before using.
|
|
Size
|
410*109*293MM
|
550*110*290MM
|
550*125*317MM
|

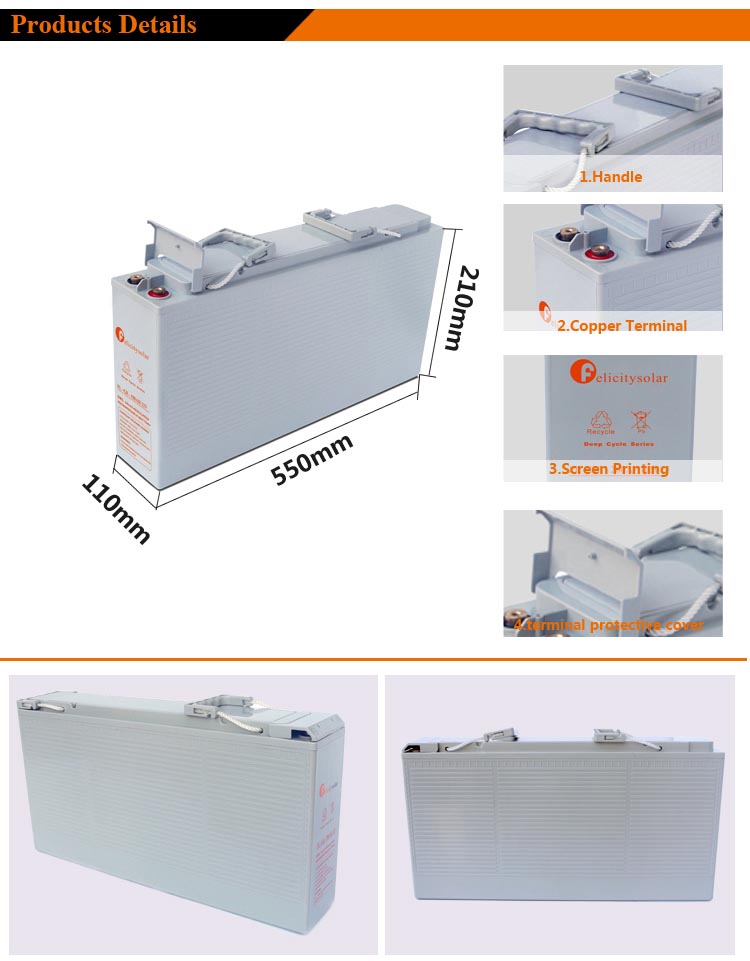

Product Details
Company Profile
Felicitysolar was found in 2007 possessed deep pockets and the professional ability of technology and had formed many modern solar panel production lines, LED street light production lines and the testing systems for solar power and lighting.
Exhibition
Every year we attend many exhibition fair in China and abroad. Such as Canton Fair, HKTDC, SAITEX, etc. We always show the newest, best quality, best selling products in the fair.
