Hot selling 12v 18v 24v 36v 48v 72w single output power supply for LED lighting
Description:

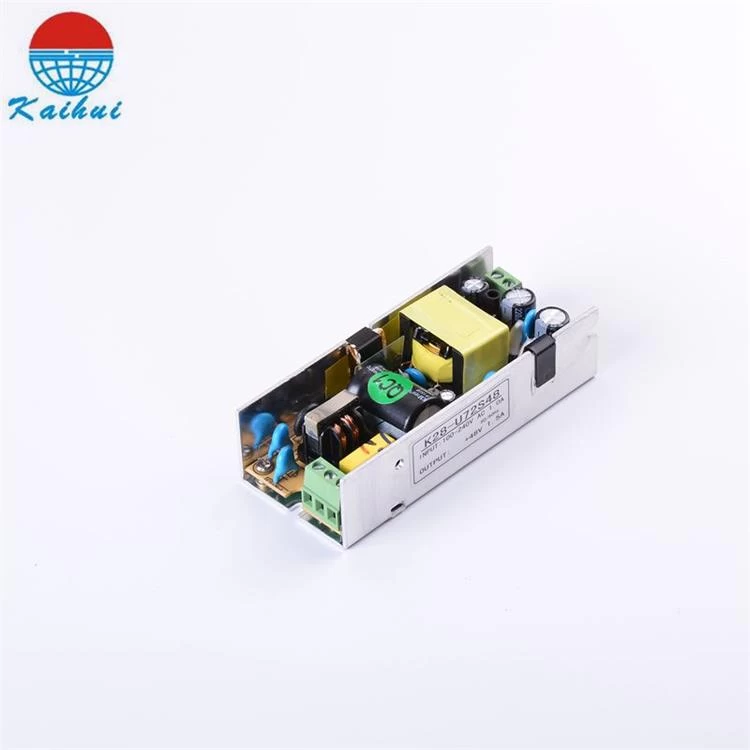

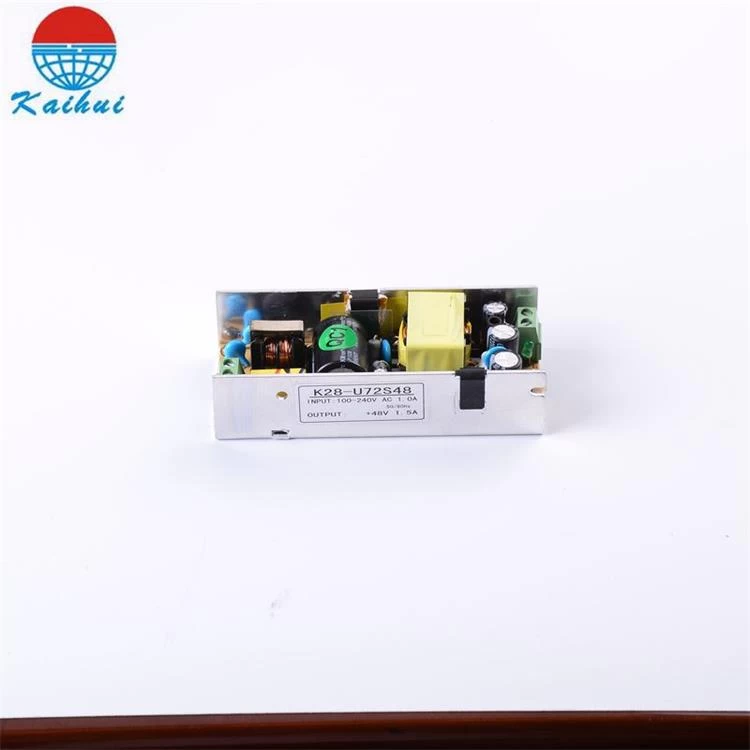

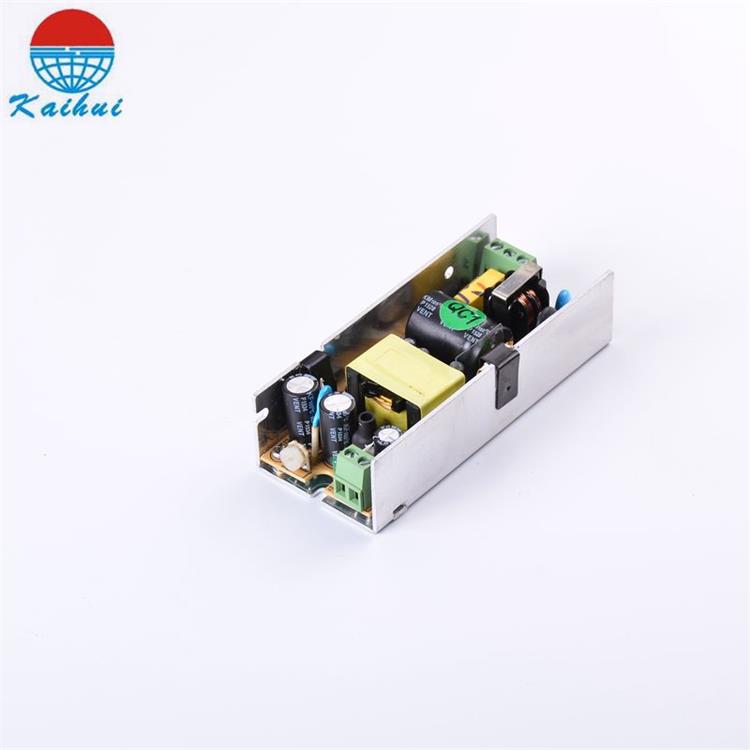

K28-U72S series 72W 24V dc 3A switching power supply has high efficiency, Unversial AC input voltage and 12v 18v 24v 36v 48v output voltage adjustable with 2 years warranty, it can used in Stage lighting and other lighting products.
Features:
1, 72w power supply high efficiency;
2, DC 24V 72w power supply unversial input voltage;
3, 24v 72w power supply short circuit, overload and over voltage protection.
|
Parameter
|
|
Item NO
|
K28-U72S12
|
K28-U72S18
|
K28-U72S24
|
K28-U72S36
|
K28-U72S48
|
|
Output
|
DC Output Voltage
|
+12V
|
+18V
|
+24V
|
+36V
|
+48V
|
|
Output Rated Current
|
6A
|
4A
|
3A
|
2A
|
1.5A
|
|
Current Range
|
0-6A
|
0-4A
|
0-3A
|
0-2A
|
0-1.5A
|
|
Rated Power
|
72W
|
72W
|
72W
|
72W
|
72W
|
|
Ripple & Niose
|
100mVp-p
|
100mVp-p
|
100mVp-p
|
200mVp-p
|
200mVp-p
|
|
DC Adjustable range
|
10.8-13.2V
|
16.2-19.8V
|
21.6-26.4V
|
30-39.6V
|
43.2-52.8V
|
|
Voltage Tolerance
|
±1%
|
|
Line Regulation
|
±0.5%
|
|
Load Regulation
|
±0.5%
|
|
Set up,Rise,Keep up time
|
500mS,50mS,20mS
|
|
Input
|
Voltage Range
|
90V~264V AC
|
|
AC Current
|
0.3A@220Vac
|
|
Input Frequency
|
47-63Hz
|
|
Efficiency
|
>84% @220Vac
|
|
Power Factor
|
------
|
|
Inrush Current
|
Cold Start
15A@115Vac ,30A@230Vac
|
|
Leakage Current
|
<0.35mA@240V
|
|
Protection
|
Over Load Protection
|
110~200% Automatic protection
|
|
Over Voltage Protection
|
------
|
|
Over Temp. Protection
|
------
|
|
Environment
|
Working Temp., Humidity
|
-20~50℃,10~90% RH,No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃,10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety & EMC
|
Safety Standards
|
GB4943，EN60950-1
|
|
Withstand Voltage
|
I/P-O/P:3KV; I/P-FG：1.5KV；O/P-FG:0.5KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
GB9254, EN55022B
|
|
Others
|
Dimension
|
105*44*27mm
|
|
Weight
|
0.1KG
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 0 to 100% load change measured.
|
