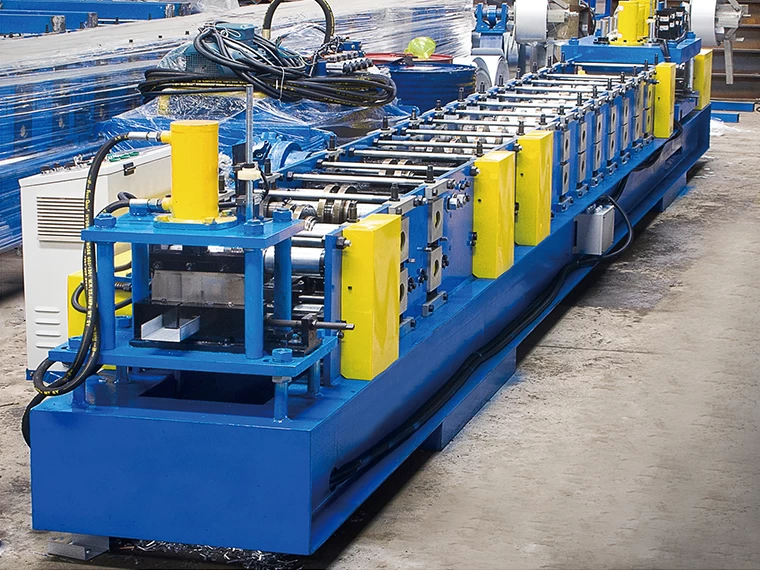

Howick Style Truss Forming Machine

This Truss Forming Machine can produce HOWICK style Frame and Truss(C shape and U shape),including punching holes on line,but without software to save the cost.

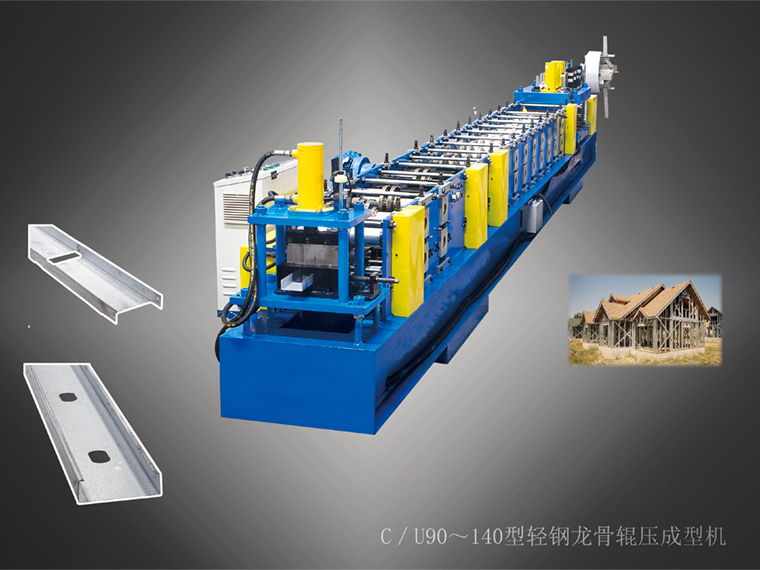

 HOWICK Style Truss Roll Forming Machine



Please Click Here To View The Video

 HOWICK Style Truss Roll Forming Machine



Work Follow

Decoiler →Feeding Guide & Leveling Device→Hydraulic Punching Device→Roll Forming Mill→Hydraulic Post Cutting DeviceExit Rack




(including 4 sets of punching mould:

one for 70x35mm slot big hole on WEB side,three for round hole with diameter 3.5mm,10mm and 16.5mm)

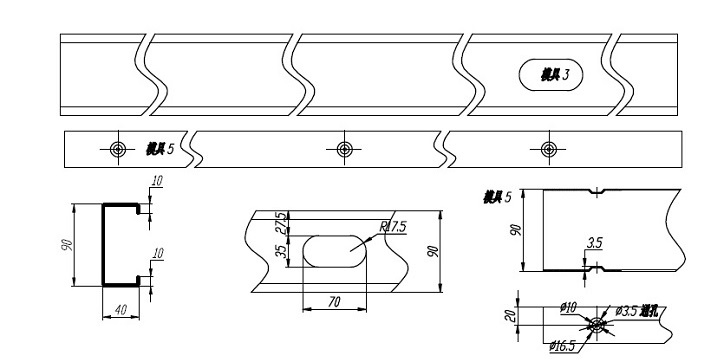

Profile Drawing

Roof and Wall Truss Profile



Main Components

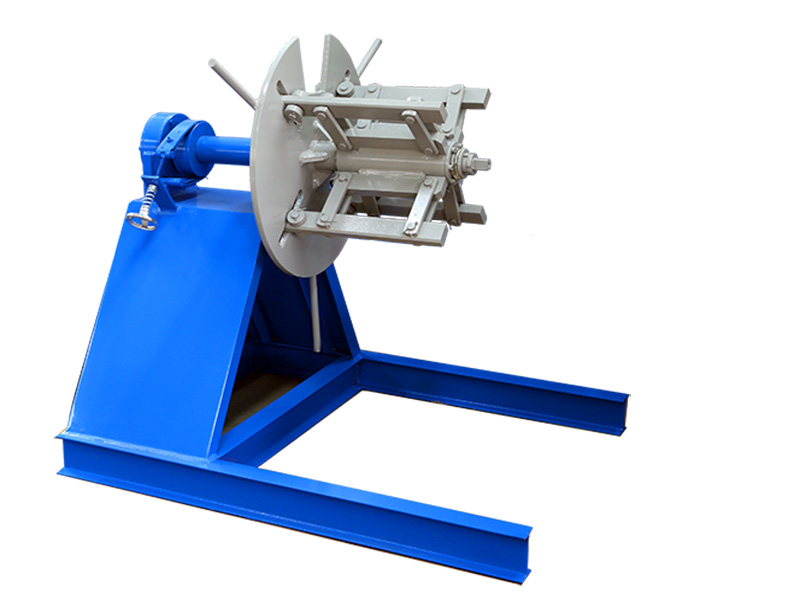

1.Manual Decoiler: one set

Un-powered,Manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 508±30mm
Capacity: 5Ton


2.Leveling & Punching Device


Up Three down Four totally seven roller leveling device
With feeding material guide, body frame made from H450 type steel by welding
Shafts manufactured from 45# steel,Quenching and tempering heat treatment, hard chrome plating.Diameter=φ90mm,precision machined

 HOWICK Style Truss Roll Forming Machine



3.Cold Rolling Mill

Material Thickness:0.75-1.2mm,Material Width: about 183mm for C shape and 163mm for U shape,
With feeding material guide, body frame made from 450# H type steel by welding,Side wall thcikness:Q235 t18mm
Rollers manufactured from tooling steel Cr12, precision machined, heat treatment HRC58-62
Shafts manufactured from 45# Steel,Diameter=φ80mm,precision machined
Motor Driving,Gear chain transmission,14 steps to form
Main Motor=18.5KW, Frequency speed control 380V/50Hz/3Ph or 220V/60Hz/3Ph
Forming speed approx.12m/min


 HOWICK Style Truss Roll Forming Machine


3.Hydraulic Post Cutting Device


Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:5.5KW ;Cutting pressure: 0-16Mpa;
Cutting tool material: Cr12Mov(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree


 HOWICK Style Truss Roll Forming Machine



4.PLC Control System


Combined with: PLC, Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±2 mm
Control Voltage 24V


 HOWICK Style Truss Roll Forming Machine




5.Exit Rack

Un-powered, One unit








After-sale Service
1. The warranty of HOWICK Style Truss Forming Machine is Two year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.


Packing Style

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation
