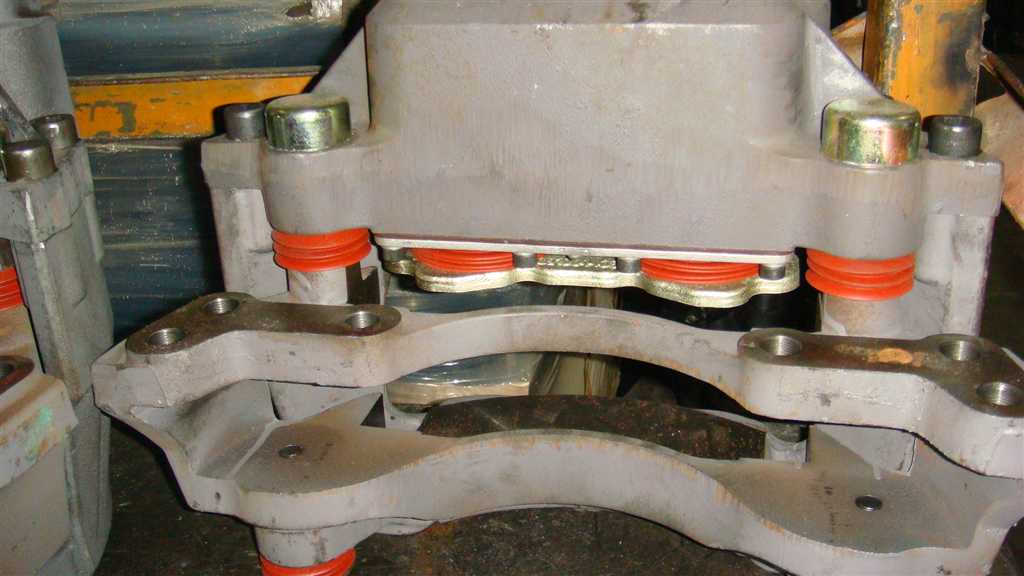

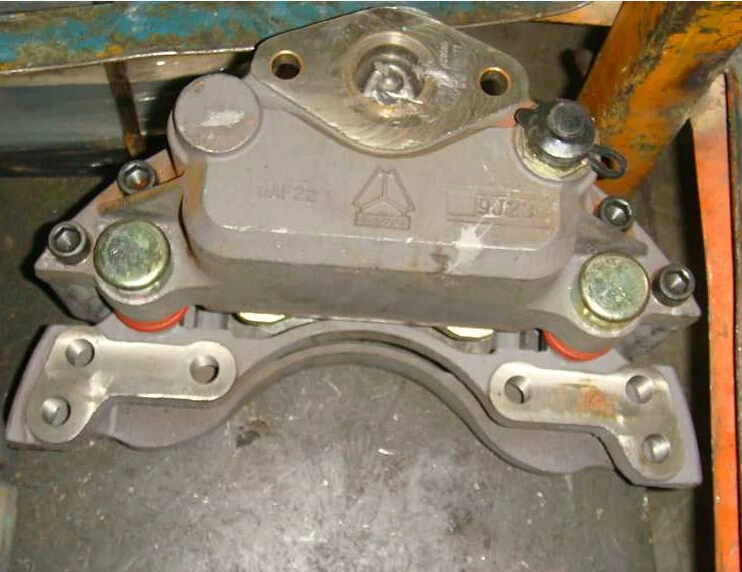

HOWO A7 applied air disc brake- second generation air disc brake AC71414400611 SINOTRUK® Genuine -

Part No.: AC71414400611



Quick Details:

SINOTRUK® Genuine - HOWO A7 applied second generation air disc brake AC71414400611



#

Part Number

Qty

Designation

0

AC71414400611

1

Second Generation Applied Air Disc Brake

1

WG9100360410

1

Front-left  Air Chamber 22 Inch

2

WG9100360420

1

Front-right  Air Chamber 22 Inch

3

WG9100443009

2

Manual Override Stem Cap

4

AZ9100443010

2

Manual Override Stem Retainer

5

WG9100443011

2

Manual Override Stem Seal

6

WG9100443008

2

Manual Override Stem Saddle

7

WG9100443041

2

Manual Override Stem Shaft

8

WG9100443043

2

Manual Override Stem Spring

9

WG9100443042

2

Manual Override Stem Gear

10

AZ9100443016

4

End Cap

11

Q218B1450TF2

2

Guide Sleeve Bolt

12

AZ9100443013

2

Guide Sleeve

13

Q218B1645TF2

8

Return Screw

14

WG9100443014

4

Housing Guide Sleeve Bush

15

AZ9100443301

1

Housing(left)

16

AZ9100443401

1

Housing(right )

17

WG9100443017

4

Housing Guide Sleeve Excluder

18

AZ9100443023

4

Half Bearing Saddle

19

WG9100443022

4

Half Bearing Assembly



WG9100443030



Operation Shaft Assembly

20

WG9100443031

2

Operation Shaft

21

WG9100443033

4

Bearing

22

WG9100443034

4

Rivet

23

AZ9100443021

4

Roller

24

WG9100443024

2

Gasket

25

WG9100443027

4

Piston Dust Excluder

26

Q218B0825TF2

16

Piston Housing Assembly Bolt

27

Q151B2070TF2

4

Brige Screw

28

Q151B2050TF2

8

Carrier Screw

29

WG9100443001

2

Disc

30

AZ9100443002

2

Carrier

31

AZ9100443004

2

Brige

32

WG9100443017

4

Brige Guide Sleeve Excluder

33

WG9100443019

4

Brige Guide Sleeve Bush

34

AZ9100443013

4

Bride Guide Sleeve

35

WG9100443017

4

Brige Guide Sleeve Excluder

36

Q218B1450TF2

4

Guide Sleeve Bolt

37

AZ9100443018

4

End Cap

38

Q150B1020TF2

2

Screw

39

AZ9100443006

2

Pad Retainer

40

WG9100443050

4

Pad Assembly

41

WG9100443032

2

Drive Pin



AZ9100443500

2

Piston Assembly

42

WG9100443532

4

Tappet

43

WG9100443511

2

Adjuster Shaft

44

WG9100443528

2

Adjuster Bush

45

WG9100443512

2

Adjuster Gear

46

WG9100443525

4

Tappet Distance Sleeve

47

AZ9100443518

2

Adjuster Plate

48

WG9100443524

2

Adjuster Distance Sleeve

49

WG9100443526

2

Unilateralism Clutch

50

WG9100443529

2

Clutch Shaft Bush

51

WG9100443519

2

Return Spring

52

WG9100443515

2

Overload Clutch Shaft

53

WG9100443513

2

Saddle

54

WG9100443520

2

Thrust Bearing

55

WG9100443530

4

Pistion Bush

56

WG9100443521

2

Bearing Backing Board

57

WG9100443517

6

Overload Clutch Innner Friction Piece

58

WG9100443514

2

Overload Clutch Shell

59

WG9100443536

2

F1008  Flanging Bearing

60

AZ9100443527

2

Pistion Bracket

61

WG9100443539

4

Seal

62

WG9100443531

4

Pistion

63

WG9100443534

4

Exluder Clamping Ring

64

AZ9100443533

2

Spreader Plate

65

Q43112

4

Circlip for Shaft

66

WG9100443516

6

Exterior Overload Clutch Friction Piece



Specification

1. Manufactured from sturdy materials;

2. All parts meet ISO/TS 16949, ISO 14000, and QS 9000 standards;

3. Identical to original equipment, for perfect fit and function;

4. All the parts we sold are same with the original truck parts which means the parts we sold is the best matching parts for trucks. The parts can restore the truck performance 100 percent. The copies can not restore this;

5. Network information platform is used during all the purchasing process. SINOTRUK shares the original parts resource with us which means the purchasing process efficient, exact and orderly.


Standard Accessories



Insurance for you, assurance from us.

Our company has perfect quality guarantee system and after-sale service system.
We will handle all manufacturer warranty claims on your behalf. Specific warranty information can be found in the "details" section of each product page. Pictures of the flaw or defect may be necessary to complete your claim.


Specific warranty information

Warranty period:

Three months

Warranty Conditions:

1.     To ensure that the engine is maintained in accordance with the requirements  during use.

2.     The vehicle is not overloaded.

3.     Other human causes.

The required documents:

Pictures of the flaw or defect

Warranty methods:

1.     To replace a new one;

2.     Provide complete engine repairing parts as compensation;

3.     You keep the product, we compensate in cash.

Packaging & Delivery

Packaging Details:

Outside package:

Wooden case

Inner package:

Carton packaging

Delivery Details:

Within 15 days after payments
