Hoymiles Home Use 300W Microinverter for On Grid Solar System


This system is composed of a group of microinverters that convert direct current (DC) into alternating
current (AC) and feed it into the public grid. The system is designed for the incorporation of one
microinverter per two PV modules. Each microinverter works independently and guarantees the
maximum power generation of each PV module. This setup enables the user to directly control the
production of a single PV module, consequently improving the flexibility and reliability of the system




  • CertificateTUV,UL,IEC,CE,SGS
  • Warranty10years/25years(optional)

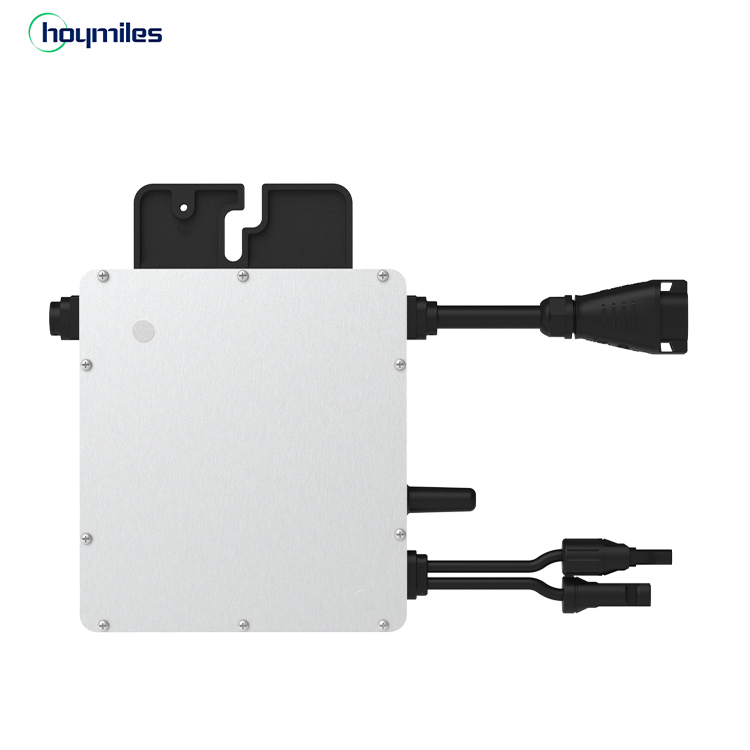

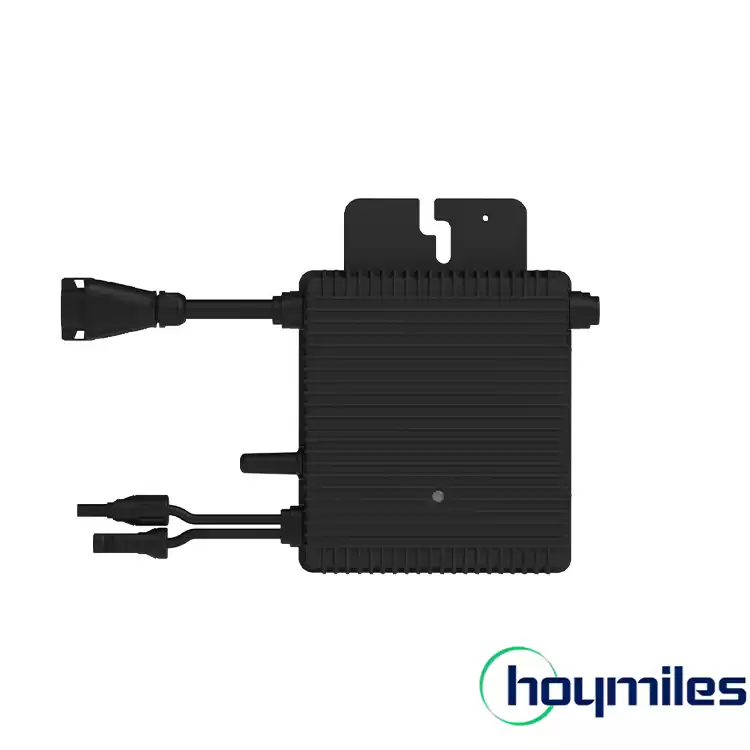

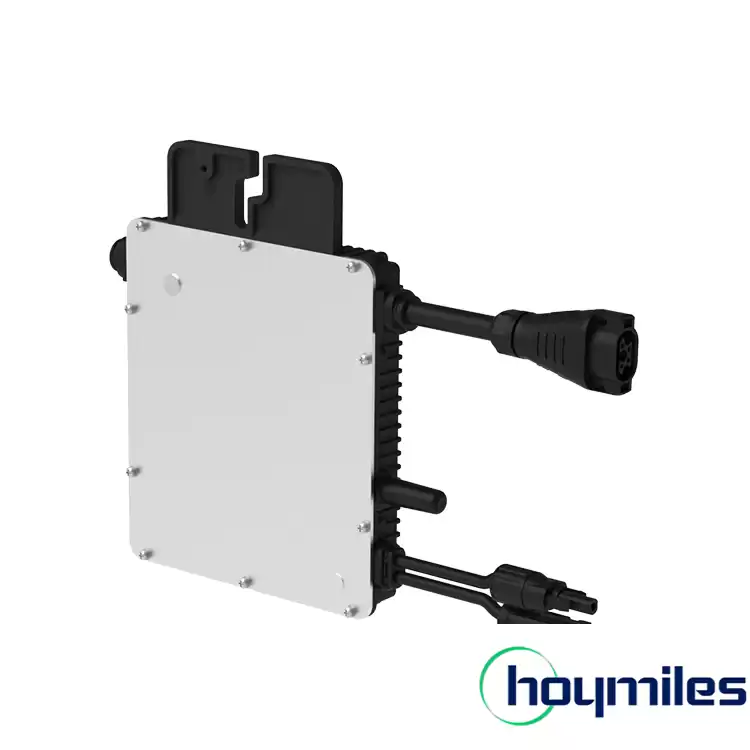

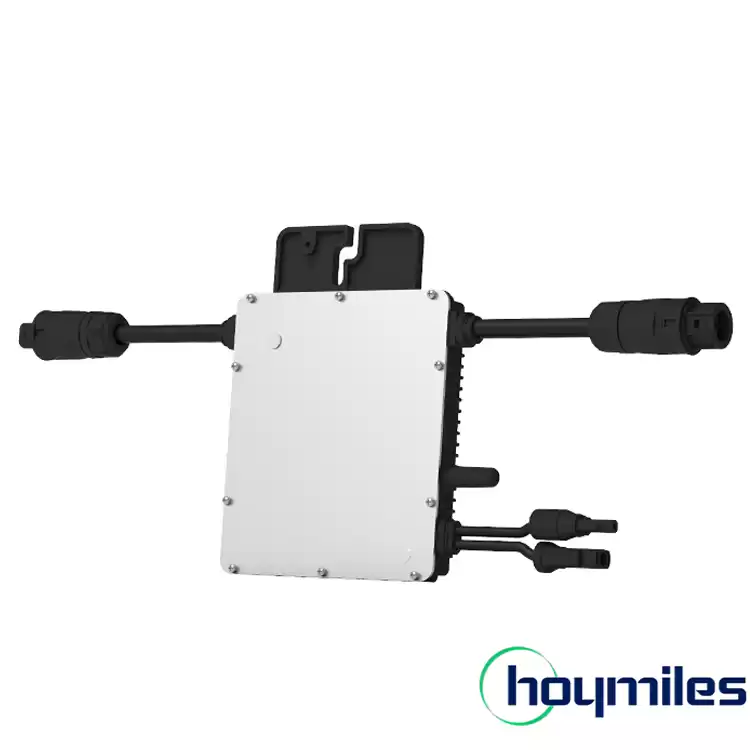

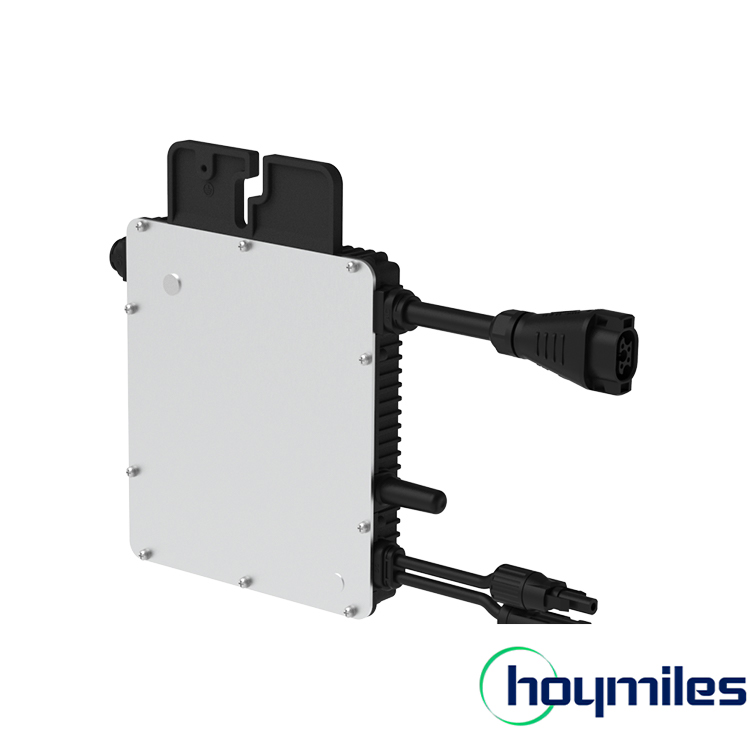

HM 300W micro inverter


Product Details


  • Low cost $watt micro inverter

  • Single microinverter connects one PV modules with individual MPPT

  • High continuos output power up to 300Wac, recommended for dua max 360W solar panel

  • Globaly certified for UL1741,SAA,TUV, VDE-AR-N 4105, VDE0126,G83/2,CEL 021,IEC61727,EN50438

  • Peak output power up to 300W; Adapted to 60 & 72 cells PV panels
  • Peak efficiency 96.70%; CEC weighted efficiency 95.50%
  • Static MPPT efficiency 99.80%; Dynamic MPPT efficiency 99.76% in overcast weather
  • High reliability; NEMA6 (IP67) enclosure; 6000V surge protection
  • Integrated monitoring and power line communicationwith RDG-256 gateway,built-in WiFi

  • Integrated grounding for easy installation

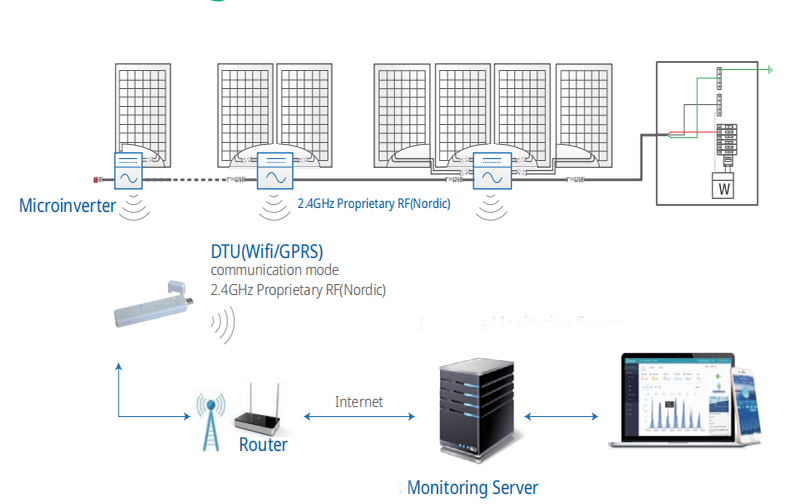

Solar System Wiring Diagram

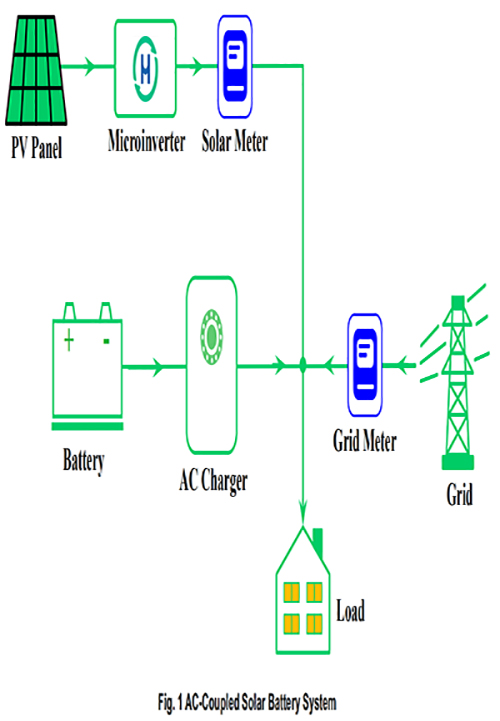

How to Apply Microinverter in an AC-Coupled Solar Battery System?


AC-coupled solar battery system as shown , is the connection of a battery energy storage system to a solar system via AC (alternating current) electricity.

② Energy from a solar system is generated in the form of DC (direct current) electricity which is then turned into AC by the solar microinverters.

A battery bi-directional / multimode inverter connected to the same electrical network via AC then converts any spare energy not used by the home back into DC so it can be stored in a battery.



The AC-coupled solar battery system is more complicated than the traditional grid-tied PV inverter system. But this kind of system can even work when grid outage or the system is the type of off grid.

For now, more and more manufacturers have launched AC-coupled solar battery system. Some of these solutions are integrated PV inverters, which others require the installers to select the grid-tied PV inverters to integrate with their battery system.


Technical Parameter



Model
HM-300

HM-350

HM-400
DC Input


Commonly used module power (W)
Up to 380
(single panel)

Up to 440
(single panel)

Up to 500
(single panel)

Peak power MPPT voltage range (V)

29–48

33–48
34–48
Start-up voltage (V)
22
Operating voltage range (V)
16-60
Maximum input voltage (V)
60
Maximum input current (A)
11.5 11.5 12.5
Maximum input short-circuit current (A)
15
Maximum backfeed current to array (A)
0
Number of MPPTs
1
Number of inputs per MPPT
1
AC Output

Rated output power (VA)
300 350 400
Rated output current (A)
1.36@220 V
1.30@230 V
1.25@240 V
1.59@220 V
1.52@230 V
1.46@240 V
1.82@220 V
1.74@230 V
1.67@240 V
Nominal output voltage/range (V)
220/180–275
230/180–275
240/180–275
Nominal frequency/range (Hz)
45–55 (under 50 Hz @ 220 V & 230 V)
55–65 (under 60 Hz @ 220 V & 230 V)
Power factor
> 0.99 default
0.8 leading…0.8 lagging
Output current harmonic distortion
< 3%
Maximum units per branch
16@220 V
16@230 V
16@240 V
14@220 V
14@230 V
14@240 V
12@220 V
12@230 V
12@240 V
Efficiency, Safety and Protection

Peak microinverter efficiency
96.70%
CEC weighted efficiency
96.50%
Nominal MPPT efficiency
99.80%
Night time power consumption (mW)
< 50
Mechanical Data

Ambient temperature range (°C)
-40 to +65
Storage temperature range (°C)
-40 to +85
Dimensions (W × H × D mm)
182 × 164 × 29.5
Weight (kg)
1.98
Enclosure rating
Outdoor NEMA 6 (IP67)
Cooling
Natural convection (no fans)
Pollution degree
PD3
Features

Topology
High-Frequency Transformers
Communication
2.4 GHz Proprietary RF (Nordic)
Monitoring
Hoymiles Monitoring System
(Hoymiles DTU is required)
Warranty
12 years standard, 25 years optional
Compliance
VDE-AR-N 4105:2018, EN 50549-1:2019, VFR2019,
AS 4777.2:2015, IEC/EN 62109-1/-2, IEC/EN 61000-3-2/-3, IEC/EN-61000-6-1/-2/-3/-4

Microinverter Advantages

1.Safer:The solar panels are connected in parallel, and the system has no DC high voltage.

2.No cask effect, more power generation:The solar panels are independent from each other, without cask effect,

and the actual system efficiency can be maximized.

3.Wide range of application:A good solution to the multi-orientation, shaded roof system; Surrounding environment dust, flying flocculant more complex scene.

4.Simple system:The combination of PV moduels and micro inverter is modular, which simplifies design and construction and reduces system cost.

5.Flexible system design:Allow the design and connection of solar panels which has different powers, brands and types in the same system.

6.Smart monitoring:PV module-level monitoring to reduce later operation、maintenance and repair costs.

7.Long service life:The service life of the micro-inverter is up to 25 years, and the comprehensive investment cost is lower than the traditional system, and the cost performance is higher.

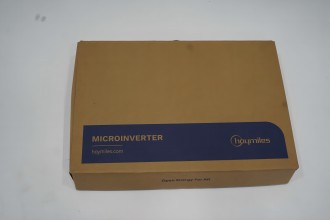

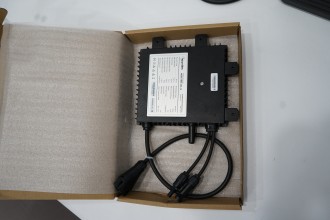

Package

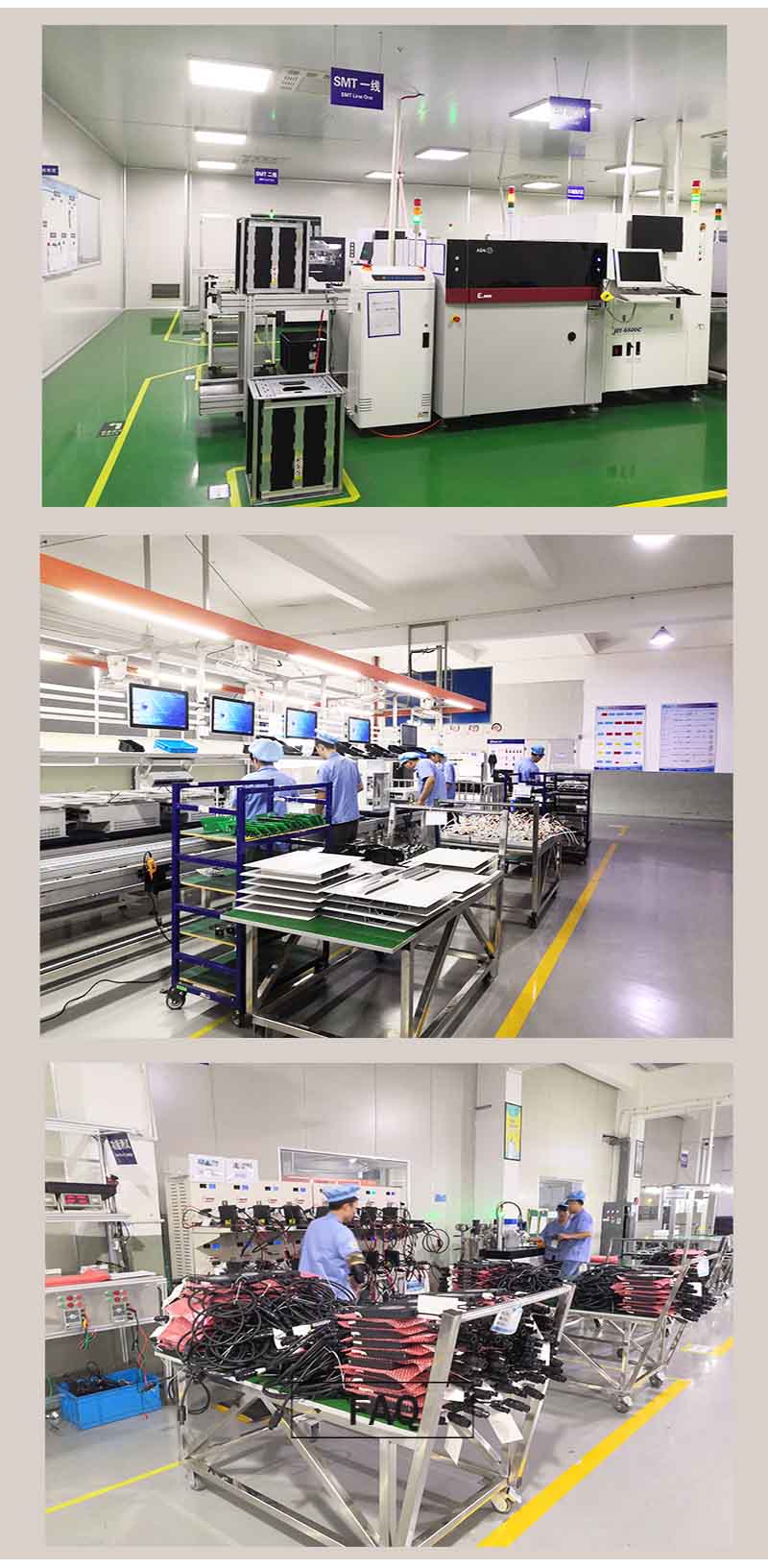

Factory

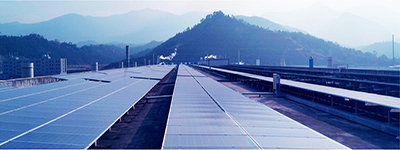

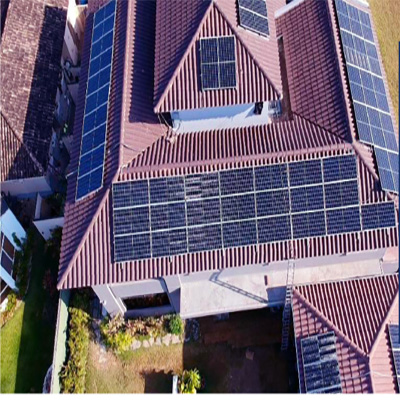

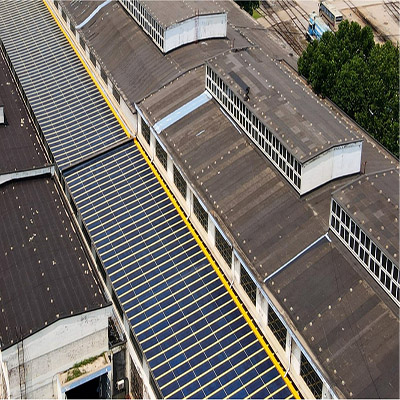

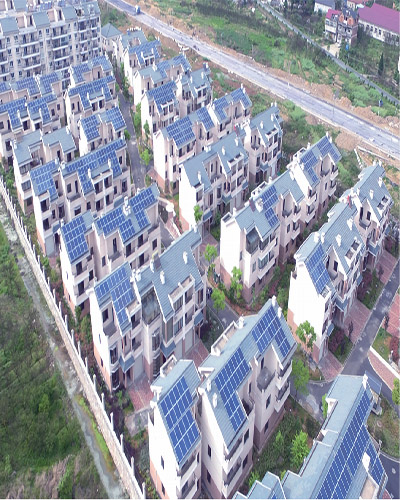

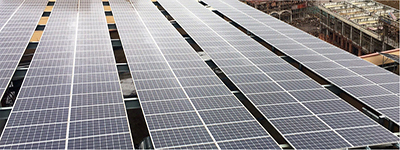

Projects
