HPDE ballast structure pour gravel bracket bucket
Emperysolar Integrates R&D, production, sales and service, and is equipped with a variety of related production equipment and experimental equipment, including a number of large blow molding machines, roll molding machines, and all kinds of related testing equipment.The company adheres to the industry's highest standards of strict implementation, determined to become the industry's most reputable enterprises.

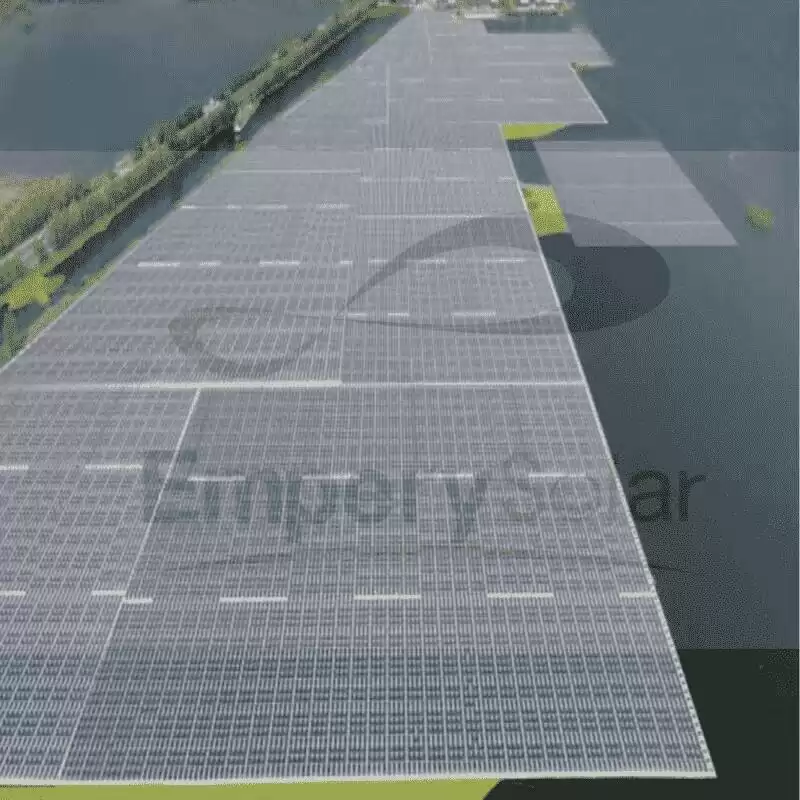

The company has passed ISO quality system certification, SGS system certification, products through TUV product certification, IEC and other relevant tests, and has a number of inventions and utility model patent technology.Through continuous independent innovation and efforts, based on the general trend of photovoltaic industry, to contribute to the global photovoltaic industry, in order to promote the popularization of photovoltaic floating power station environmental protection economy, energy recycling, to achieve global sustainable development as their own responsibility, leading the continuous change of photovoltaic floating system.

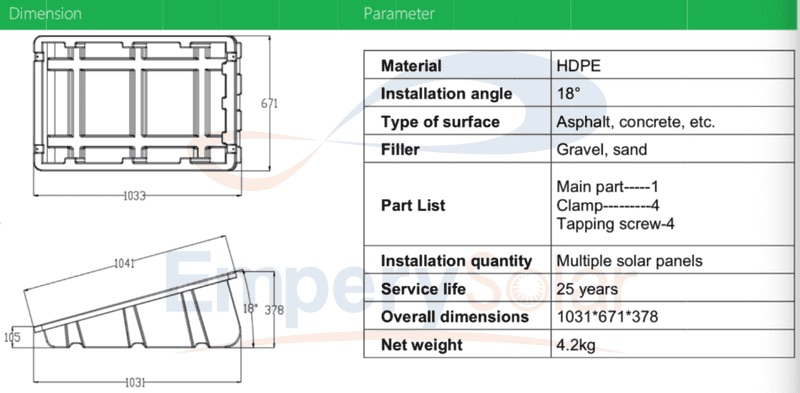

Technical Information
Place of Origin: Fujian, China
Brand Name: EmperySolar
Material: HDPE
Installation angle: 18°

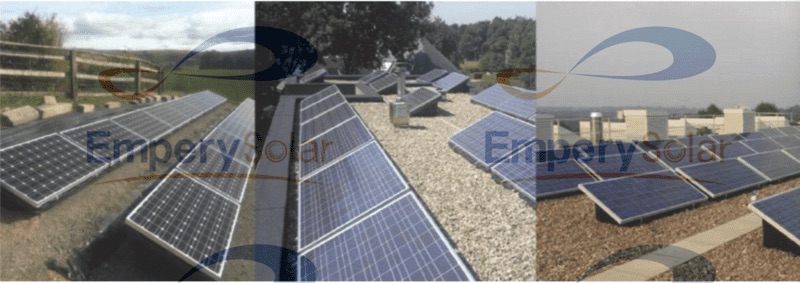

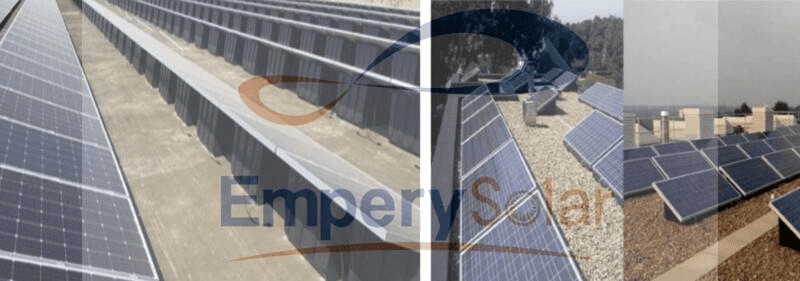

Type of surface: Asphalt, concrete, etc.
Filler: Filler Gravel, sand
Installation quantity: Multiple solar panels
Maximum lifespan: 25years
Overall dimensions: 1031*671*378
Net weight: 4.2kg
Installation procedure

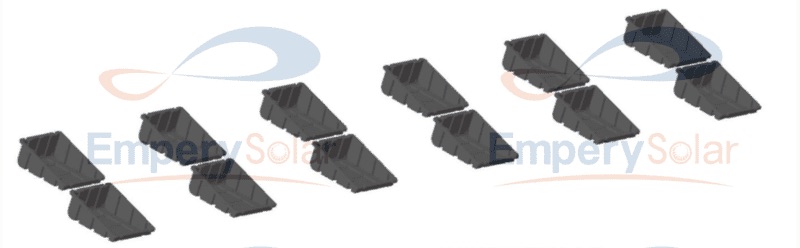

1) Positioning: positioning bracket is arranged according to the project arrangement
2) gravel: pour gravel into the bracket bucket. The weight of gravel depends on the local wind force

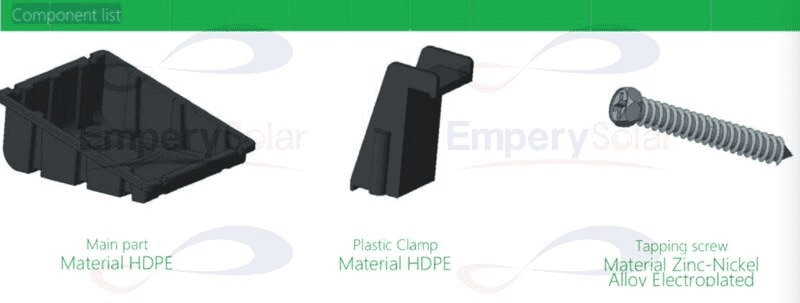

3) pre-lock fixing fixture: load the plastic fixture into the four card slots of the support, and use a wrench to tap the outer
hexagon screw.The wire is pre-locked on the bracket. Please reserve the installation space for the solar panel
according to the thickness of the solar panel
4) installation of solar panel: mount the solar panel from the side into the bracket according to the demand, and lock the
screws on the fixture
Benefits
● Easy Installation
Parts have been high pre-assembly on factory to save your installation time.
● Safety and Reliability
Check and test the structure strictly to against the extreme weather condition.
● Flexibility and Adjustable
Smart design reduce the difficulty of the installation on the most condition.
● 15-Year Warranty
Empery Solar provides a 15-years warranty for the material and structure.
Packing & Shipping
