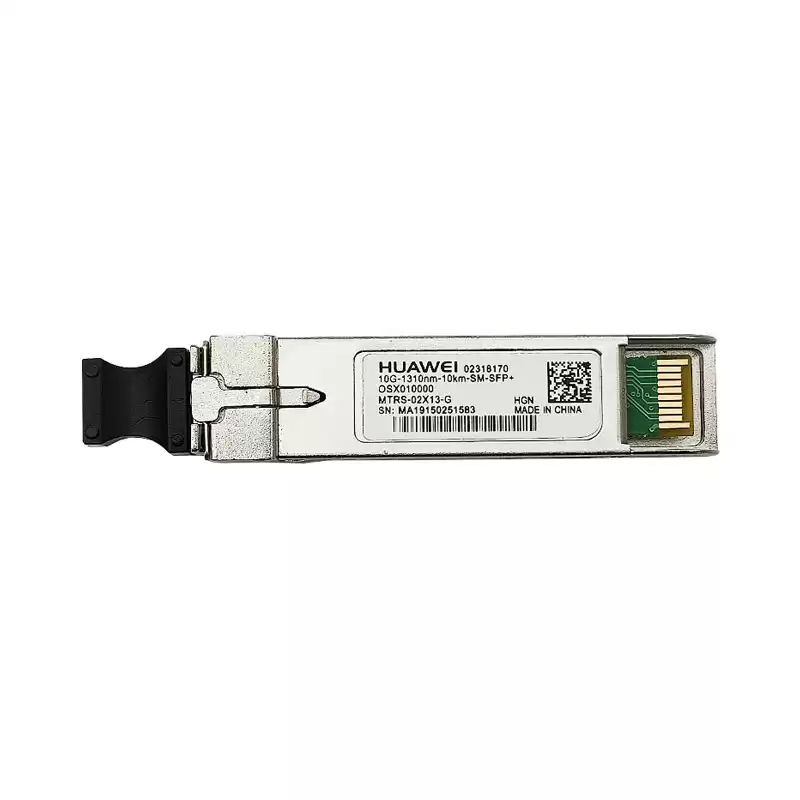

HUAWEI 02318170 OSX010000 Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)
Product Description
02318170 - Genuine Huawei OSX010000 Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)
Basic Information
Module name: OSX010000
Part Number: 02318170
Model: OSX010000
Form factor: SFP+
Application standard: 10GBASE-LR
Connector type: LC
Optical fiber type: SMF
Working case temperature [°C(°F)]: 0°C to 70°C (32°F to 158°F)
Transmission rate [bit/s]: 10 Gbit/s
Target transmission distance [km]: Single-mode fiber: 10 km
Transmitter Optical Characteristics
Center wavelength [nm]: 1310 nm
Maximum Tx optical power [dBm]: 0.5 dBm
Minimum Tx optical power [dBm]: -8.2 dBm
Minimum extinction ratio [dB]: 3.5 dB
Receiver Optical Characteristics
Rx sensitivity [dBm]: -12.6 dBm
Overload power [dBm]: 0.5 dBm
Product Details
Our Advantages
We have HUAWEI 02318170 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI 02318170, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI 02318170 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
