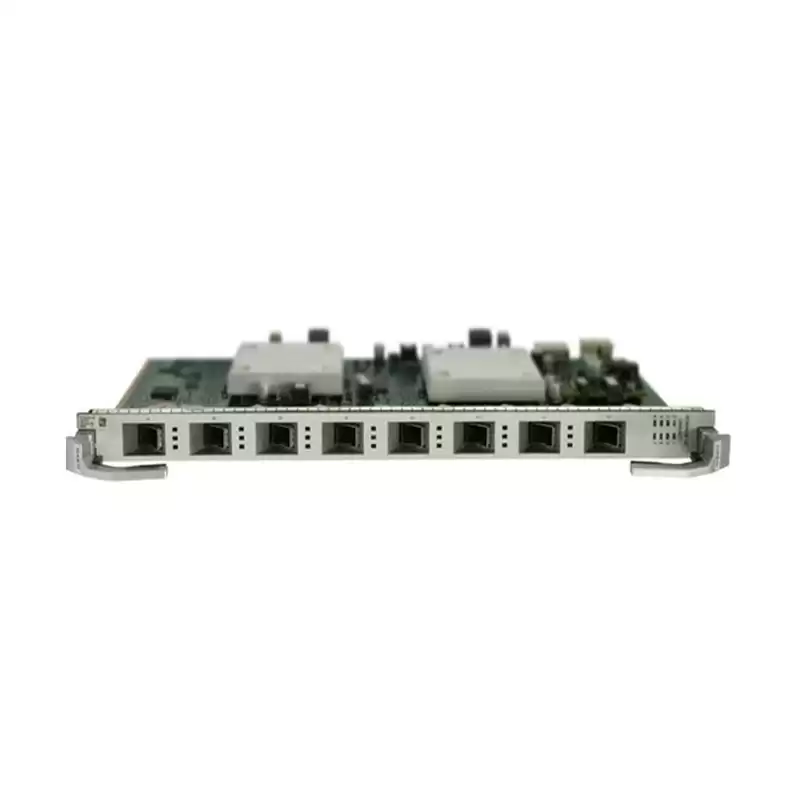

HUAWEI 03025KFB H902NXED 8-port Enhanced 10GE Uplink Interface Board
Product Description
Huawei NXED 10G Uplink Board Product Overview
Huawei NXED 10G Uplink Board is an 8-port upstream interface board for MA5800 X2, MA5800 X7, MA5800 X15, MA5800 X17 OLT Products. This board provides 10GE/GE optical ports without 10GE SFP+ module equipped as default,
Huawei MA5800 series OLT products include MA5800-X17, MA5800-X15, MA5800-X7, and MA5800-X2.
It supports GPON, XG-PON, XGS-PON, XG-PON&GPON combo, XGS-PON&GPON combo, Flex-PONGE, 10GE, and other interfaces.
Huawei NXED 10G Uplink Board Product Features
Huawei NXED 10G Uplink Board is an 8-port ETH optical interface upstream board that provides an uplink optical interface
Provide 8 SFP 10GE/GE external interfaces.
Support for selecting the line clock as the system clock. The entire board supports up to 80G bandwidth without convergence uplink.
Support for Ethernet clock synchronization.
Support high-temperature protection of boards.
Support single-board power shutdown.
Huawei NXED 10G Uplink Board and More service Card
|
H901MPLB
|
4 GE/10GE upstream transmission ports and supports load sharing. By default, MA5800 connects to upstream network through the
control board
|
|
H901MPLA
|
|
H901CKUA
|
stratum-3 clock functions by working with MPLB and MPLA
|
|
Uplink interface board
|
|
H901NXED
|
Enhanced 8-port 10GE upastream interface board, supporting 10GE/GE Ethernet upstream transmission. NXED is used when upstream
ports currently provided in MA5800 are not enough.
|
|
Universal interface board
|
|
H901CIUA
|
synchronous time/clock signal input&output interfaces, alarm parameter/Boolean value input&output interface. RS485 serial ports,
and provides transparent transmission Ethernet ports.
|
|
Service board
|
|
H901GPHF
|
16 GPON ports for access services
|
|
H901GPSF
|
16 GPON ports for home access services
|
|
H901XGHD
|
8 asymmetric 10G GPON ports for access services.
|
|
H901TWED
|
8 symmetric 10G GPON ports for access services.
|
|
H901EDSH
|
32-channel E1 upstream board, supporting native TDM mode.
|
|
H901OGHK
|
48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE
|
|
H901OXHD
|
8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation.
|
|
Powerboard
|
|
H901PILA
|
48V DC input
|
|
Fan Monitoring board
|
|
H901FMLA
|
Supplier power to fans; controls and monitors the fans
|
|
H901FMMA
|
Supplier power to fans; controls and monitors the fans
|
Product Details
Our Advantages
We have Huawei H902NXED for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei H902NXED, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei H902NXED represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
