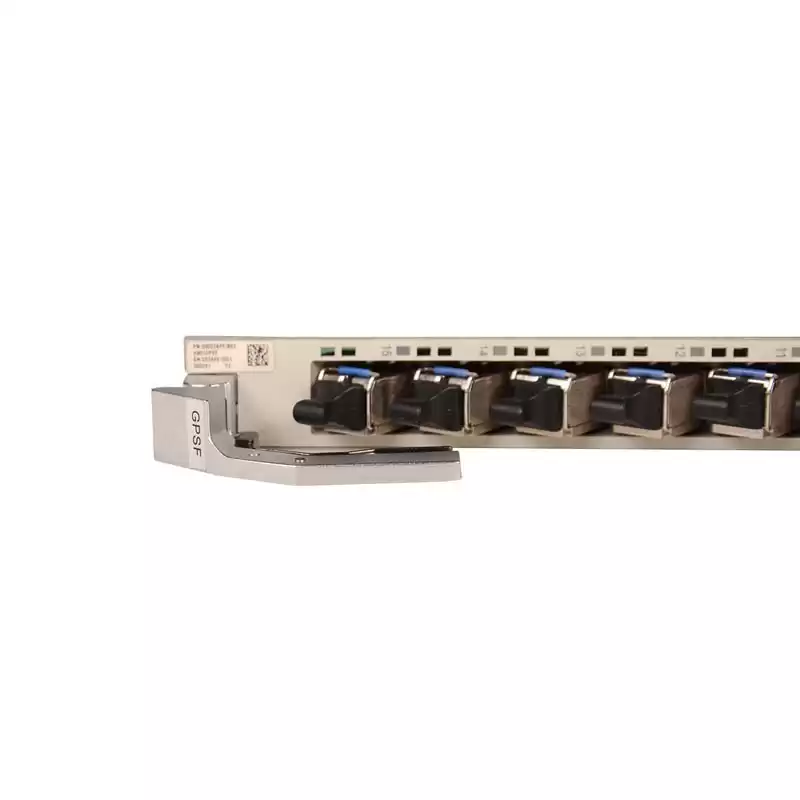

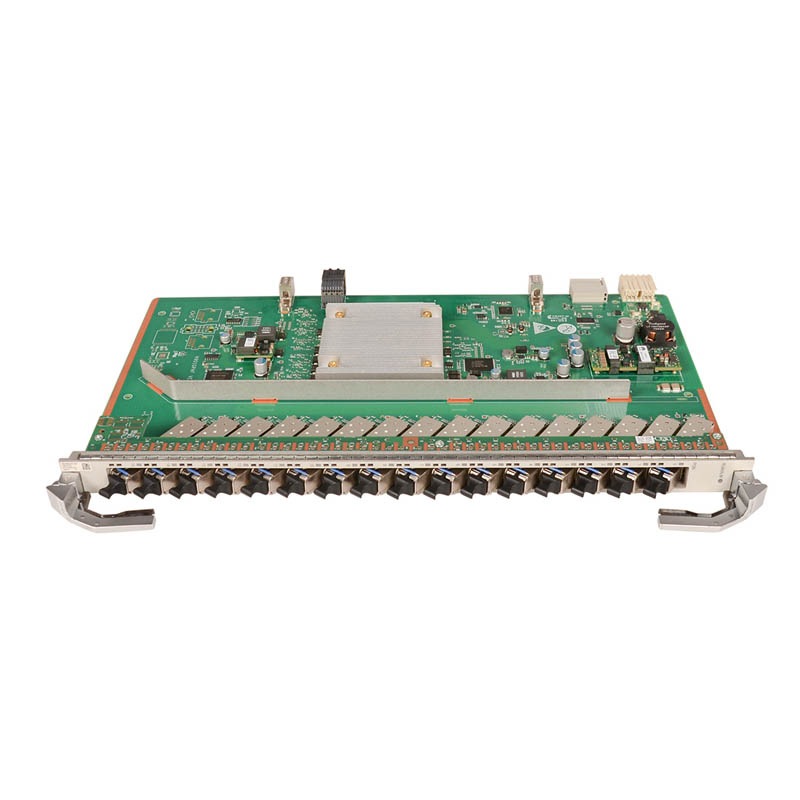

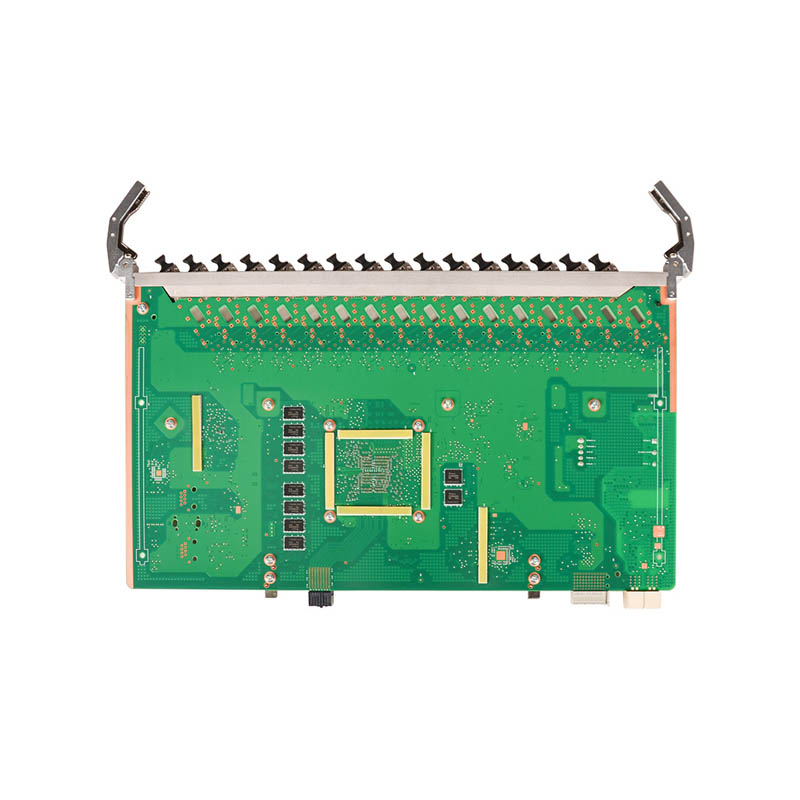

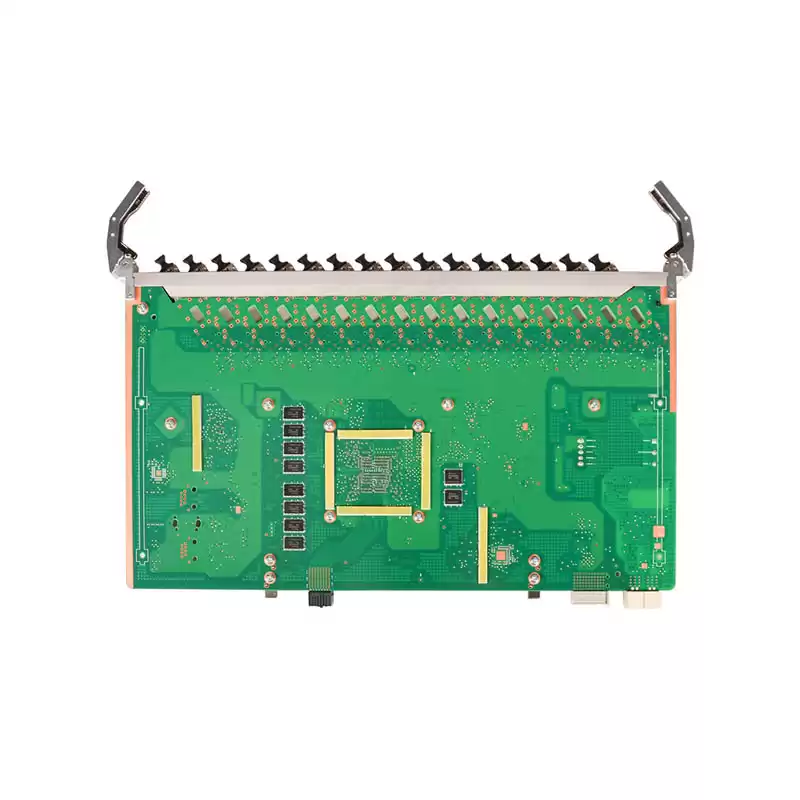

Huawei H901GPSF 02311EEH GPON Board OLT GPON GPHF/H901GPSF 16xGPON Card

Product Description

H901GPSF Overview

The H901GPSF board a 16-port GPON OLT interface board. lt works together with ONU to provide the GPON acess service. Apply to Huawei MA5800 series, MA5800-X2, X7, X15, X17

Forwarding Capability: 40Gbit/s

Max. split radio: Class B+: 1:64; Class C+/++: 1:128

B+ SFP Module Optical Power: 1.5 dBm~5 dBm, Receiver Sensitivity: -28 dBm

C+ SFP Module Optical Power: 3 dBm~7 dBm, Receiver Sensitivity: -32 dBm

C++ SFP Module Optical Power: 6 dBm~10dBm, Receiver sensitivity: -35 dBm

Class B+/C+: Tx:2.49Gbit/s Rx:1.24Gbit/s

Class C++: Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s

T-CONTs per PON port:1024

Maximum number of MAC addresses: 16384

Service flows per PON board: 16368

Operating Wavelength: Tx: 1490 nm, Rx: 1310 nm

Standards Compliance: ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3, ITU-T G.984.4

Product Details

Our Advantages

We have Huawei H901GPSF for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Huawei H901GPSF, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Huawei H901GPSF represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
