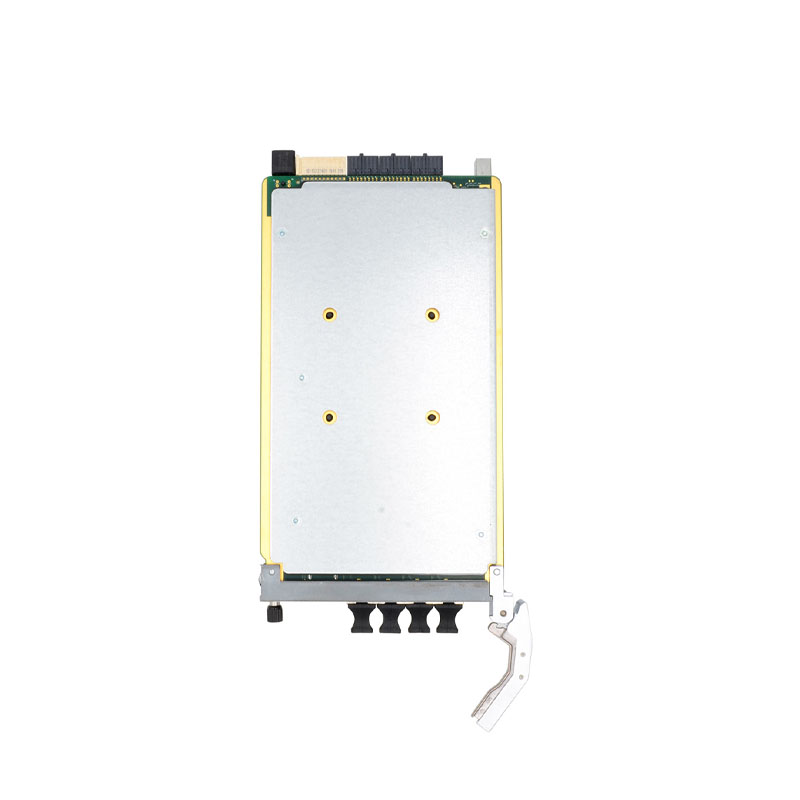

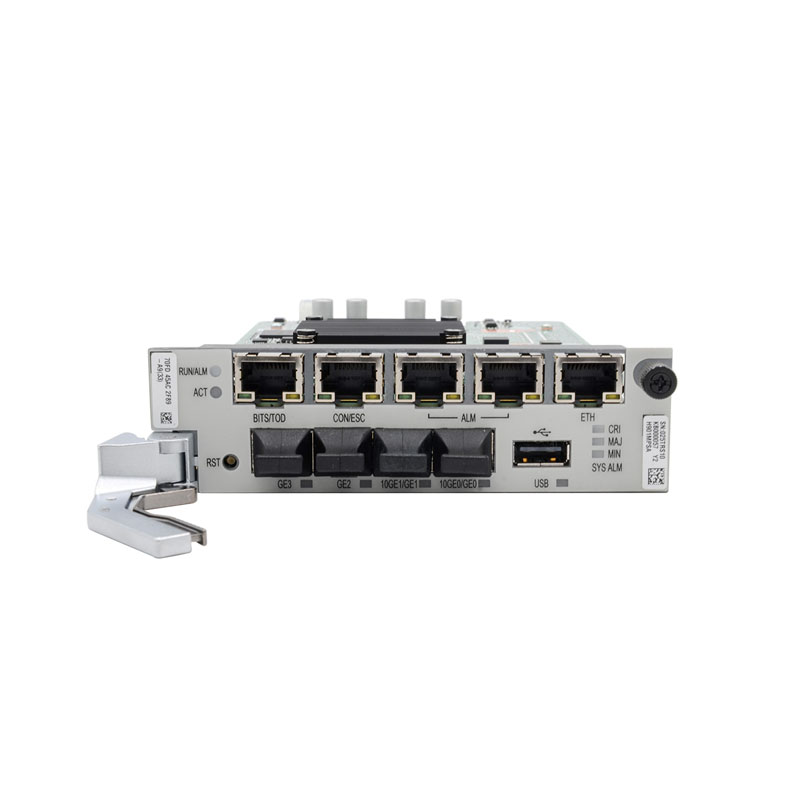

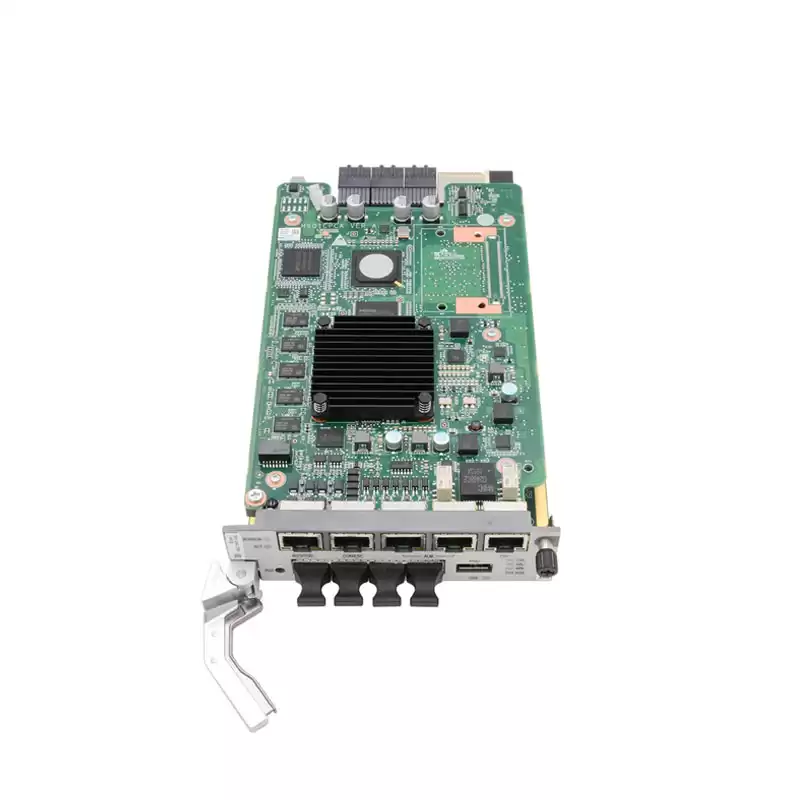

HUAWEI H901MPSA 03025TRS MA5800 X2 optical uplink port Main control board
Product Description
The H901MPSC board is a control board. It is the core of the system control and service switching and aggregation. The H901MPSC board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband channel. In this manner, the H901MPSC board configures, manages, and controls the device, and also implements the simple route protocol functions.
Feature and Specifications
Comparison Between Boards of the Same Type
This topic describes differences on functions and specifications between boards of the same type.
Control Boards Comparison
All control boards support the functions as below:
Active/standby switchover at the control panel
Load sharing at the forwarding panel
Local and remote maintenance through maintenance serial port CON or maintenance Ethernet port ETH
Environmental monitoring through environment monitoring serial port ESC
NOTE:
For H901MPSC board, the maintenance serial port (CON) and environment monitoring serial port (ESC) sharing the same port.
In the table, "Yes" indicates "supported" and "No" indicates "not supported".
Table 1 Differences between control boards
|
Board
|
H901MPLB
|
H901MPSC
|
|
Maximum Bandwidth per Slot(load sharing mode)
|
200 Gbit/s
|
80 Gbit/s
|
|
Upstream transmission or cascading port
|
4 x 10GE/GE ports
|
4 x 10GE/GE ports
|
|
ALM port
|
No
|
Yes (7 Boolean value inputs and 1 Boolean value output)
|
|
BITS/TOD port
|
No
|
Yes (1 external clock/time input and output)
|
|
MAC address table
|
262143
|
262143
|
|
Access ONT
|
17408
|
4096
|
|
Multicast user
|
17408
|
4000
|
|
Number of static programs configurable
|
4096 (Before the V100R017C00 version)
|
8192 (V100R017C10 and later versions)
|
|
8192 (V100R017C00 and later versions)
|
|
Maximum number of online programs supported
|
V100R016C00 version: 4000
|
V100R017C10 and later versions:
|
|
V100R016C10 version:
|
IPv4: 8000
|
|
IPv4: 4000
|
IPv6: 2000
|
|
IPv6: 2000
|
|
|
V100R017C10 and later versions:
|
|
|
IPv4: 8000
|
|
|
IPv6: 2000
|
|
|
IPv4 routing table
|
65536
|
65536
|
|
IPv6 routing table
|
16384
|
16384
|
|
Service port
|
139264
|
32768
|
|
ARP table
|
65536
|
65536
|
|
Ethernet synchronization
|
Yes
|
Yes
|
|
1588v2
|
Yes
|
Yes
|
|
1588ACR
|
Yes
|
No
|
|
VAN
|
Yes (requires license loaded by U2000)
|
No
|
|
D-CCAP
|
Yes
|
Yes
|
Product Details
Our Advantages
We have HUAWEI H901MPSA for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI H901MPSA, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI H901MPSA represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
