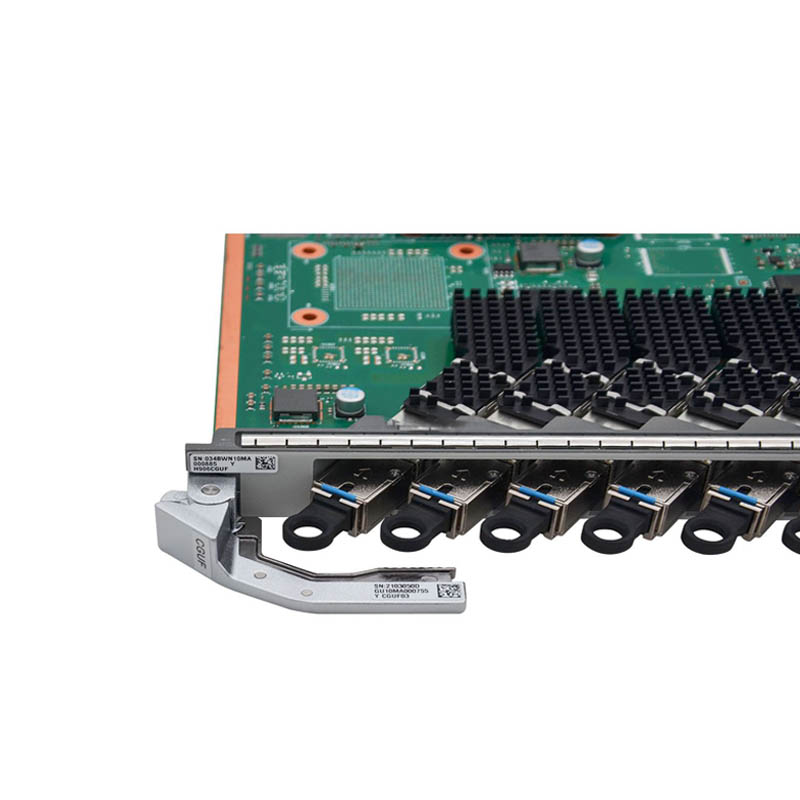

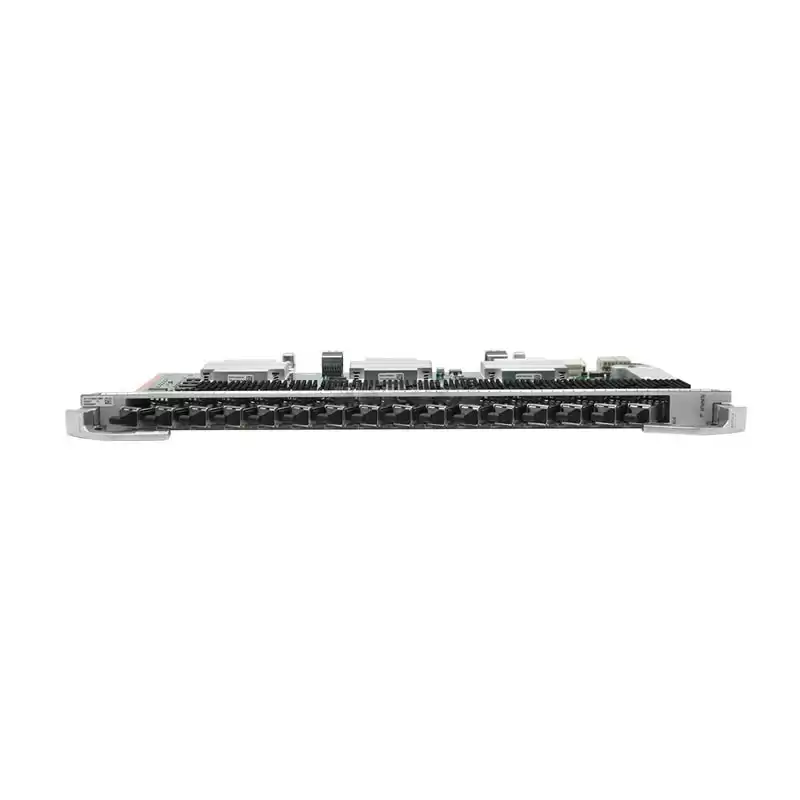

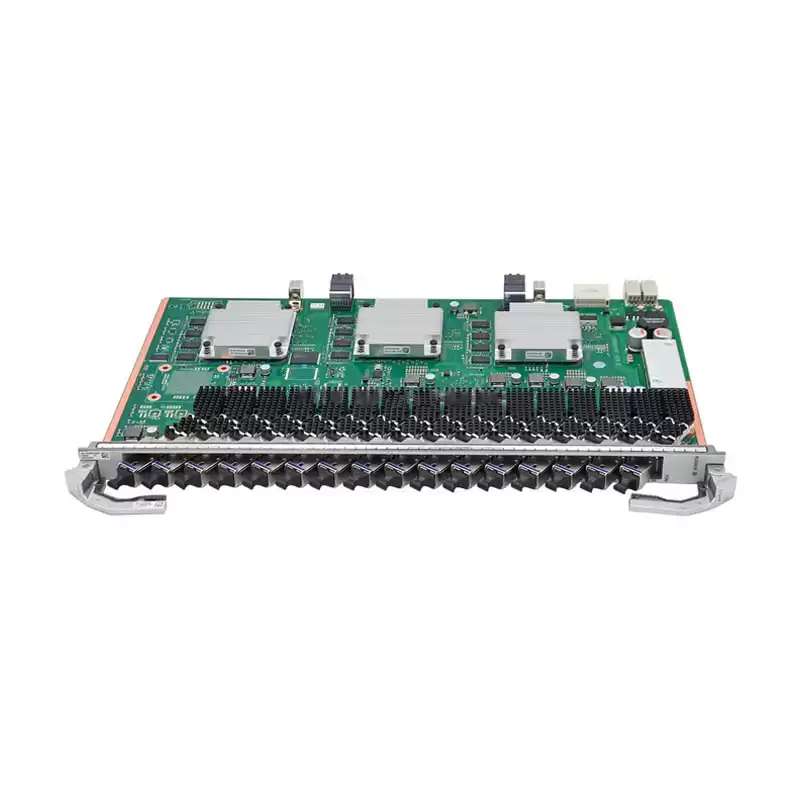

Huawei H906CGUF 16-port XG-PON and GPON combo Board for MA5800 series OLT
Product Description
|
Specification
|
|
Service ports
|
|
GPON Port
|
16 XG-PON & GPON ports
|
|
GPON SFP+ Module Specification
|
|
Type
|
One-fiber bi-directional optical module, C+
|
|
Operating Wavelength
|
GPON channel:
Tx: 1490 nm
Rx: 1310 nm
XG-PON channel:
Tx: 1577 nm
Rx: 1270 nm
|
|
Encapsulation Type
|
SFP+
|
|
Port Rate
|
GPON channel:
Tx: 2.488 Gbit/s
Rx: 1.244 Gbit/s
XG-PON channel:
Tx: 9.953 Gbit/s
Rx: 2.488 Gbit/s
|
|
Minimum Output Optical Power
|
GPON channel: 3 dBm
XG-PON channel: 4 dBm
|
|
Maximum Output Optical Power
|
GPON channel: 7 dBm
XG-PON channel: 8 dBm
|
|
Maximum Receiver Sensitivity
|
GPON channel: -32 dBm
XG-PON channel: -29.5 dBm
|
|
Optical Connector Type
|
SC
|
|
Optical Fiber Type
|
Single-mode
|
|
Overload Optical Power
|
GPON channel: -12 dBm
XG-PON channel: -9 dBm
|
|
Extinction Ratio
|
8.2 dB
|
|
Function
|
|
Forwarding capability
|
200 Gbit/s
|
|
Rate mode
|
Asymmetric rate
|
|
T-CONTs per PON port
|
GPON: 1024
XG-PON: 2048
|
|
Service flows per PON board
|
16352
|
|
Maximum frame size
|
2052 bytes
|
|
Maximum number of MAC addresses
|
131072
|
|
Maximum distance difference between
two ONUs under the same PON port
|
40 km
|
|
Device Specifications
|
|
Dimensions (W x D x H)
|
23.30 mm * 257.90 mm * 399.20 mm
|
|
Power Consumption and Maximum Frame Size
|
|
Power Consumption
|
Static: 48 W
Maximum: 106 W
|
|
Operating temperature
|
-40°C to +65°C
|
The H906CGUF board is an 16-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services
16 XG-PON&GPON ports (SFP+)
Maximum split ratio 1: 256
Port rate:
GPON upstream: 1.244 Gbit/s
GPON downstream: 2.488 Gbit/s
XG-PON upstream: 2.488 Gbit/s
XG-PON downstream: 9.953 Gbit/s
Rate mode: Asymmetric rate
Maximum Receiver Sensitivity:
Class B+
GPON channel: -28 dBm
XG-PON channel: -26.5 dBm
N2a
GPON channel: -32 dBm
XG-PON channel: -29.5 dBm
Class C+
GPON channel: -32 dBm
XG-PON channel: -30.5 dBm
Class D
GPON channel: -35 dBm
XG-PON channel: -33.5 dBm
MAC address table size: 131072
Forwarding capability: 200 Gbit/s
Product Details
Our Advantages
We have Huawei H906CGUF for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei H906CGUF, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei H906CGUF represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
