Huawei OSN 2500 Optical Transmission Fiber Transceiver SDH PDH
Product Description
|
Specifications
|
OSN 2500
|
|
Dimensions
|
472 mm (H) x 447 mm (W) x 295 mm (D)
|
|
Switch Capacity
|
TDM: 60 Gbit/s (higher order), 20 Gbit/s (lower order)
|
|
Service Slots
|
12 slots for processing boards and 8 slots for interface boards
|
|
Supported Interfaces
|
MSTP interfaces
|
STM-16/4/1, E1/E3/E4/T1/T3, FE/GE, DDN, IMA/ATM, FEC/EFEC,SAN, Video
|
|
WDM interfaces
|
40-channel DWDM interfaces, compliant with ITU-T G.694.1
8-channel CWDM interfaces, compliant with ITU-T G.694.2
|
|
Power Supply
|
DC: -48V DC or -60V DC
AC: 220V/110V AC
|
|
Clock Synchronization
|
Line clock source
Tributary clock source
Two external clock inputs/outputs (2 MHz or 2 Mbit/s)
|
|
Auxiliary Interface
|
Orderwire interface, NNI connection interfaces
management serial interface, serial interfaces, 64 kbit/s codirectional data channel, 10M/100M NM interface, commissioning interface
Alarm interface, Cabinet alarm indicator interface
|

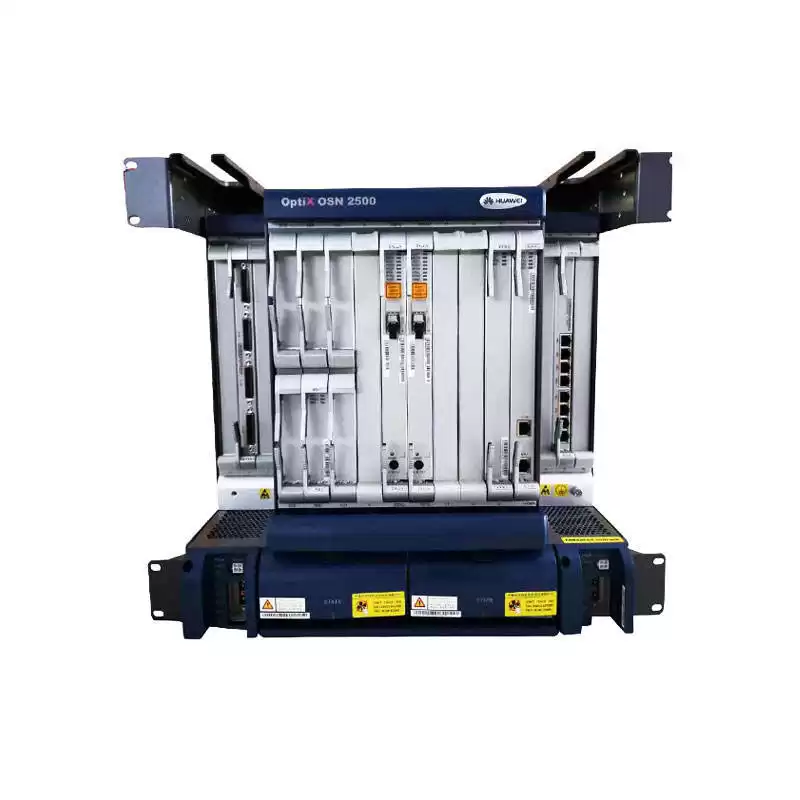

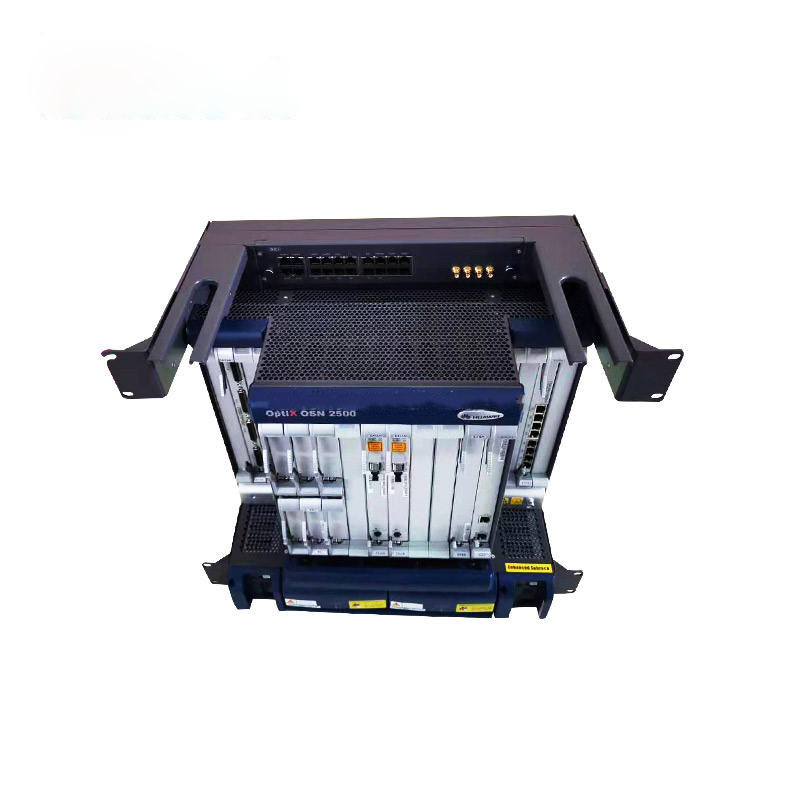

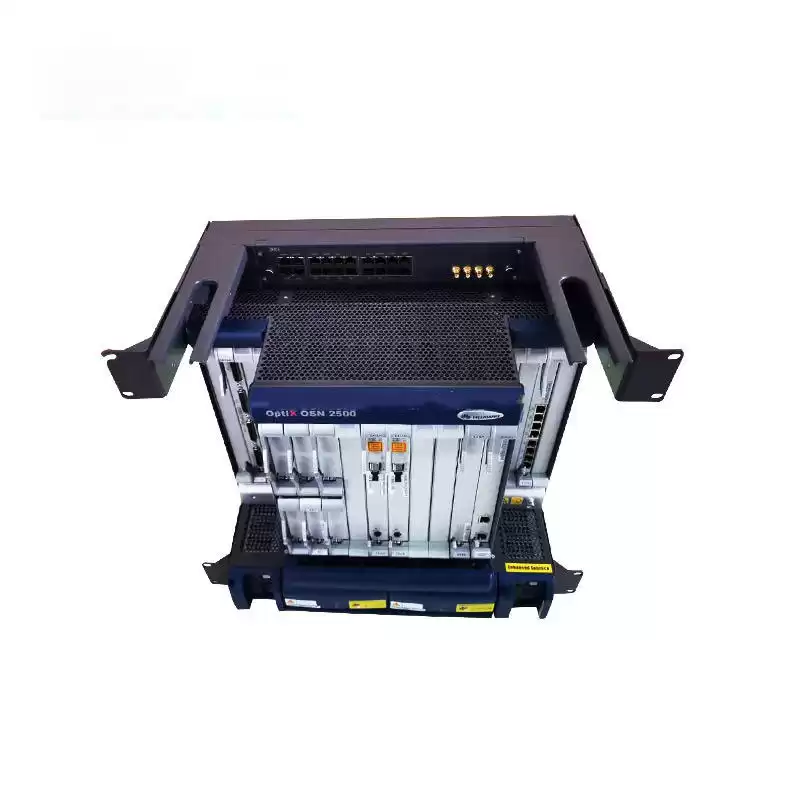

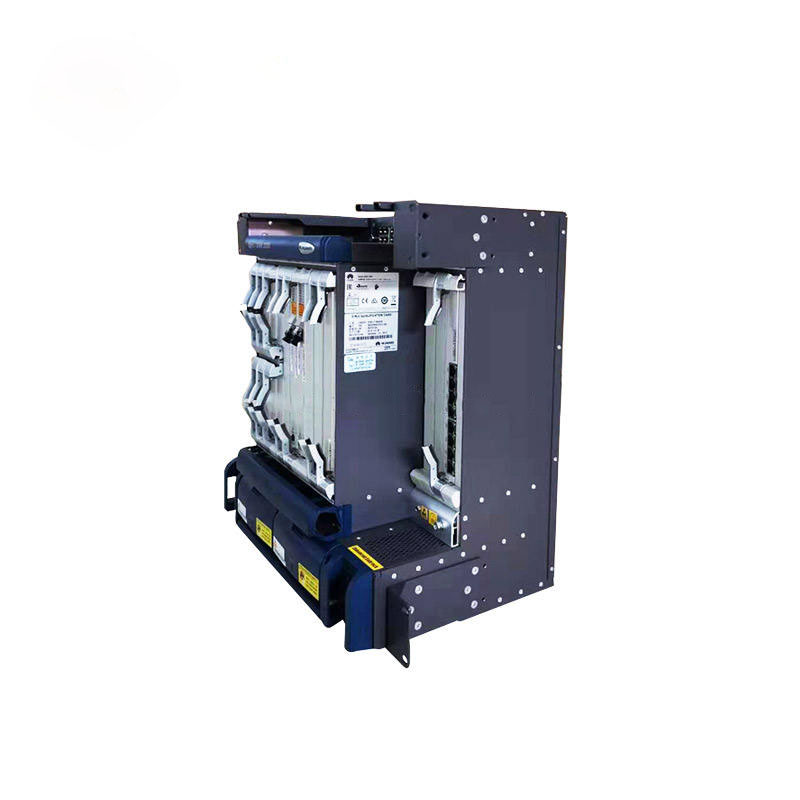

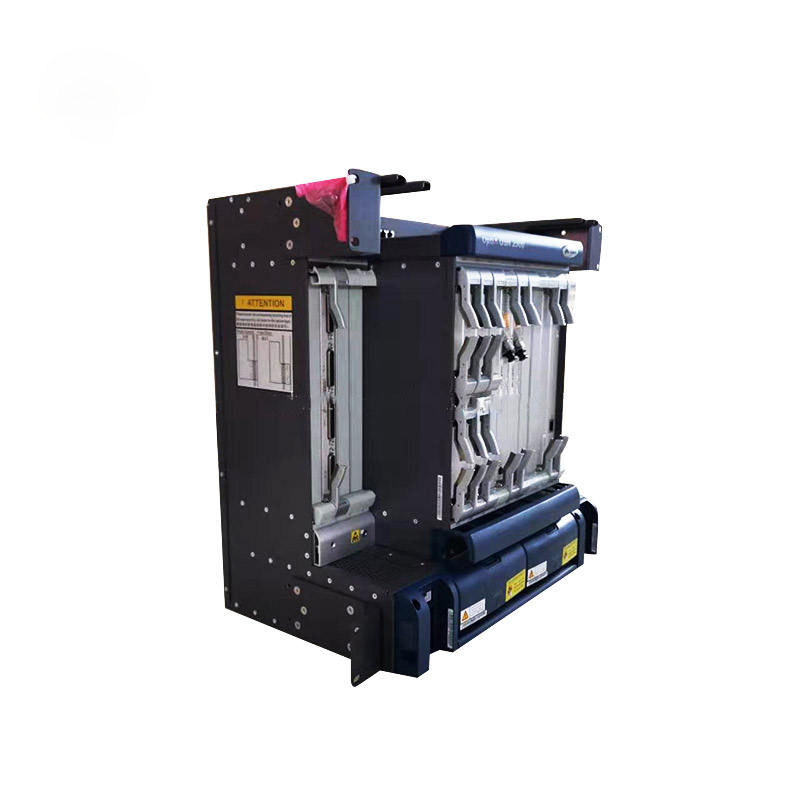

HUAWEI OSN 2500 OSN2500 02300619 SSQESUBRACK Enhanced Subrack
Developed by Huawei for highly efficient voice and data services transmission on a single platform, the OptiX OSN 2500 offers an intelligent, next-generation optical transmission solution. Used at the access and convergence layers of the Metropolitan Area Network (MAN), the OptiX OSN 2500 can also be networked with the other Huawei equipment to optimize customer investment.
The OptiX OSN 2500 subrack has a one-layer structure. The subrack consists of the slot area for processing boards, slot area for interface boards, slot area for the auxiliary interface board, power supply area and fan area.
The OptiX OSN 2500 subrack has only one layer. The left portion and right portion of the subrack, where eight slots are present, are slot areas for interface boards. The middle portion of the subrack, where ten slots are present, is the slot area for processing boards.
Product Details
Our Advantages
We have Huawei OSN2500 for
sale, including refurbished and new ones, and the price is usually 90% lower
than the original supplier's price. Our super fast turnaround time and
high-quality inventory all over the world mean that we can accurately deliver
the products replaced on the same day to the place where they are needed, and
minimize network downtime.
Huawei OSN2500, like all our hardware,
takes comprehensive warranty as the standard. Whether you need new products or
renovated products, we only purchase green market equipment of the highest
quality and environmental protection. All these are provided at the best
possible price, and a large amount of cost-effectiveness will be directly
passed on to you.
Huawei OSN2500 represents only one product
in our world-class hardware portfolio. The portfolio includes very well-known
industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel,
Lucent, etc. We have a lot of inventory, thank you very much for sharing with
customers.
