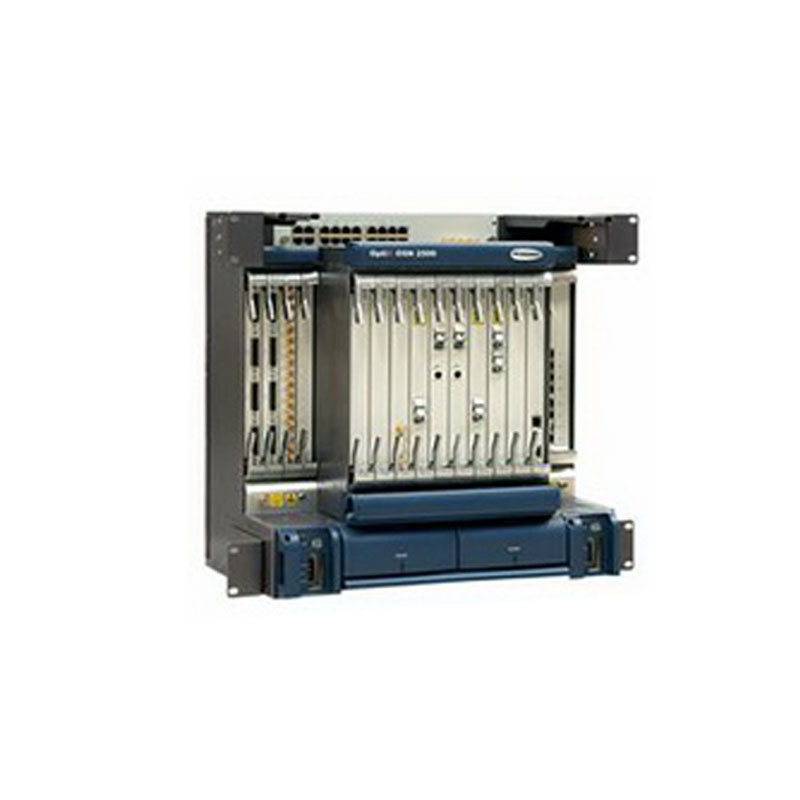

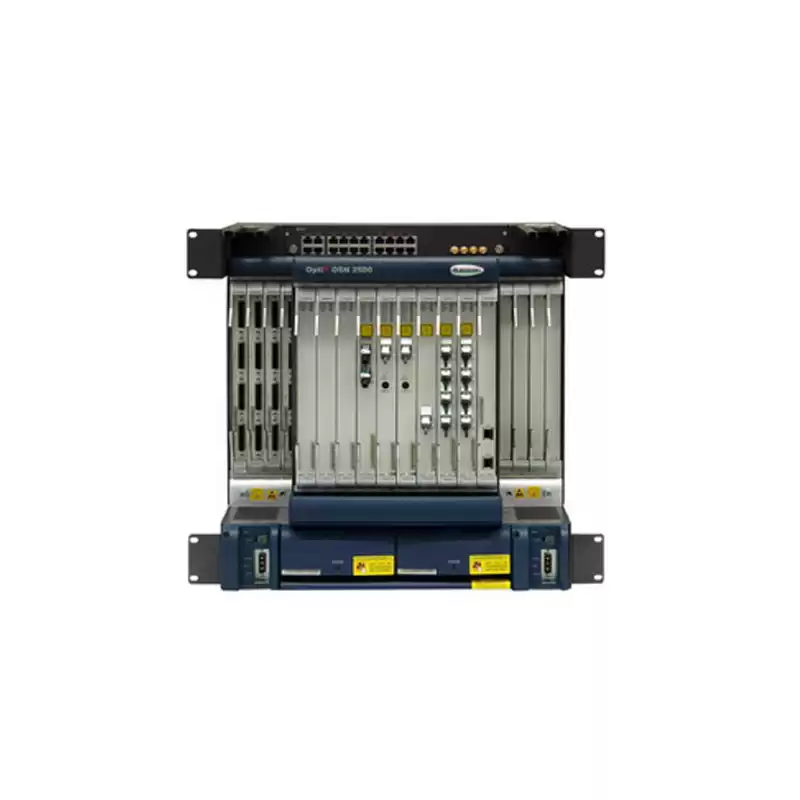

Huawei OSN2500 SDH

Product Description

Huawei OSN2500 Product Overview

Huawei OSN2500 SDH intelligent optical transmission system inherits all the characteristics of MSTP technology, and is compatible with traditional SDH and MSTP networks. It integrates SDH, PDH, Ethernet, WDM, ATM, ESCON, FC/FICON, DVB-ASI (Digital Video Broadcast- Asynchronous Serial Interface), RPR and other technologies as a new generation of 2.5G/622M multi-service optical transmission platform (MSTP), mainly used in the convergence and access layer of the metropolitan area network, for the existing SDH equipment to intelligent optical network equipment The transition provides a complete solution.

Huawei OSN2500 SDH is applied to the access layer and aggregation layer in the metropolitan area transmission network, and can be used with OptiX OSN9500, OptiX OSN7500, OptiX OSN3500, OptiX OSN35001I, OptiX OSN2500 REG, OptiX OSN1500, OptiX 2500+ (Metro3000), OptiX 155/622H (Metro1000) hybrid networking, to achieve access to services of different capacities. OSN2500 supports network topologies such as STM-1/STM-4/STM-16/level chain, ring, ring tangent, ring intersection, ring belt chain, double ring interworking, hub and mesh networks. It can also be connected with Huawei OSN series equipment, DWDM series equipment and Metro series equipment to build a complete transmission network solution.

Huawei OSN2500 SDH Product Feature

Cost-effective platformization

OptiX OSN 7500/3500/2500/1500 boards and software are fully compatible and constitute a unified platform. This can greatly reduce maintenance costs and the cost of spare parts. The OSN intelligent platform is efficiently combined in terms of service capabilities, giving operators the most cost-effective solution; at the same time, it can be mixed with Huawei’s existing equipment and can be included in Huawei’s optical network management solution for unified management

Large capacity scheduling

Support 20G high and low order full crossover: high order 128×128 VC-4, low order 8064×8064 VC-12 or equivalent VC-3 crossover capability.

Multi-service provision

Service interface

Support STM-1(O/E);

Support STM-4/16 standard or cascade service;

Support E1/T1/E3/T3/E4;

Support transparent transmission and exchange of FE and GE services;

Support ATM service;

Support IMA service;

Support SAN service and video service.

Provide fast end-to-end services based on GMPLS.

Strong networking capability

Support Mesh network node plug and play

Support Mesh network online upgrade and expansion at any rate;

Support up to 40 optical directions in Mesh network;

Support a variety of SDH network topologies such as chain, ring, intersecting ring, and tangent ring;

Support RPR, VP-RING ring network;

The single subrack can realize 1×STM-64 four-fiber ring or 2×STM-16 four-fiber ring or 4×STM-16 two-fiber ring.

Built-in WDM technology

Provide dual-channel optical bifurcation multiplex boards;

Provide any rate optical wavelength conversion board.

Mesh recovery

Support distributed recoverable rerouting protection;

Provide 5 more detailed serviceprotection solutions, according to different SLA: Diamond, Gold, Silver, Bronze and Iron services.

Product Details

Our Advantages

We have HUAWEI OSN2500 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

HUAWEI OSN2500, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

HUAWEI OSN2500 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
