Huawei SSN1BA2 Board

Product Description

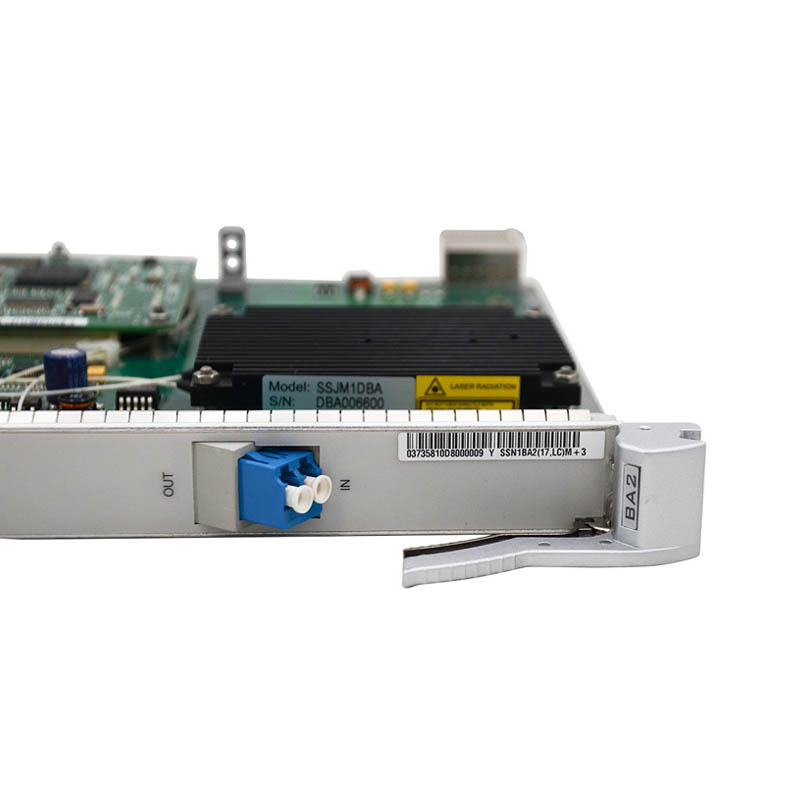

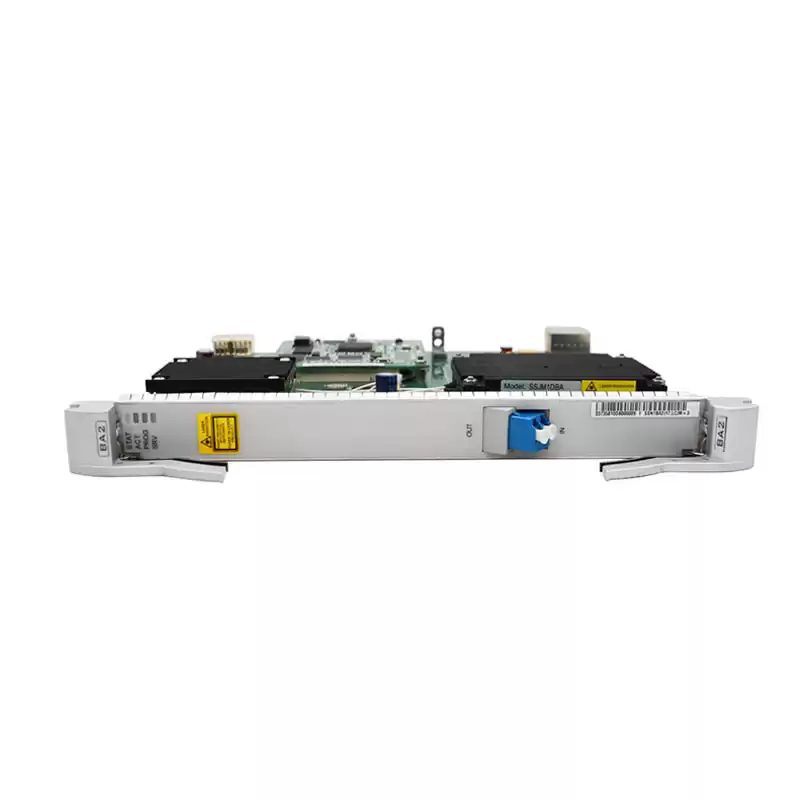

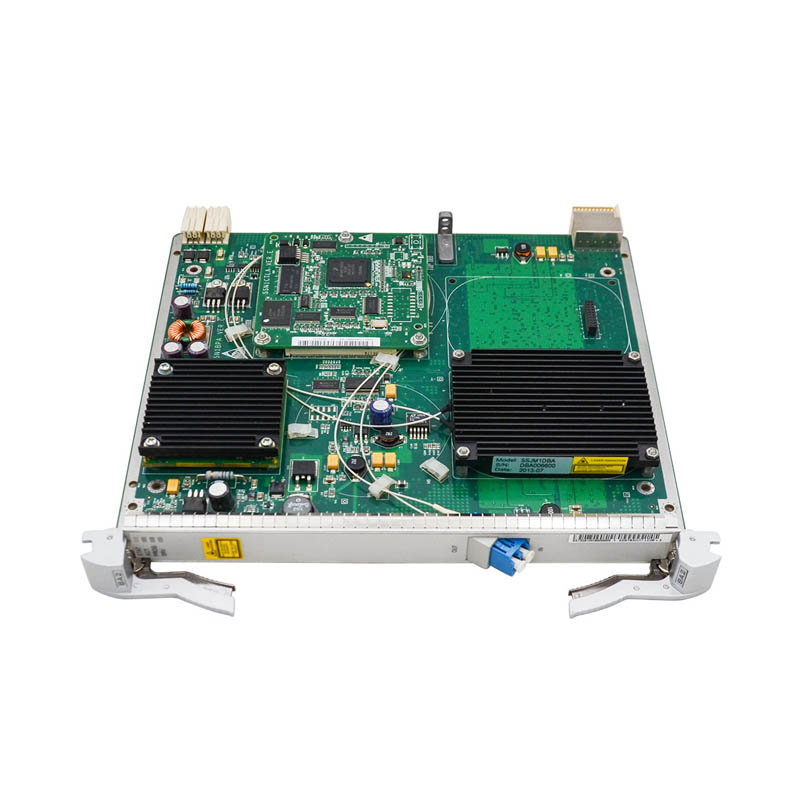

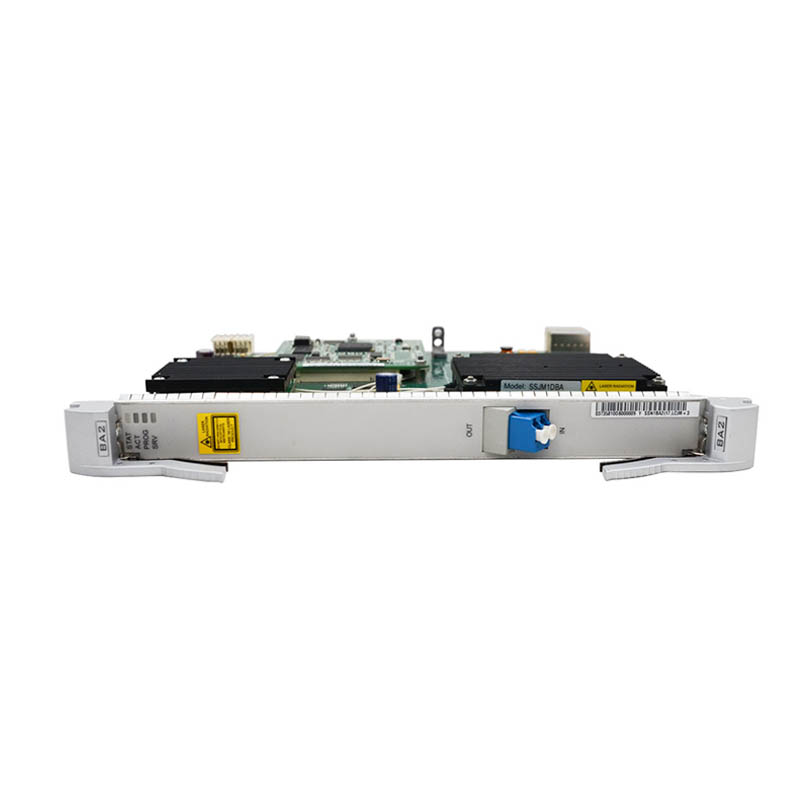

Huawei SSN1BA2(17/17,LC) Board Product Feature

• Huawei BA2 single board is an optical power amplifier board, which can amplify the power of 2 optical signals and increase the transmit optical power of the circuit board to +13dBm ~ +15dBm or +15dBm ~ +18dBm, so that the transmission distance can reach 120km or more than 130km (G.652 fiber, loss is calculated as 0.275dB/km).
• Support EDFA
• Support the automatic control of the laser temperature of the EDFA (Erbium-Doped Fiber Amplifier) module and the automatic control of the optical power; support the automatic monitoring of the input and output optical power of the EDFA module and the optical power query;
• Support the protection function of EDFA module. When there is no input light, the laser is automatically turned off, and when the input light is restored, the laser is automatically turned on.

Huawei SSN1BA2(17/17,LC) Board is a 2-channel optical power amplifier board, which completes the optical signal amplification function and is suitable for long-distance optical fiber transmission. When the optical signal is transmitted over a long distance, the signal attenuation is high. In order to make the optical receiver receive the normal optical signal, an optical power amplifier (BA) is required.

OSN 1500B: the SSN1BA2(17,LC) can be installed in slots 11–13.

OSN 2500: the SSN1BA2(17,LC) can be installed in slots IU2, IU4, IU6, IU8, IU10, IU12.

OSN 3500: When the cross-connect boards are IXCS and SXCA: the SSN1BA2(17,LC))can be installed in slots 1–8 and 11–17.

OSN 7500: The BA2 can be installed in slots 1–8, 11–18, and 26–31.

Product Details

Our Advantages

We have Huawei SSN1BA2 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Huawei SSN1BA2, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Huawei SSN1BA2 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
