HUAWEI SSN3GSCC 03020DCM for huawei optix OSN3500 GSCC board
Product Description

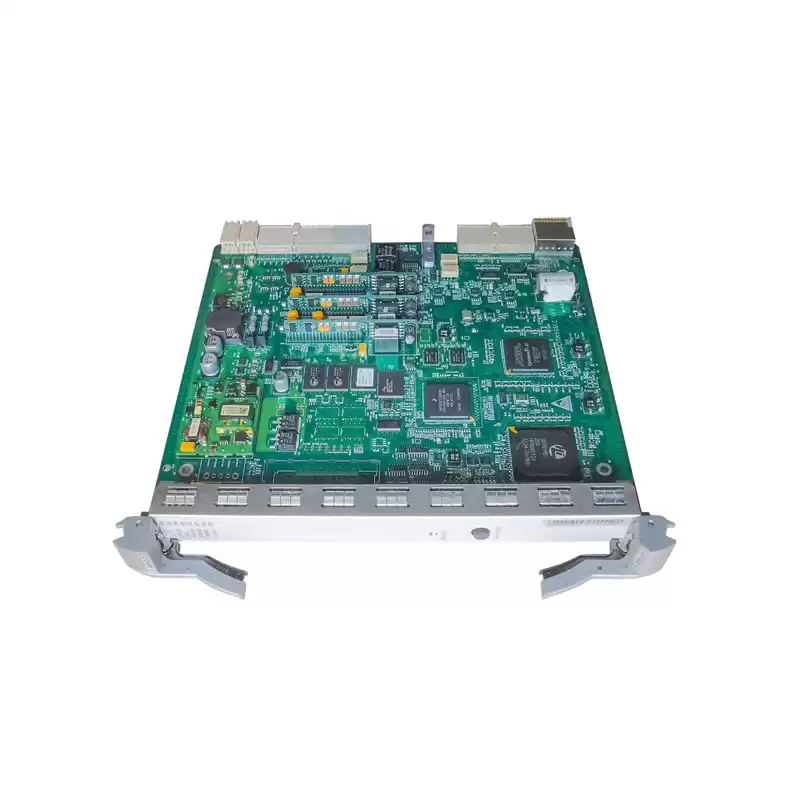

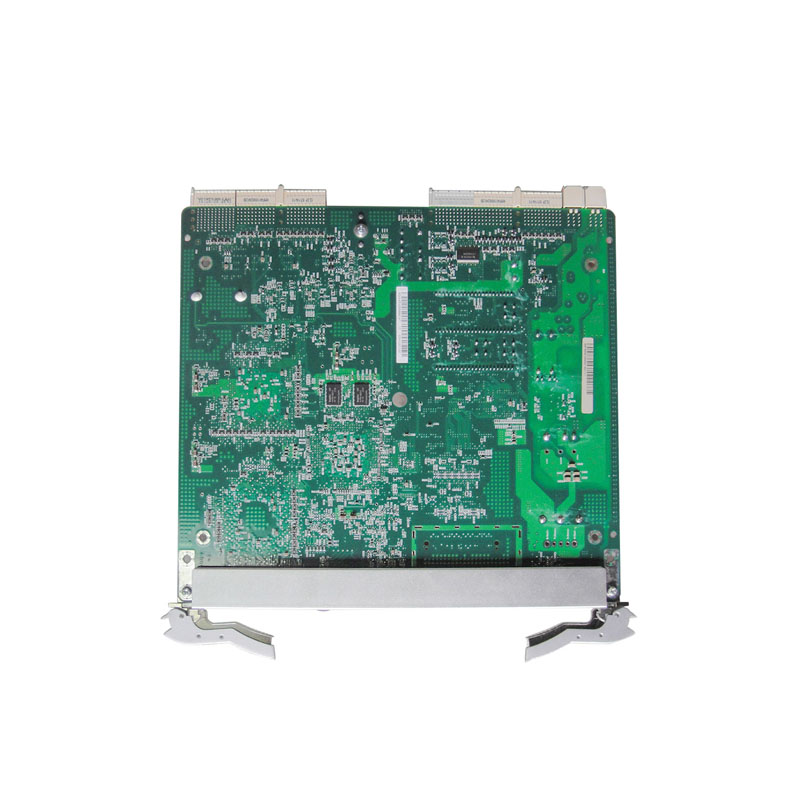

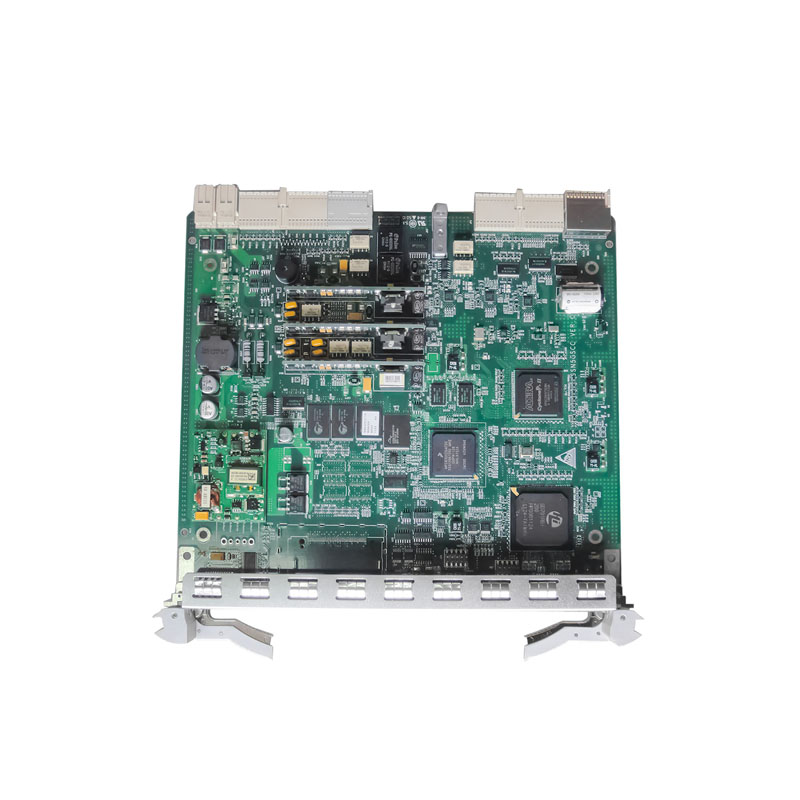

Huawei SSN3GSCC Board Product Overview
Huawei SSN3GSCC Board system’s main control board (referred to as GSCC for short) cooperates with the network management system to manage the individual boards of the device to achieve mutual communication between the devices.
Huawei SSN3GSCC Board supports functions and features such as main control, official services, communications, and system power monitoring. The GSCC board consists of a communication and control module, an overhead processing module, and a power module.
The main functions of the control and communication module are to realize the control and management of the board, network element communication, and network management functions:
Huawei SSN3GSCC Board completes communication with each board in the subrack, manages each board in the subrack and monitors performance alarms, collects status information of other functional modules, and performs corresponding management operations.
System Control and Communication Board
Apply to the OptiX OSN 3500, OSN7500
Supports channel types of D1-D1, D1-D3, and D4-D12.
Processes the E1, E2, F1, and serial1–4 bytes.
Supports the monitoring of the –48 V or –60 V power supply.
Supports the in-service check function and the failure check function.
Supports the 1+1 Hot Backup for the SCC Unit protection schemes.
Supports one channel of ECC communication.
Supports service performance monitoring and collects information about performance events and alarms.
It provides 16 alarm inputs and four alarm outputs through the AUX.
Controls the four cabinet indicators through the AUX.
Supports intelligent fan speed control and manages fan alarms.
Supports simulation package loading and diffused loading.
Product Details
Our Advantages
We have HUAWEI SSN3GSCC for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI SSN3GSCC, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI SSN3GSCC represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
