Huawei SSN3SL16A Board

Product Description

Huawei SSN3SL16A Board Product Overview

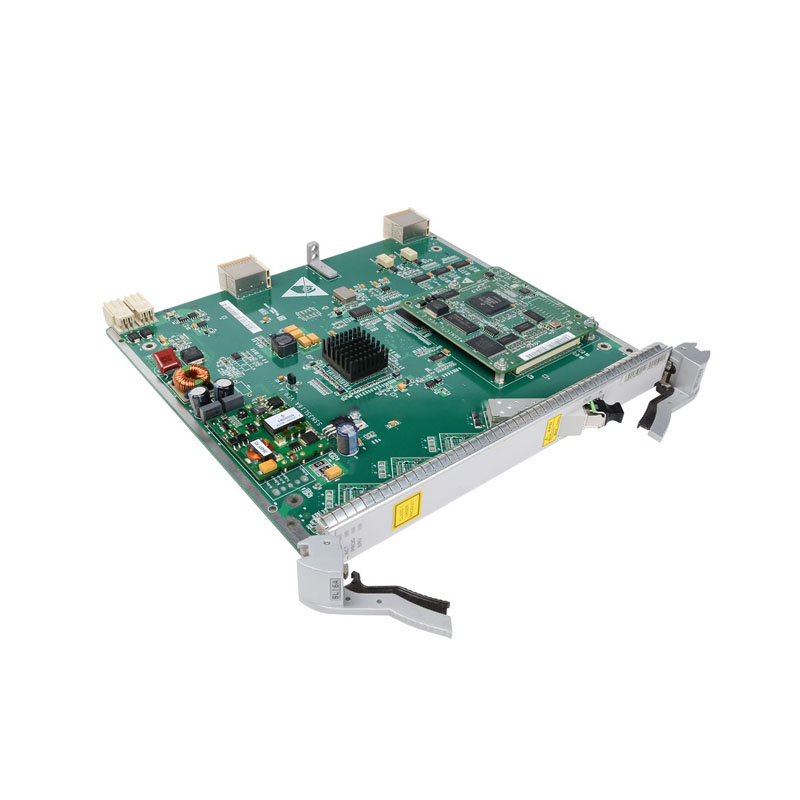

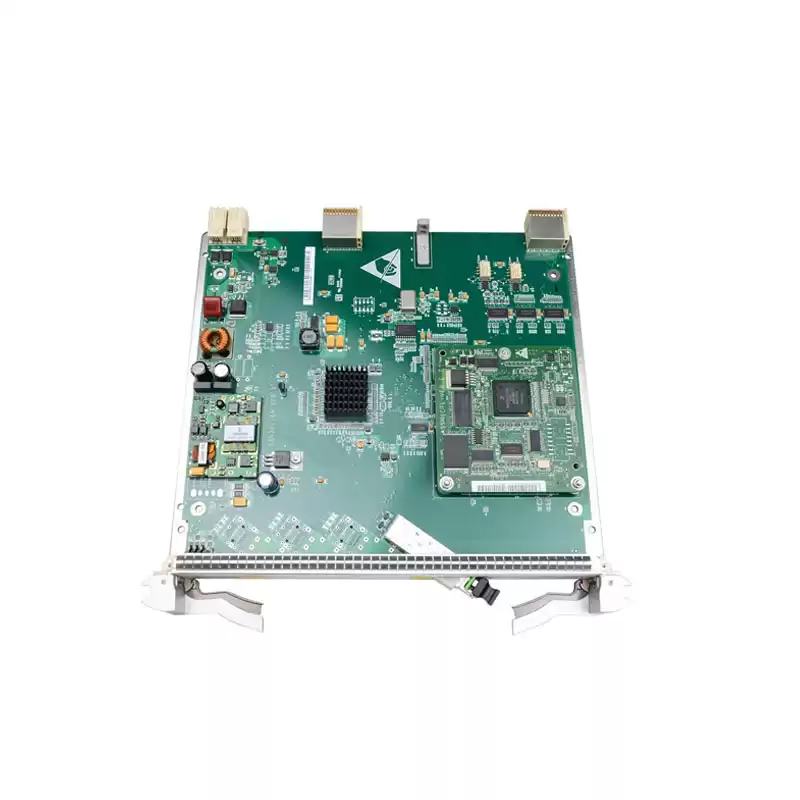

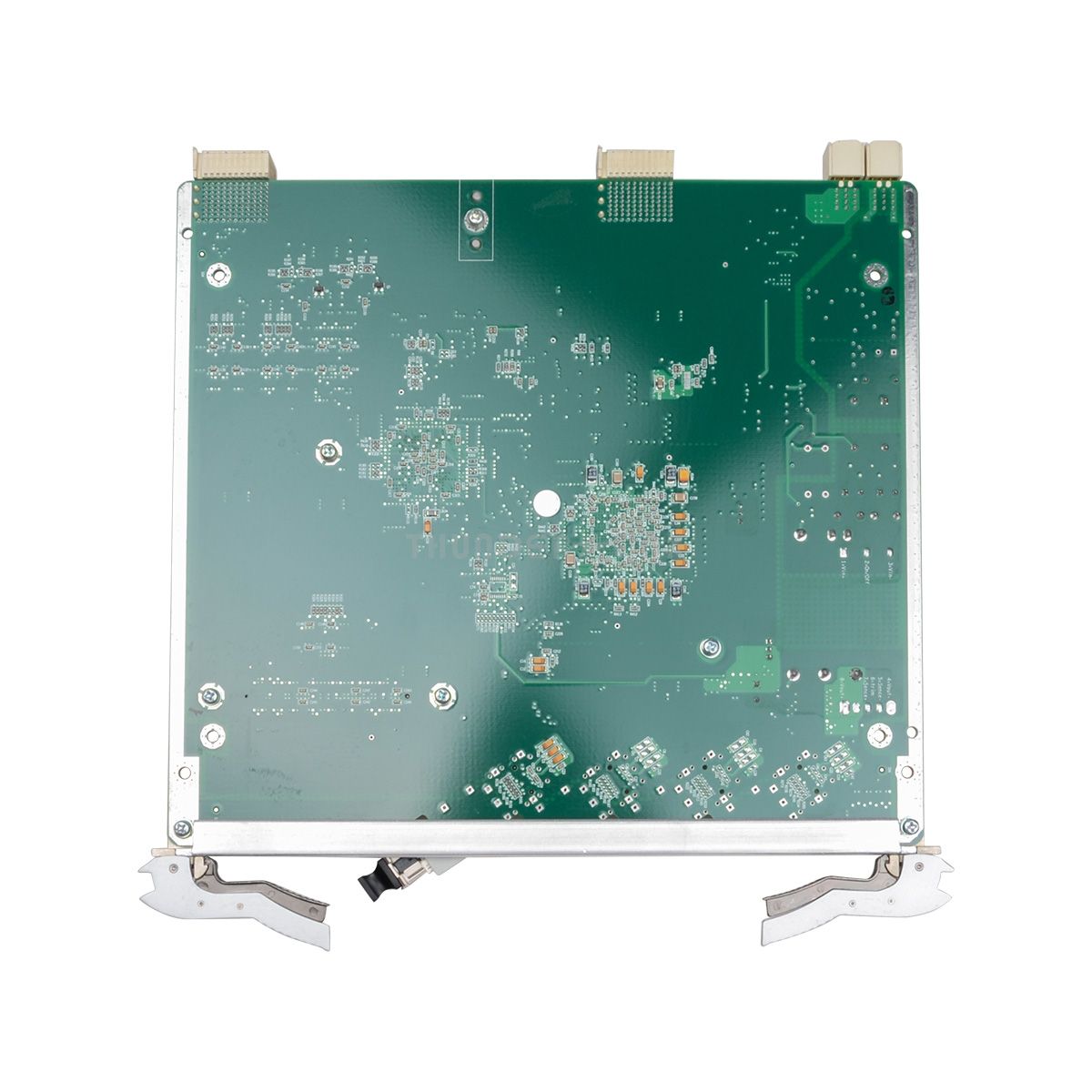

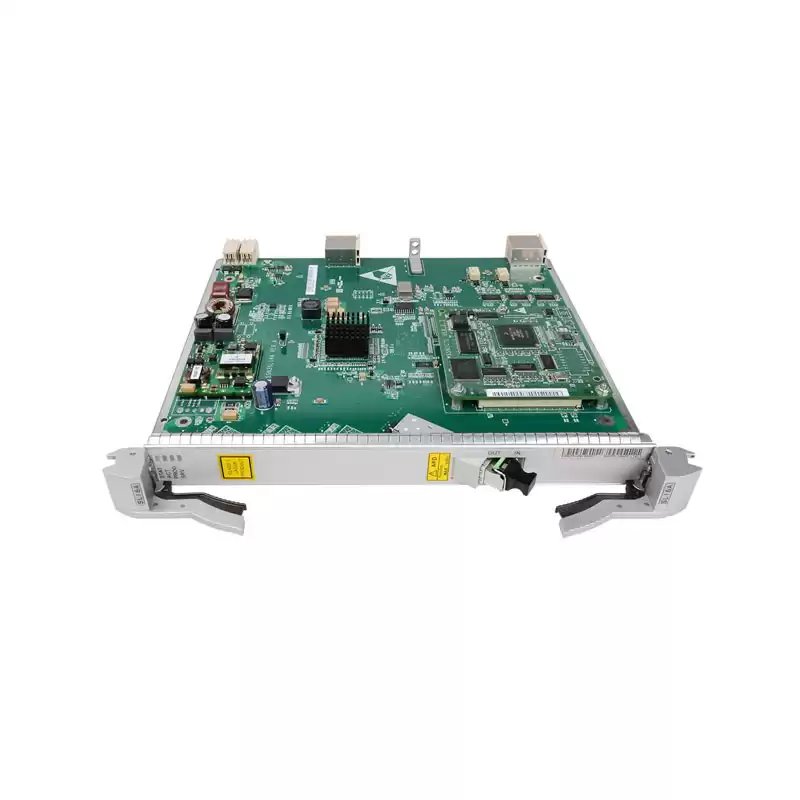

Huawei SSN3SL16A Board is an optical interface board, which can be used on the OptiX OSN7 500 / OSN3500 / OSN2500 / OSN1500 series equipment to realize the reception and transmission of one STM-16 optical signal. Through this board, Huawei SL16A sends the received optical signals to the cross-side after 0 / E conversion, and at the same time, the cross-side electrical signals are sent after E / O conversion. The SDH line board can form a ring network or a chain network with the SLD16 and SLQ16 optical boards in the system.

The Huawei SL16A board consists of a photoelectric conversion module, a MUX / DEMUX module, an SDH overhead processing module, a logic control module, and a power module.

Huawei SSN3SL16A Board Product Feature

Supports optical loop-level inner loopback and outer loopback functions.

Supports VC-4 channel inner loopback function; SSN3SL16A supports VC-4 channel inner loopback function and outer loopback function.

Supports soft reset and hard reset. Soft reset does not affect services.

Support query function of single-board manufacturing information.

Support FPGA online loading function.

N2SL16A and N3SL16A support TCM function.

Supports the smooth upgrade of single-board software.

Support PRBS function.

Supports one-click data collection.

SSN3SL16A(L-16.1,LC) is a 1-port STM-16 optical interface board, can be used on Huawei OSN1500, OSN 2500, OSN 3500, OSN7500. SSN3SL16A(L-16.1,LC) part number is 03052446, model name is SSN3SL16A03, SSN3SL16A08.SSN3SL16A(L-16.1,LC) comes with 1 unit L-16.1 SFP module, transmission distance is 40km. SFP module is swappable to perform different transmission distance.

Product Details

Our Advantages

We have Huawei SSN3SL16A for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

Huawei SSN3SL16A , like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

Huawei SSN3SL16A  represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
