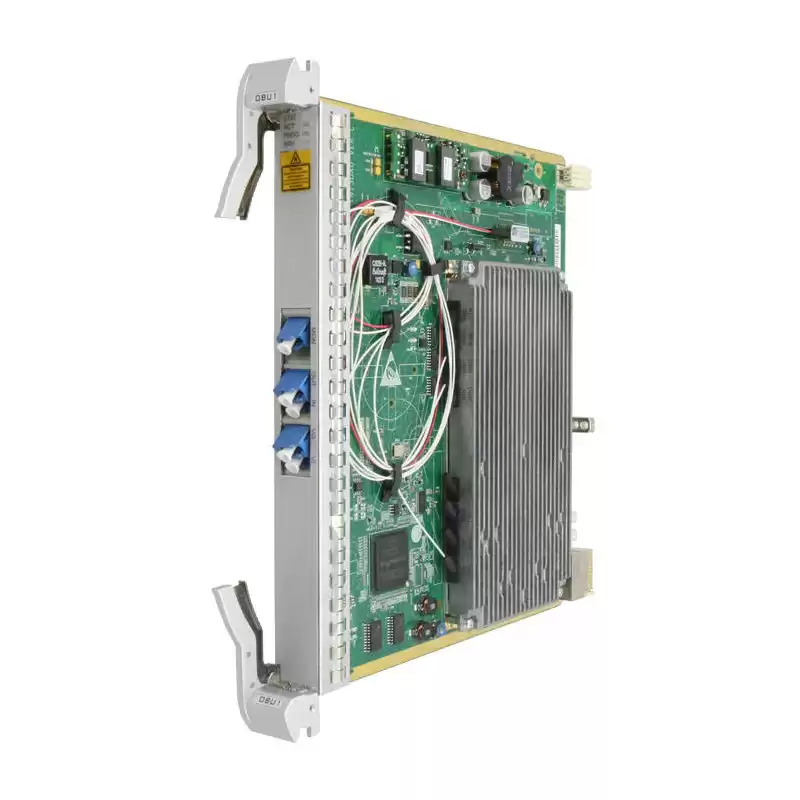

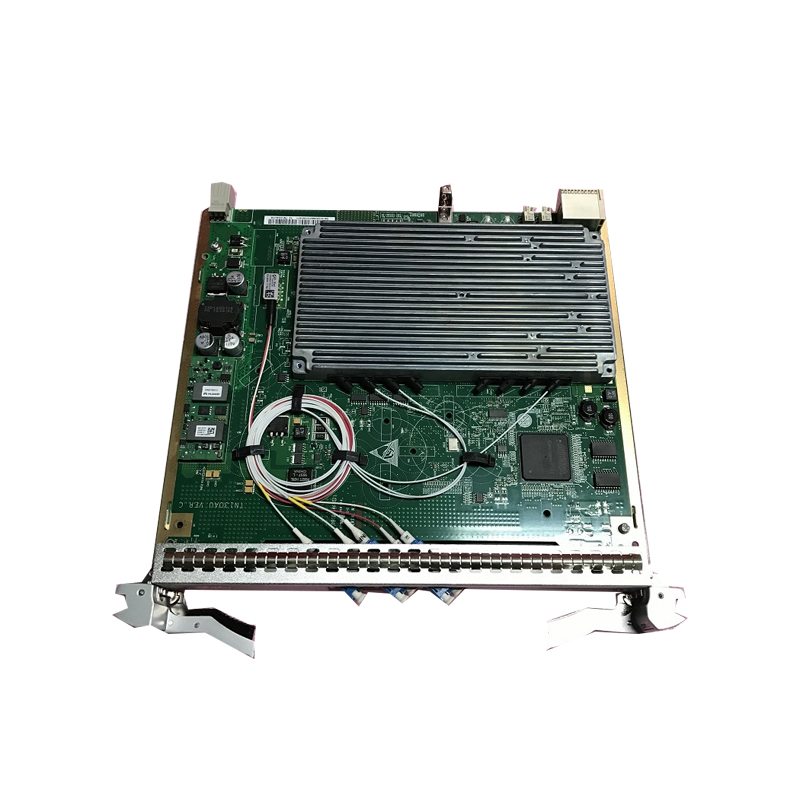

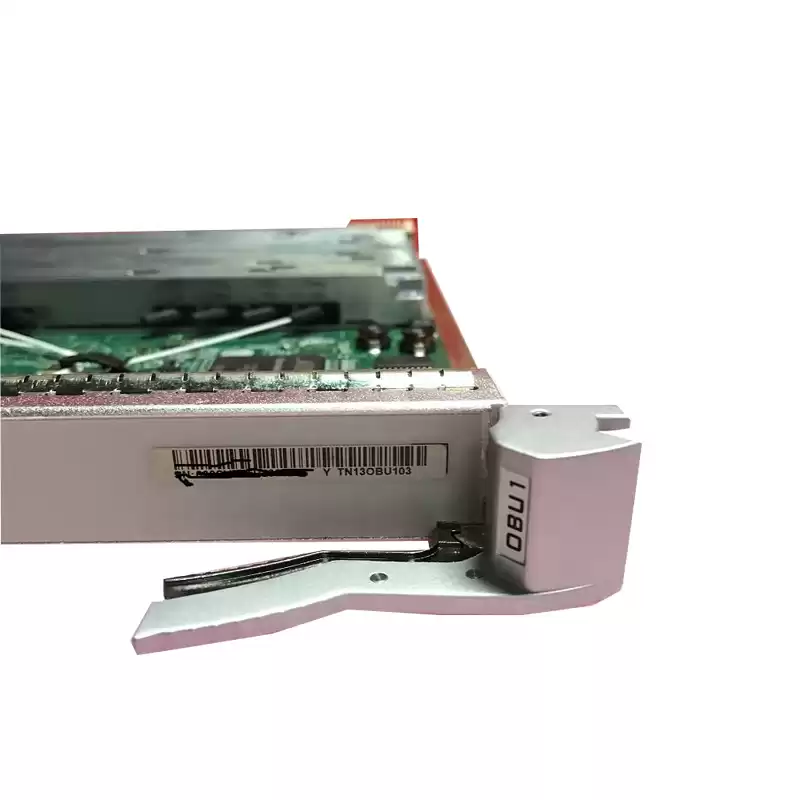

Huawei TN120BU103 Optical Amplifier card OBU1 Card
Product Description
C-BAND optical booster unit (MAX -3dBm IN and 20dBm OUT, Gain 23 dB), apply to Huawei OSN6800 and OSN8800.
The total wavelengths range from 1529 nm to 1561 nm.
Can be substituted by TN13OBU103 without any software upgrade.
Supports the system to transmit services over different fiber spans without electrical regeneration.
Provides an in-service monitoring port (MON).
Supports the gain locking and power locking modes.
The EDFA inside the board has the transient control function.
Detects and reports the optical power.
Monitors the temperature of the pump laser.
Detects the pump driving current, back facet current, pump cooling current.
Detects temperature of the pump laser and the ambient temperature of the board.
Supports Optical-layer ASON.
TN12OBU103 is a WDM optical booster board applied to Huawei OSN6800 and OSN8800, to amplify C band optical signals at Gain Range 23±1.5dB
Product Details
Our Advantages
We have Huawei OBU1 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei OBU1, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei OBU1 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
