HUAWEI TN52UXCM 03021KSK OptiX OSN 8800 Main Equipment
Product Description

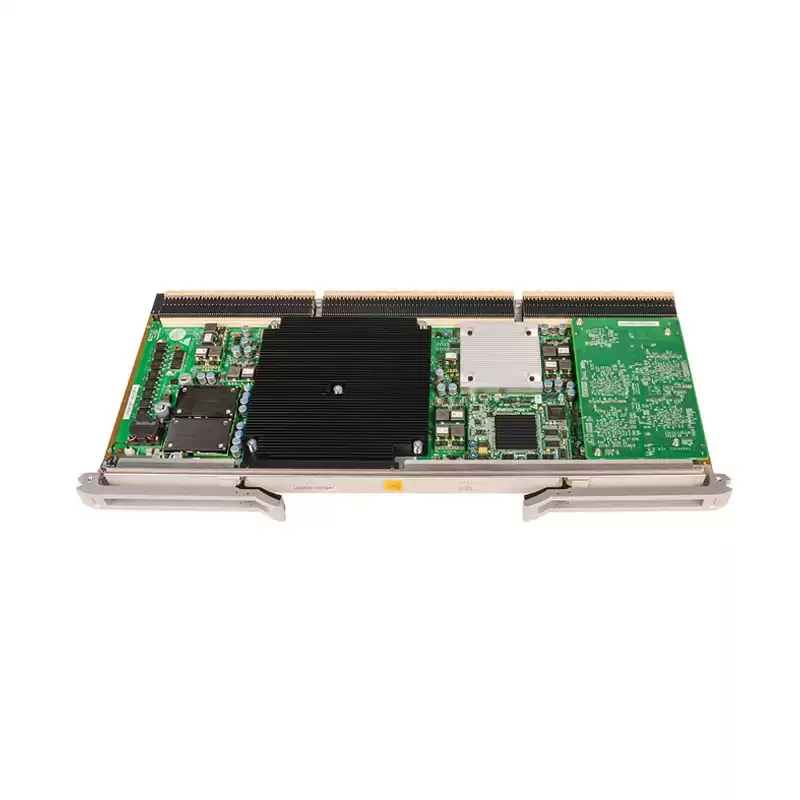

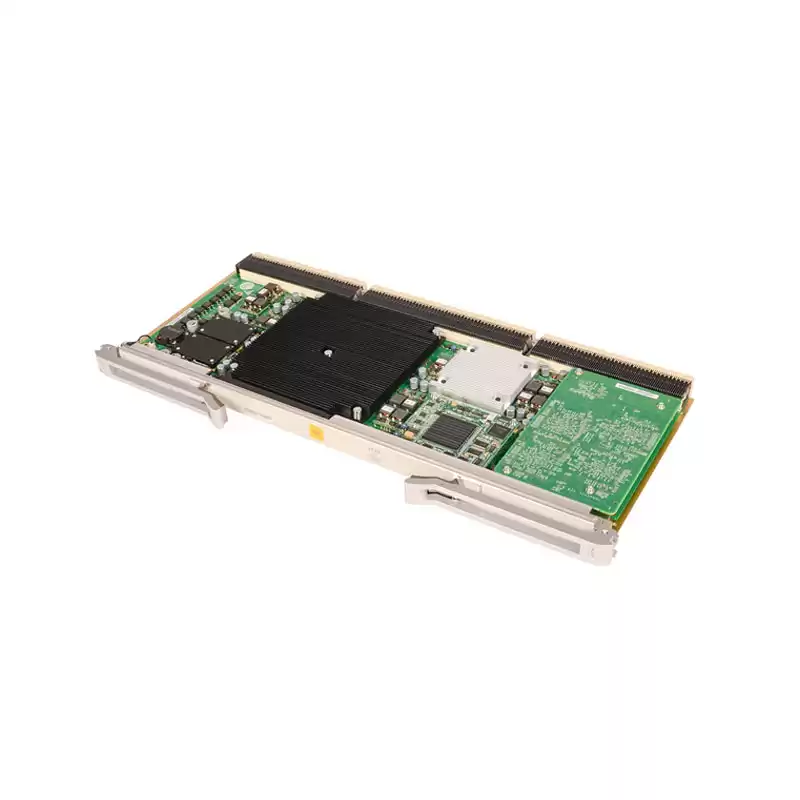

TN52UXCM is a universal cross connect board applied to Huawei OSN8800 T32, with cross-connect capacity of 3.2T, ODUk, Packet, VC4&VC12. TN52UXCM part number is 03021KSK, and it has only one functional version TN52.
3.2T universal cross connect board (ODUk, PKT, VC4&VC12) on Huawei OSN8800 T32.
Enhanced OptiX OSN 8800 T32 subrack:
Cross-connects a maximum of 3.2 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4or flex) signals.
Performs packet switching of a maximum of 1.6 Tbit/s Ethernet services.
Cross-connects a maximum of 1.28 Tbit/s VC-4 signals.
Cross-connects a maximum of 80 Gbit/s VC-3/VC-12 signals.
Supports hybrid transmission of the above-mentioned services with the maximum cross-connect capacity of 3.2 Tbit/s.
General OptiX OSN 8800 T32 subrack:
Cross-connects a maximum of 2.56 Tbit/s ODUk (k = 0, 1, 2, 2e, 3, 4 or flex) signals.
Performs packet switching of a maximum of 640 Gbit/s Ethernet services.
Cross-connects a maximum of 1.28 Tbit/s VC-4 signals.
Cross-connects a maximum of 80 Gbit/s VC-3/VC-12 signals.
Supports hybrid transmission of the above-mentioned services with the maximum cross-connect capacity of 2.56 Tbit/s.
Supports cross-connection 1+1 protection.
Provides 1+1 hot backup.
Provides 1+1 warm backup.
Supports the manual switching and auto switching.
Supports the non-revertive switching.
Supports electrical-layer ASON.
Product Details
Our Advantages
We have Huawei TN52UXCM for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
Huawei TN52UXCM, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
Huawei TN52UXCM represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
