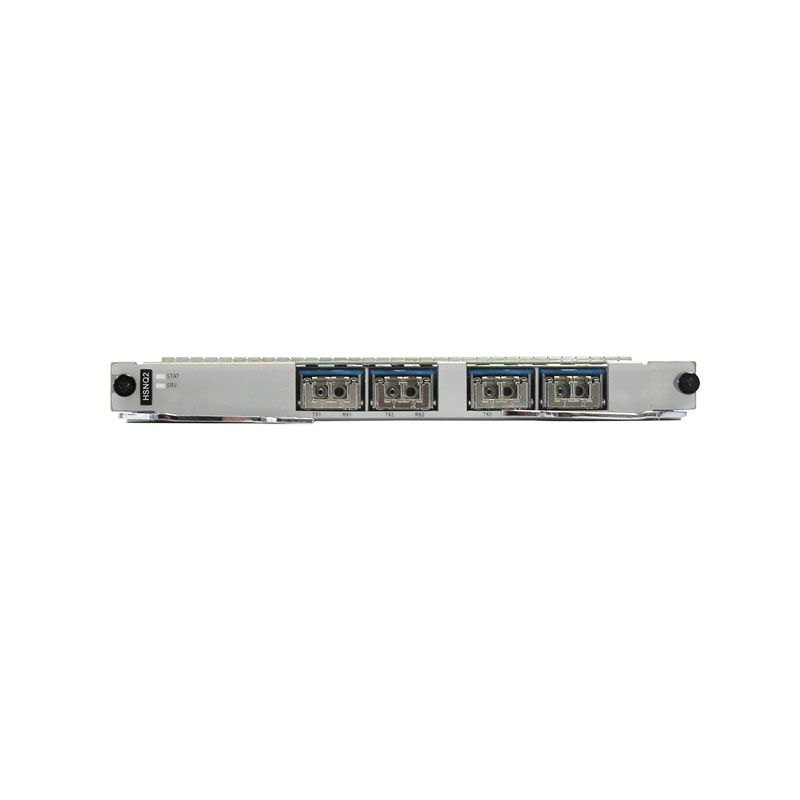

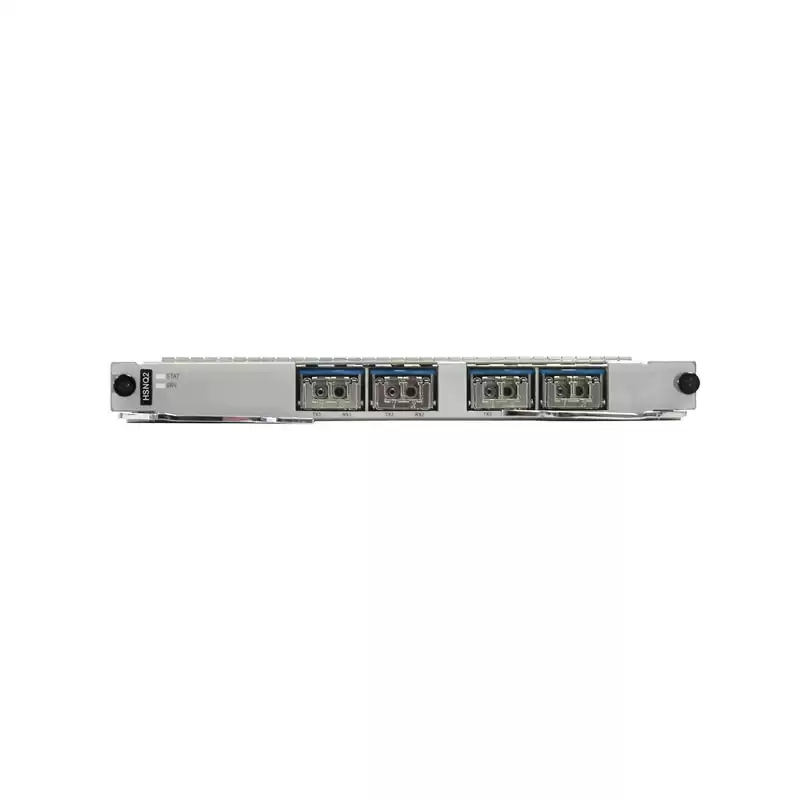

HUAWEI TNF5HSNQ2 OSN1800V 4-port 10G Universal Line Service Processing Board

Product Description

TNF5HSNQ2 is a 4-port 10G universal line service processing board applied to Huawei OSN 1800 II Enhanced, OSN 1800V. The HSNQ2 board is a universal line board and supports hybrid transmission of ODU0, ODU1, ODU2, ODU2e, ODUflex, VC-12, VC-3, and VC4 with the total bandwidth not exceeding 40 Gbit/s (the total bandwidth of SDH services does not exceed 20 Gbit/s). The HSNQ2 board processes and converts the received service signals into four OTU2/OTU2e signals, which are carried over four ITU-T G.694.1-compliant DWDM wavelengths.

TNF5HSNQ2 4-port 10G universal line service processing board

Applied to Huawei OSN 1800V

Supports OTN and SDH service, and functions such as OTN ports, and SDH overhead processing.

Supports Intra-Board 1+1 Protection, Tributary SNCP, ODUk SNCP (k = 0, 1, 2, or flex)

Supports Physical Clocks (ODU0/ODU1/ODUflex)

Supports ESC communication

Supports Electrical-layer ASON

Supports inloops and outloops on VC-4 paths.

Product Details

Our Advantages

We have HUAWEI TNF5HSNQ2 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.

HUAWEI TNF5HSNQ2, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.

HUAWEI TNF5HSNQ2 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
