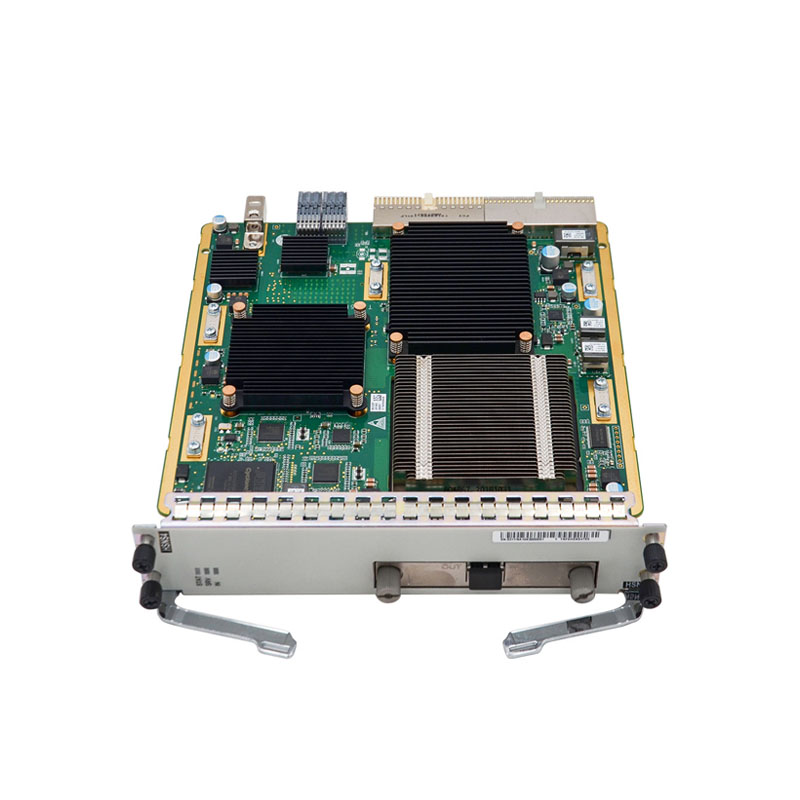

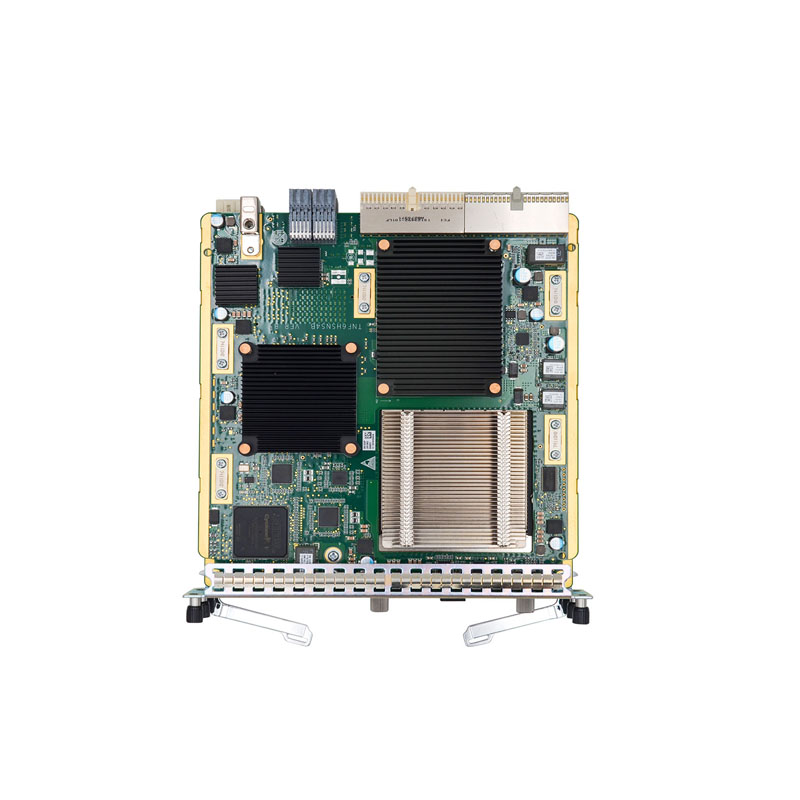

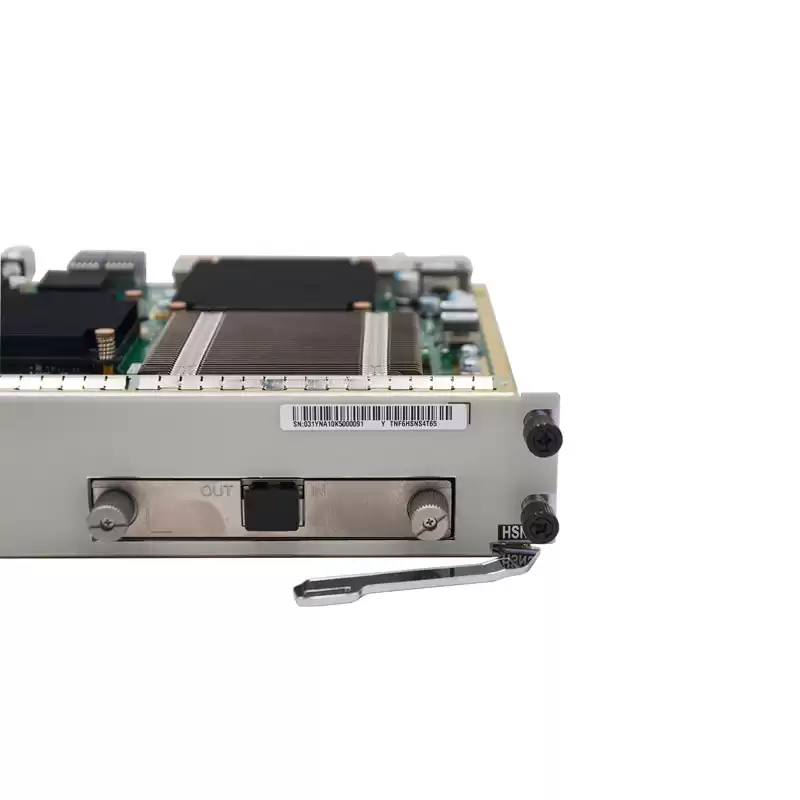

HUAWEI TNF6HSNS4T65 OSN1800 1-port 100G Service Processing Board
Product Description
Huawei TNF6HSNS4T65 HSNS4 03031YNA 1 x 100G Universal Line Service Processing Board OSN 1800
The Huawei OptiX OSN1800 is a series of box architecture Multi-Service Optical Transport Network (MS-OTN) transmission equipment that supports Time Division Multiplexing (TDM), packet, and Optical Transmission Network (OTN) services over a metro or campus optical network. This equipment enables multiple high-bandwidth services (from 2 Mbit/s to 100 Gbit/s) to be delivered at less cost.
|
Specifications
|
OSN 1800 I Enhanced
|
OSN 1800 II
|
OSN 1800 II Enhanced
|
OSN 1800 V
|
|
Dimensions
(H x W x D)
|
44 mm x 442 mm x 220 mm
|
88 mm x 442 mm x 220 mm
|
88 mm x 442 mm x 220 mm
|
221 mm x 442 mm x 224 mm
|
|
Number of Service Slots
|
2 slots per cabinet (DC)
1 slots per cabinet (AC)
|
7 slots per cabinet (DC)
5 slots per cabinet (AC)
|
6 slots per cabinet (DC)
|
15 slots per cabinet (DC)
12 slots per cabinet (AC)
|
|
Cross-connect Capability
|
OTN: 40G ODUk (k=0/1/2/2e/flex)
Packet: 120G
SDH: 40G (high-order), 5G (low-order)
|
N/A
|
OTN: 200G ODUk (k=0/1/2/2e/flex)
Packet: 160G
SDH: 50G (high-order), 20G (low-order
|
OTN: 700G ODUk (k=0/1/2/2e/flex
Packet: 700G
SDH: 280G (high-order), 40G (low-order)
|
|
Number of Wavelengths (maximum)
|
* DWDM: 80 wavelengths
* CWDM: 8 wavelengths
|
|
Installation Rack
|
19-inch to 23-inch rack, ETSI 300 mm or 600 mm rack
|
Product Details
Our Advantages
We have HUAWEI TNF6HSNS4T65 for sale, including refurbished and new ones, and the price is usually 90% lower than the original supplier's price. Our super fast turnaround time and high-quality inventory all over the world mean that we can accurately deliver the products replaced on the same day to the place where they are needed, and minimize network downtime.
HUAWEI TNF6HSNS4T65, like all our hardware, takes comprehensive warranty as the standard. Whether you need new products or renovated products, we only purchase green market equipment of the highest quality and environmental protection. All these are provided at the best possible price, and a large amount of cost-effectiveness will be directly passed on to you.
HUAWEI TNF6HSNS4T65 represents only one product in our world-class hardware portfolio. The portfolio includes very well-known industry names, such as Nokia, Huawei, ZTE, Siemens, Nortel, Ericsson, Alcatel, Lucent, etc. We have a lot of inventory, thank you very much for sharing with customers.
