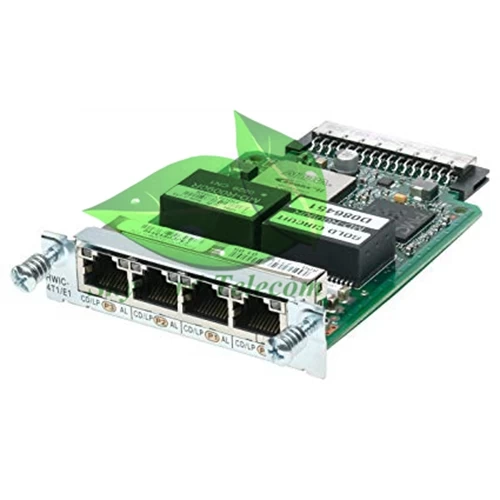

HWIC-4T1/E1 Overview
The Cisco 4-Port Clear Channel T1/E1 High-Speed WAN Interface Card provides n x T1/E1 connectivity in a compact form factor and reduces deployment and management costs for the Cisco 2800, 3800, 2900 and 3900 Series Integrated Services Routers.
As more data and voice services are enabled in branch offices, the demand for WAN bandwidth increases accordingly. Multilink Point-to-Point Protocol (PPP) and Multilink Frame Relay enable customers to scale their leased lines from single T1/E1 to multiples of T1/E1, adding bandwidth as their needs increase. The Cisco 4-Port Clear Channel T1/E1 High-Speed WAN Interface Card (HWIC) integrates four T1/E1 ports in a singlewide HWIC to facilitate n x T1/E1 connectivity in a compact form factor.
With the Cisco 4-Port Clear Channel T1/E1 HWIC with integrated channel service unit and data service unit (CSU/DSU), you can consolidate customer premises equipment (CPE). The modules support balanced and unbalanced E1 connectivity and conform to G.703 and G.704 standards for unframed and framed E1 modes. The module supports both T1 and E1 modes, selectable by software configuration.
HWIC-4T1/E1 Specification
|
Brand
|
Cisco
|
|
Part
number
|
HWIC-4T1/E1
|
|
Product
Description
|
4 port clear channel T1/E1 HWIC
|
|
Device Type
|
Expansion module
|
|
Form factor
|
Plug-in module
|
|
Interfaces/Ports
|
4 x RJ-48C T1/E1 WAN
|
|
Data Transfer Rate
|
1.54 Mbps T1
|
|
2.05 Mbps E1
|
|
Management
|
• Supported by Cisco WAN Access Performance Management System (WAPMS)
|
|
• Cisco CNS 2100 Series Intelligence Engine (IE2100)
|
|
• CiscoWorks
|
|
Relevant MIB Support
|
• RFC1406-MIB
|
|
• CISCO-ICSUDSU-MIB
|
|
Signaling Debugging
|
• ISDN Q.921 and Q.931 decode
|
|
• All other previously existing applicable Cisco IOS Software debugs
|
|
Dimensions (H x W x D)
|
1.91 x 7.82 x 12.04 cm
|
|
Weight
|
0.09kg
|
|
Warranty
|
One year
|
|
Lead
time
|
2-3 business days
|
|
Shipment
|
DHL, Fedex, Aramex, EMS or per
request
|
