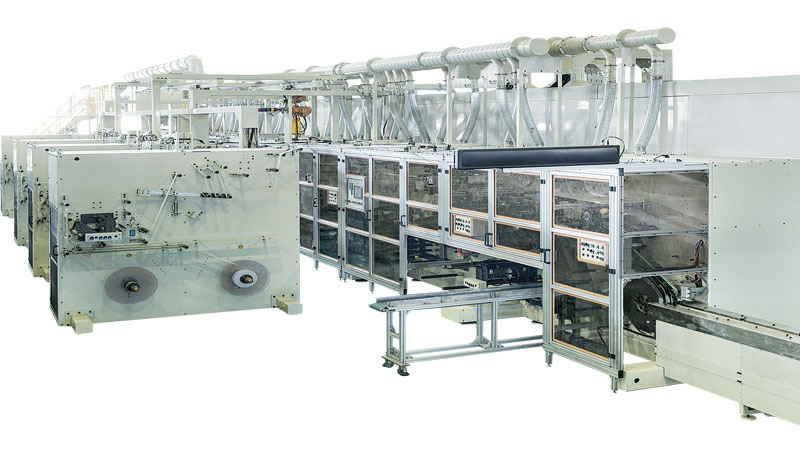

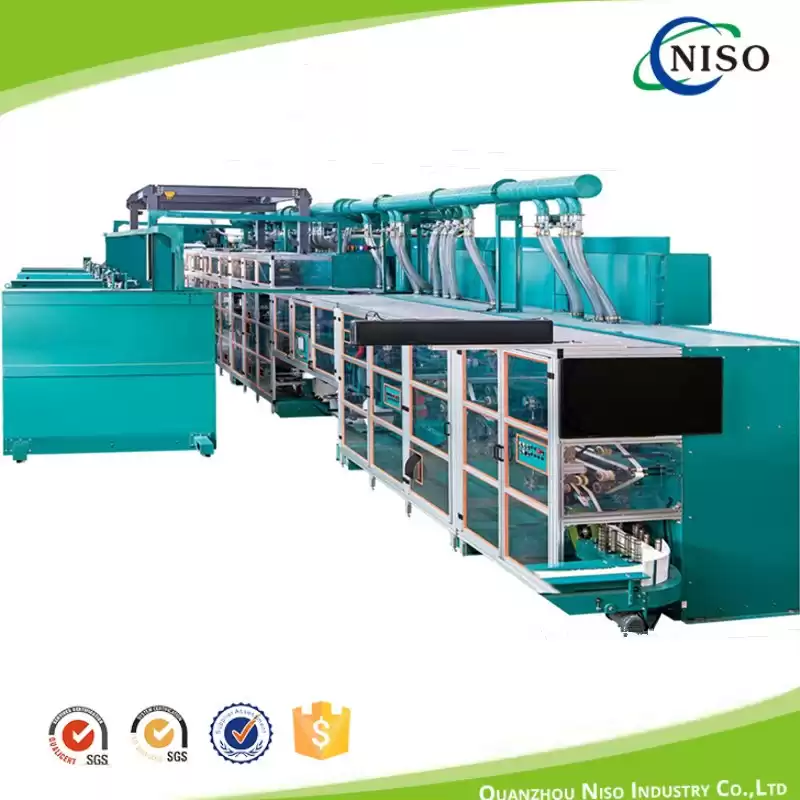

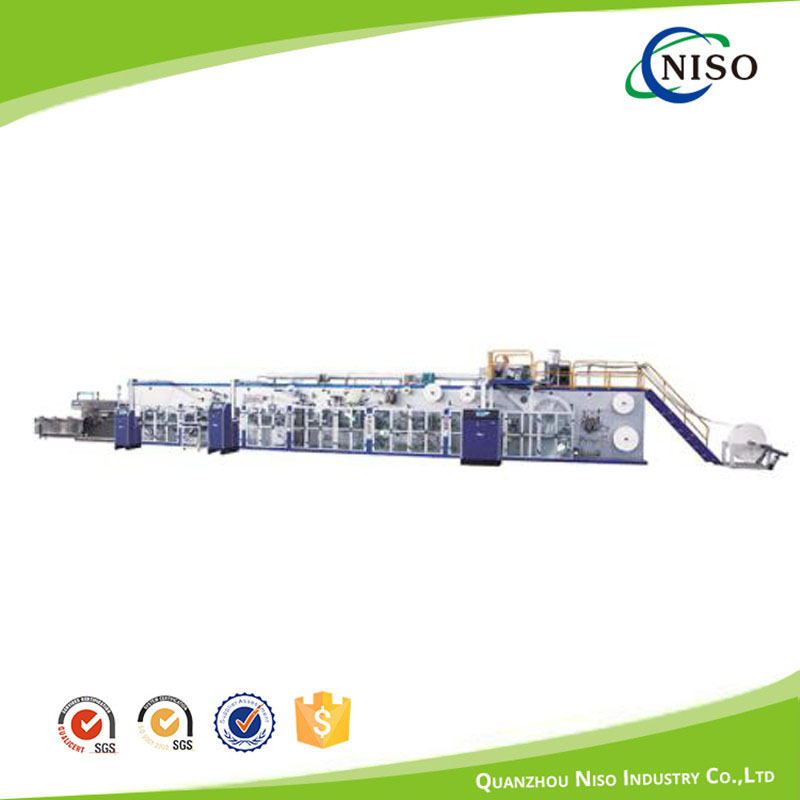

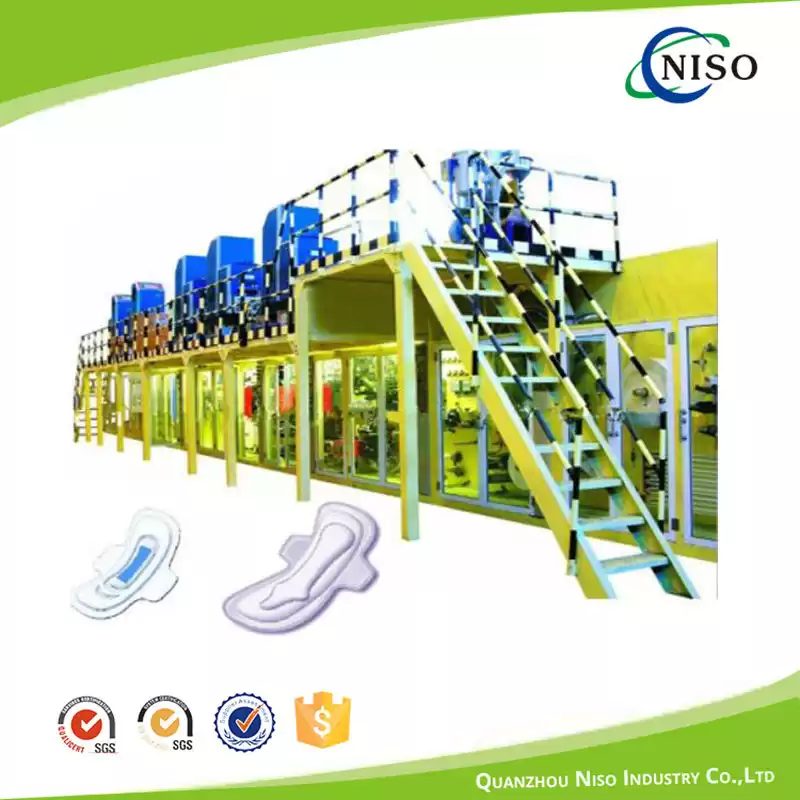

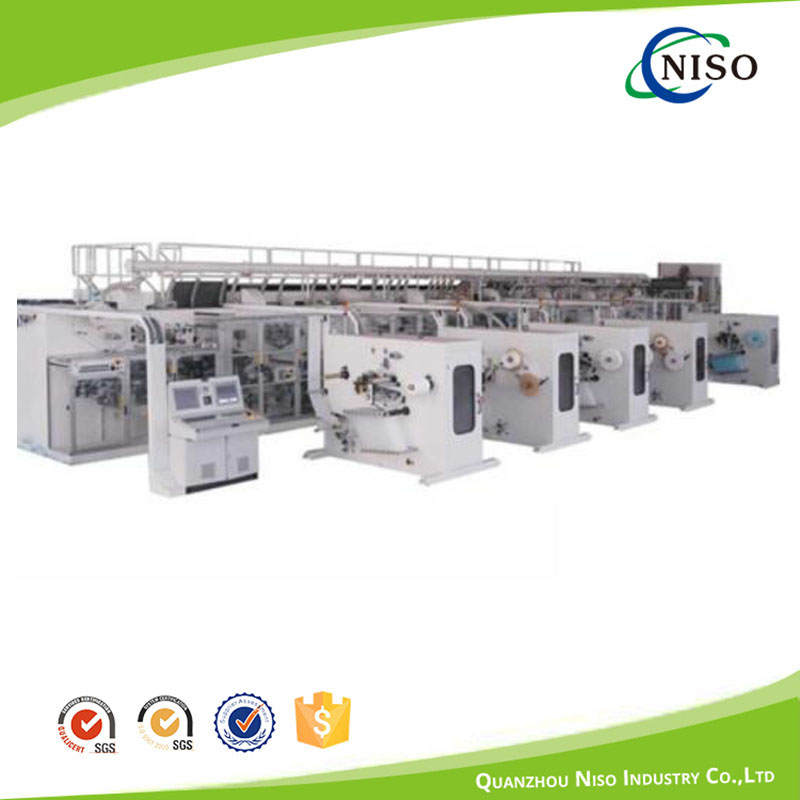

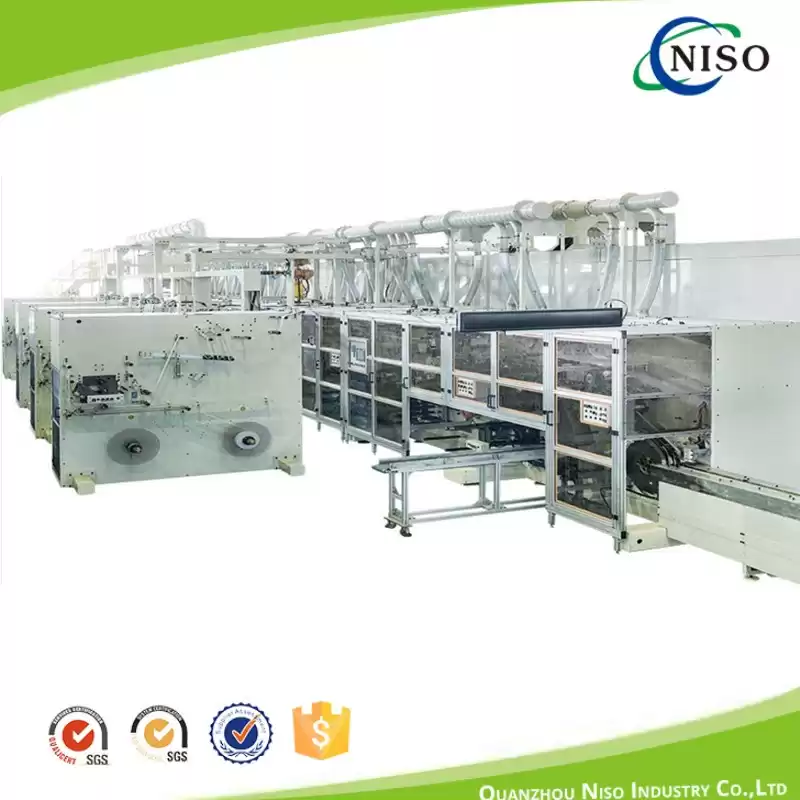

HY-600 Semi Servo Type Sanitary Napkin Machine

HY-600  semi servo type sanitary napkin machine is a full auto machine.The production size can be classic thick & ultra thin wing & straight.




HY-600 Semi Servo Type  Sanitary Napkin Machine


Sanitary Napkin Machine

Machine description


Machine details  Quantity
 HY-600 Semi servo type sanitary napkin machine  1 set
 Servo motor driving  1 set
 High speed crusher  1 set
 SAP feeding unit  1 set
 Web guider  11 sets
 Servo and Inverter motor Mitsubishi  1 set
 Waste raw materials collect unit  1 set

 Raw materials with auto unwinding, auto splicing,

auto  tension control, auto detective and auto rejection

 5 sets
 Safety door  1 set
 Simple push machine  2 sets
 Simple sealing machine  2 sets
 Glue applicators (Chinese brand)  3 sets
 Free spare parts (attachment list)  1 set

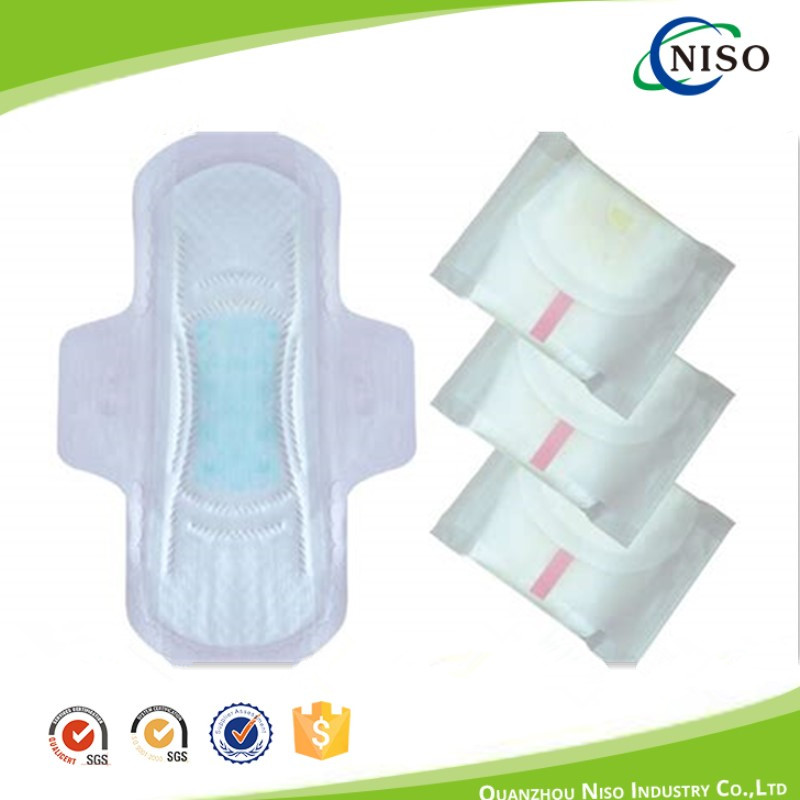

Product picture





Machine main parameters


Model  HY-600
 Name  Semi servo  type
Design speed 600 pcs/min
Working speed 500 pcs/min
Qualified rate

98(calculate based on 7.5 hours, the rate between qualified products and total

 production quantity, except substandard products caused by glue applicator error)

Production efficiency

90( calculate based on 7.5 hours, the rate between real production quantity and theory production quantity)

Capacity 180KW
Power Three phases four wires 380V±5%/50Hz  (ground wire)
Air pressure 0.6mpa, 1.8m3/min
Total weight About 30 tons
Machine size 25×5×3M (L×W×H)
Working space 25-30×7×5M  (L×W×H)
Machine color Customized
Product size Customized  ( 4 sizes)
Machine direction Customized
Container 40HQ
Finished product 2 sizes



Main Spare parts


Low-voltage apparatus Schneider France
Sensors Banner USA
Web guider KSC China
FIFE USA
BST USA
Touch screen Banner USA
PLC control system Mitsubishi Japan
Siemens Germany
AB      USA
Cutter material D2 USA
M7 USA
T15 USA
Temperature control system Omron    Japan
HB China
Bearing HRB China
NSK Japan
SKF Sweden
Timing belt OPTIBELT Germany
Gates USA
Conveying belt HABSIT Swaziland
Nitta Japan
Pneumatic system SMC Japan
AIRTAC Taiwan




About NISO


NISO is a professional raw materials and machine supplier for making baby diaper, adult diaper, feminine sanitary napkin,under pad and so on.

NISO covers an area of 5000 square meters, gets CE, ISO, SGS.

NISO exports more than1000 containers to Asia, Mid-east, Europe, South America, Africa countries.

NISO will be your consultancy and partner to reach win-win career together.


Quanzhou Niso Industry Co.,Ltd is your best choice for baby diaper machine, adult diaper machine, sanitary napkin machine and under pad machine in China.
