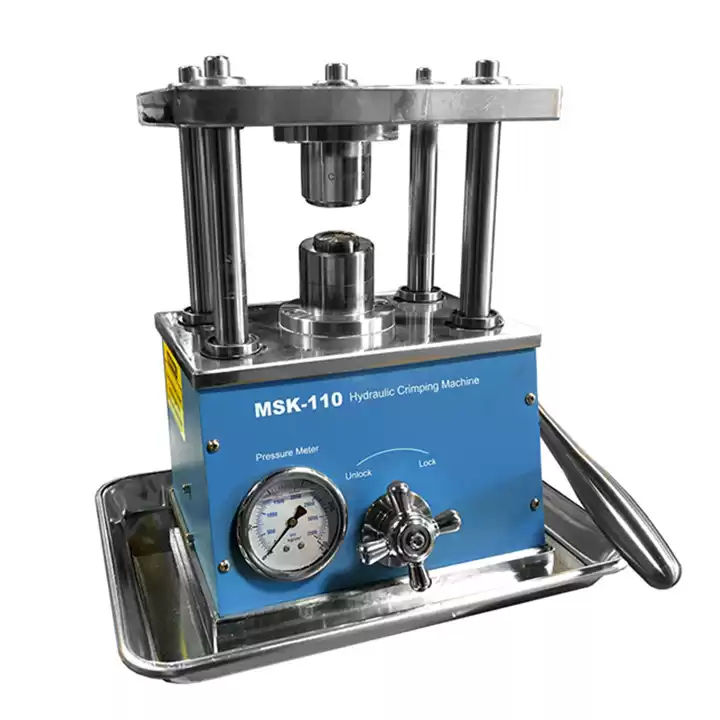

Hydraulic Crimper Crimping Machine for All Types of Coin Cells
TMAX-MSK 110 is a new design and CE Certified coin cell crimper with lighter weight and a smaller footprint. The crimper is suitable for sealing various types of coin cells such as CR2032,CR2025,and CR2016 with included die. It can also crimp CR2325, CR2450, AG3, AG5 and other special size cases with optional die sets. We also supply quality button cell crimper for you! Your satisfaction is our nice purpose!
|
Standard
Crimping Die
|
1 One set of crimping die for CR2032,CR2025,and CR2016
2 Optional die available from product option for crimping CR2325,CR2450,AG3,AG5
3 PTFE Anti-Corrosion Core prevents coin cells from being short circuited
|
|
Advantages
|
1 The lower die with high precision positioning ring spacing, control batteryseal height
2 The upper die is provided with a sealing cup inner screw spring mechanism,ensure in case the battery sealing clamp can not be removed,only the top screw clockwise and the button battery out.
3 By using aluminum alloy and high strength steel,
surface after the environmental protection electroplating processing
will never rust
|
|
Rocker Pressure
|
<6kg
|
|
Max Pressure
|
200kg/cm2
(The hydraulic drive pressure up to 8T, the battery sealing no
vibration, no leakage)
|
|
Working Pressure
|
80-100kg/cm2
|
|
Dimension(L*W*H)
|
232*170*330mm
|
|
Weight
|
28kg
|
|
Shipping Weight
|
35kg
|
|
Warranty
|
Two Year limited warranty with lifetime support
|
|
Reference Pictures
|
1. Adjusted sealing die for CR2016，2015,2032 coin cell
2. Optional die for other model battery and PTFE Anti-Corrosion Core
|
