Hydraulic D2 piston polyurethane seal
Piston seals are working to seal in fluid, thus preventing the flow of fluid across the piston, allowing pressure to build up on one side of the piston.

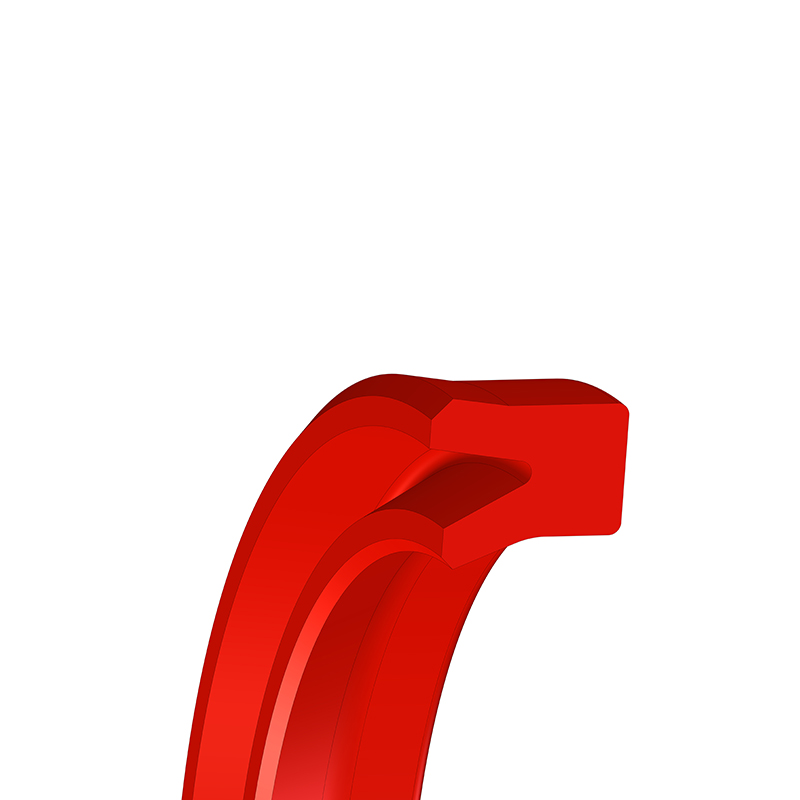

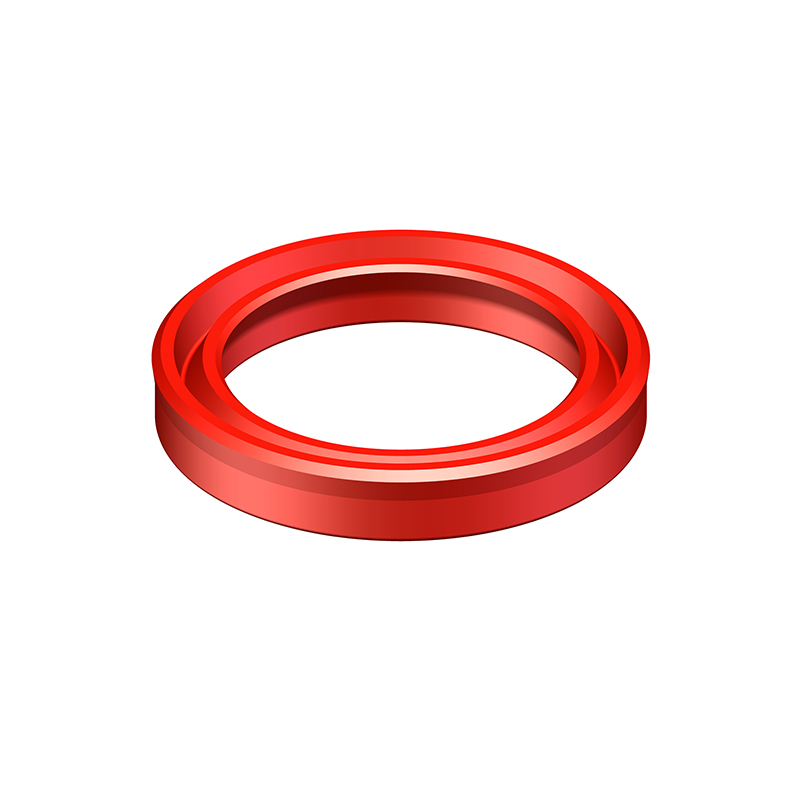

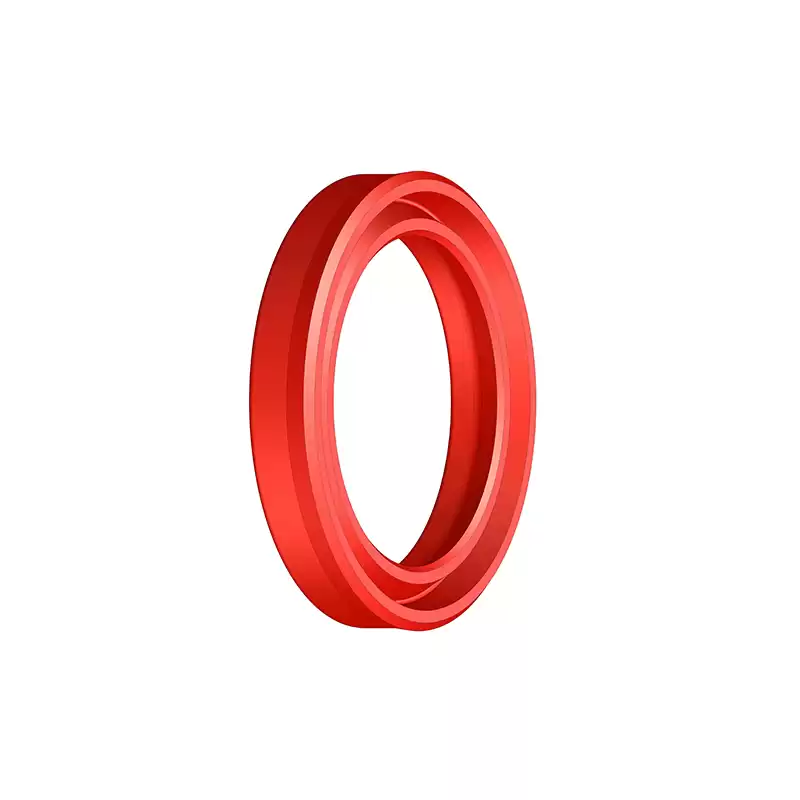

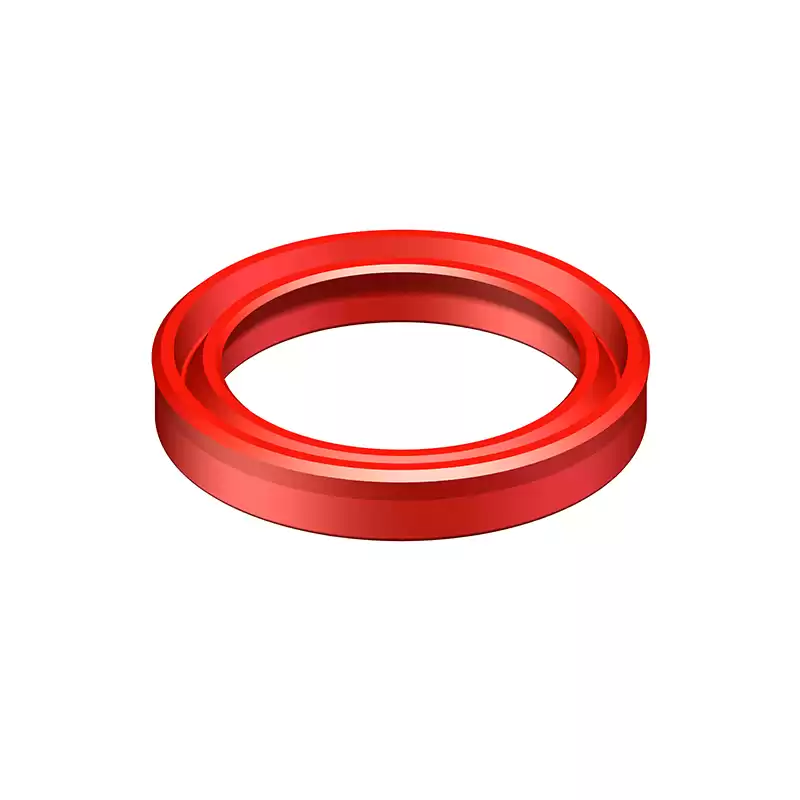

D2 seal is a single acting piston seal out of injection molded polyurethane.

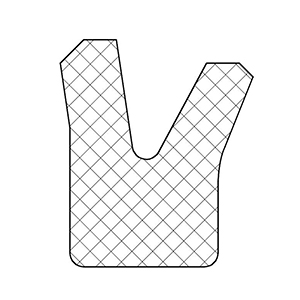

It is provided with a robust dynamic sealing lip and a wide contact area of the static lip, which guaranties an effective positionling in the groove.
|
Advantages:
1. Simple groove design
2. High abrasion resistance
3. Long service life
4. Effective sealing effect even with non excellent mating surface finish
5. Easy installation.
Size:
20-332mm
|
Working Conditions
|
Temperature range
|
Media
|
Pressure
|
Speed
|
-35~+100℃
|
Mineral oil based hydraulic fluids
|
40
|
≤0.5m/s
|
